BT UPS Enterprise SNMP Agent
Issued by: BT
Version no: 6.1
Date: March 2019
Netagent UPS provides HTTP/HTTPS(WEB) and Telnet to reference any related parameter
setting for the manager. Concerning with security, the manager could build use openly or
any advance port setting methods. Followings are the description:
1. At advanced setting, two functions were set as activated by using port number 80 and 23 for
Http and Telnet. As for Https and SSH are 443 and 22.
2. Untick means not using the function.
1. When set to the other port value, full IP Address must be entered in order to
login to the website or Telnet.
For example,
• Set 81 as HTTP port number, then http://192.168.0.177:81 must be
typed at the web address to proceed to Netagent UPS’s website.
• Set 23 as Telnet port number, then "192.168.0.177:24" must be typed at
Telnet to proceed to the Telnet screen of NetAgent UPS.

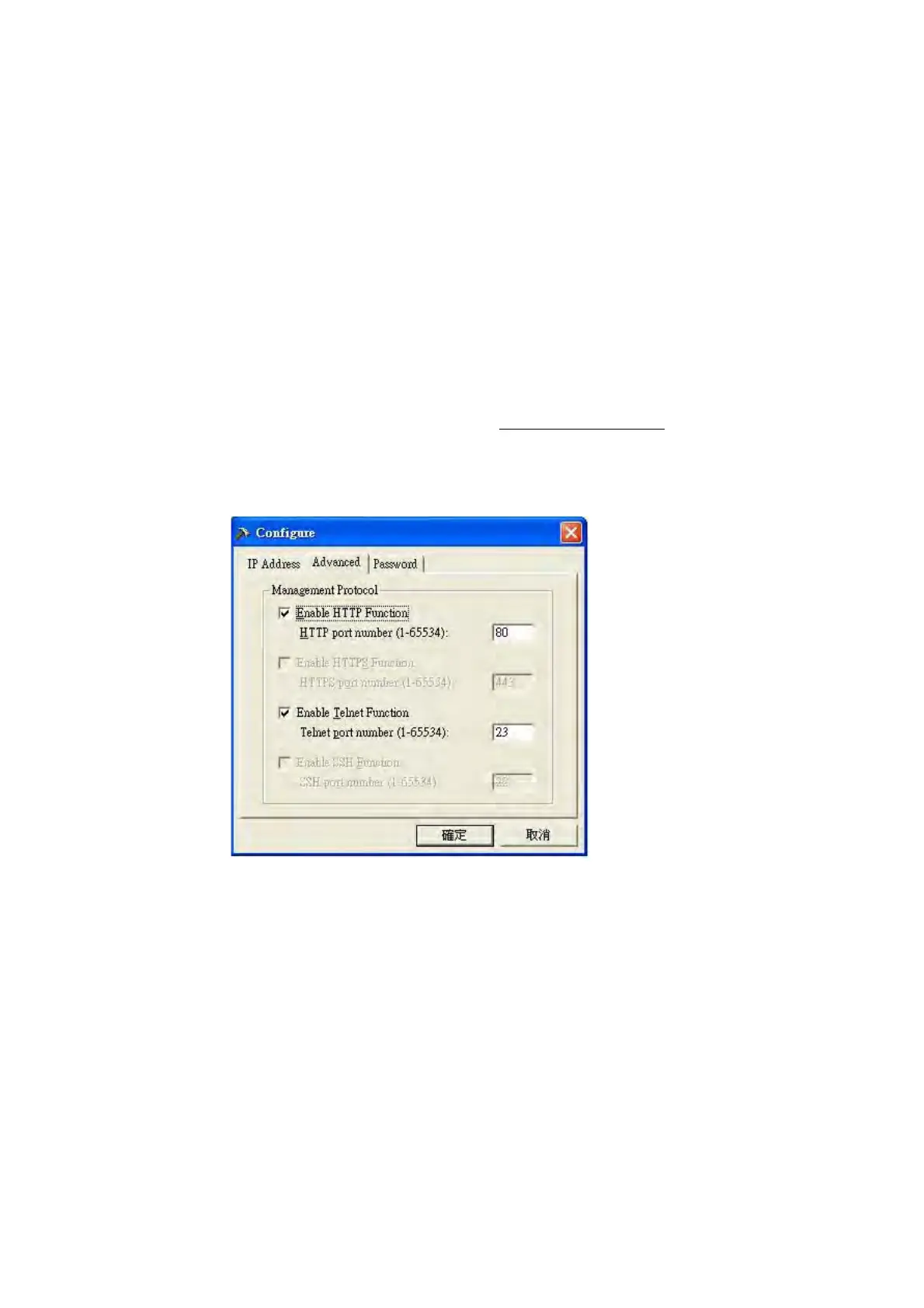

Fig 9. Netility Advanced
