Technical Data and Installation
- 2.2 - SMART KNIT
SM-DIN Sensor Connection

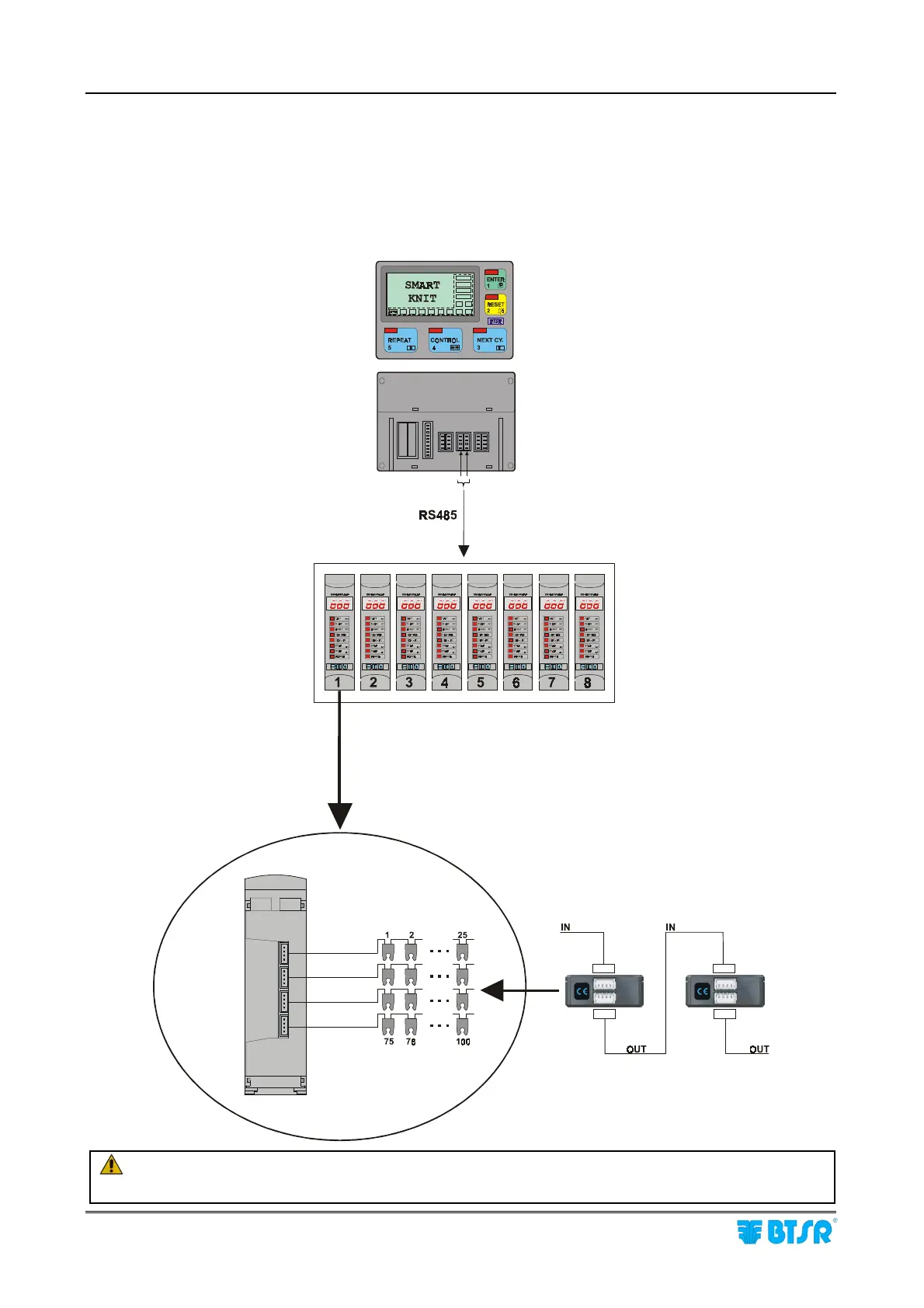

As described on chapter 1, the SMART KNIT can manage up to 800 IS3 sensors,
connected through SM-DIN interface modules (up to 8). Each module can manage
up to 100 sensors distributed along 4 backbone lines.
The SM-DIN modules communicate with SMART KNIT terminal via RS485 serial
line.
Concerning all electrical systems, it is a suggested rule to ensure that the ground cable
(GND) is connected to the device support.
SM-DIN modules
Sensors
connection
To Next Page
