IS3x/TTS Sensor Features
SMART MATRIX TWIST - 3-2 -
Technical Characteristics of IS3W-TTS Sensors

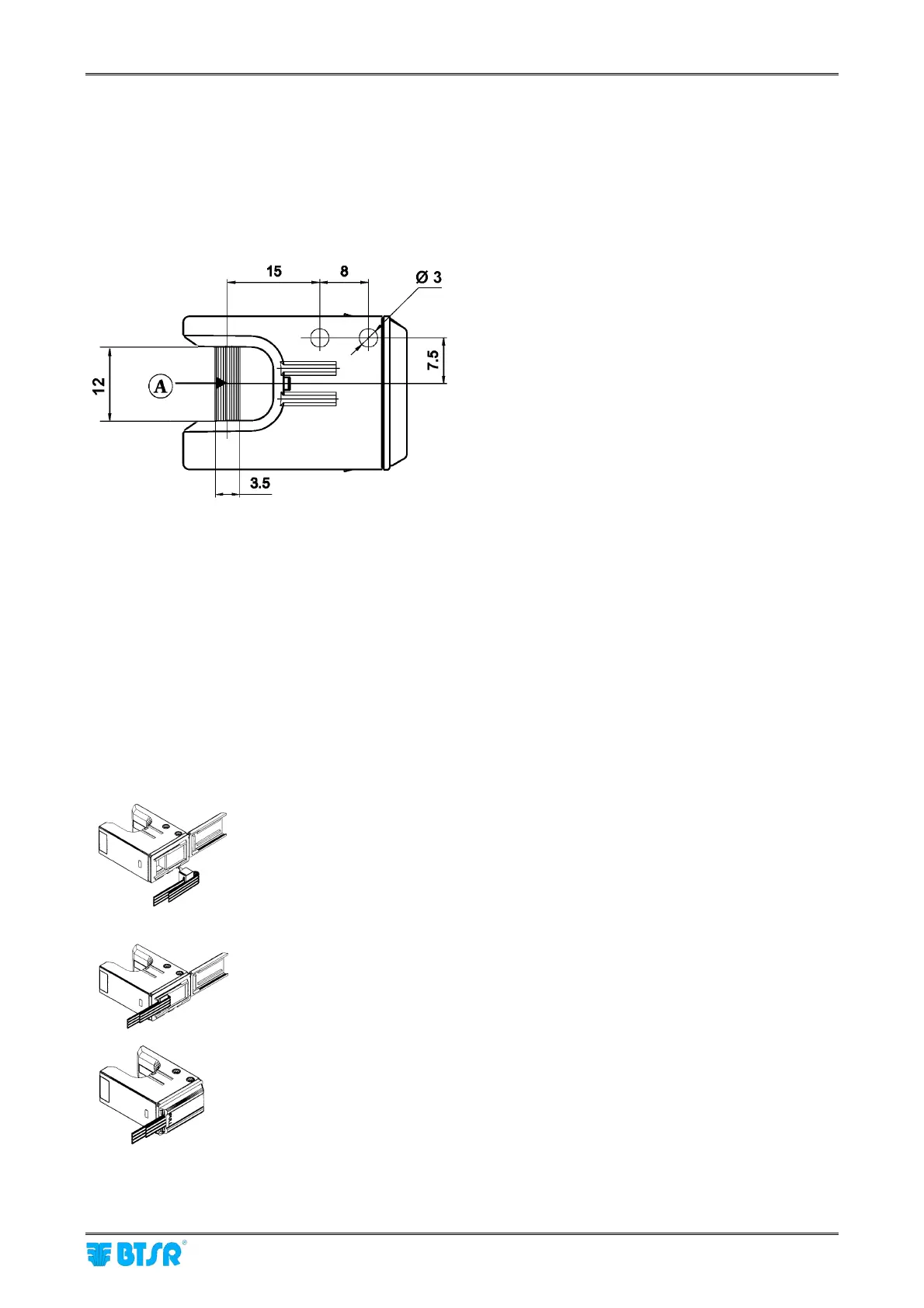

Detection Area and Mechanical Layout (mm)
= yarn detection area
Connection Cables
The IS3W-TTS are available as standard version without connection cable. In this case the wiring can be
made using a multi-connector cable MA../..CR which considerably simplifies the installation in most
applications.
For particular applications, however, the sensor can be delivered with built-in single connector cable.
Installation of IS3W-TTS sensors using multi-connector cable
Using multi-connector cables you may connect up to 100 sensors to each SM-DIN
TWIST Board. To perform the installation operate as following:
Select the appropriate multi-connector cable.
Open the small cover on the rear side of sensor.
!
Insert the cable’s male connector into the sensor’s female connector (the
reference tab on male connector must be faced towards the upper side).
"
Close the small cover and secure the sensor using M3 screws.
#
Ensure that the yarn runs in the middle of detection area
.
