SMART MATRIX ↔ WINDINGFEEDER ↔ PC Connection
SMART MATRIX WINDINGFEEDER - 1 -
SMART MATRIX ↔ WINDINGFEEDER ↔ PC Connection

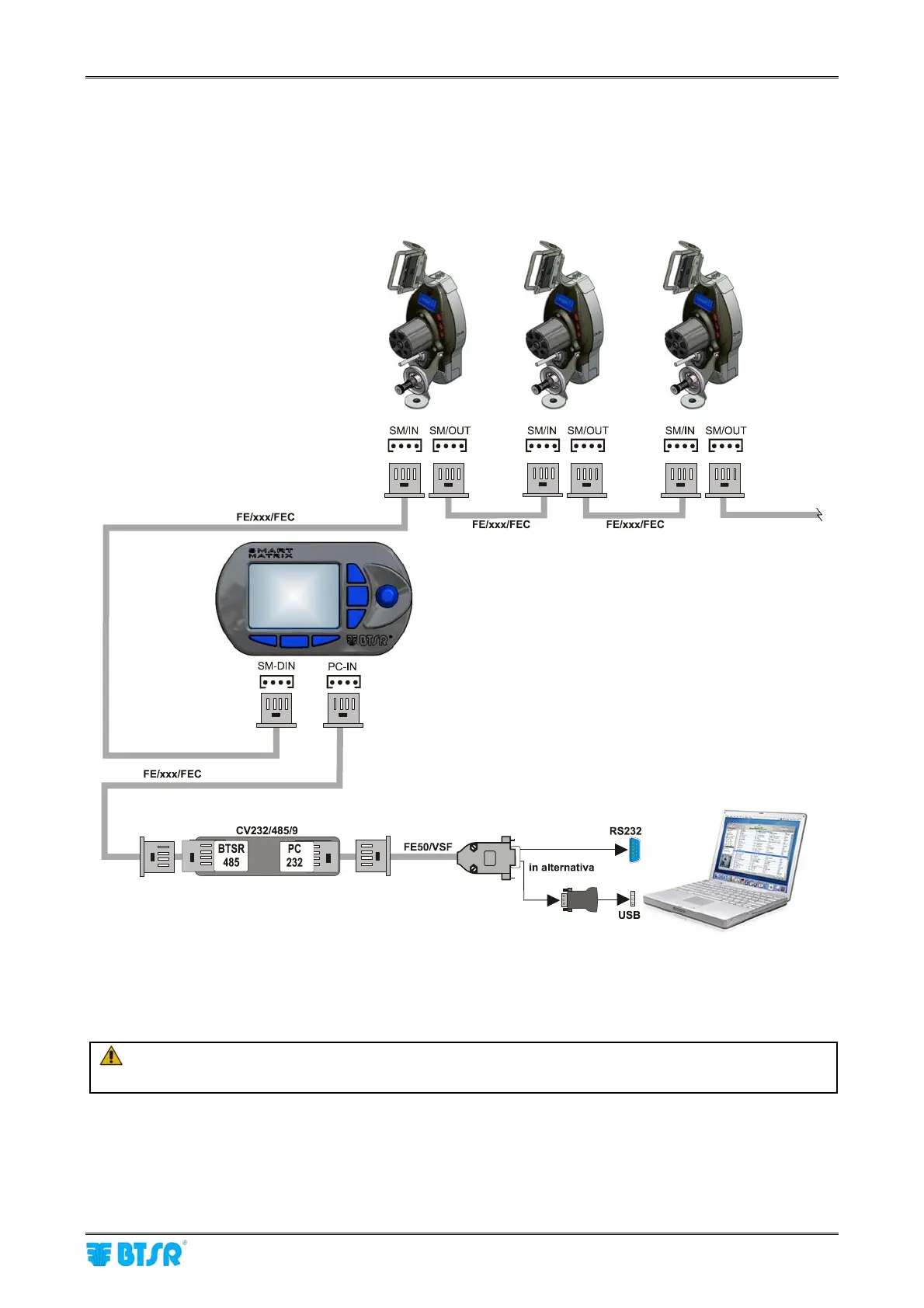

The following diagram shows the interconnections among: SMART MATRIX terminal, WINDINGFEEDER
devices and PC.
The PC is mainly used for firmware update operations on SMART MATRIX WINDINGFEEDER
Terminal.
For a correct connection of WINDINGFEEDER device supply and interface cables, please refer to
Section 2 of WINDINGFEEDER Operating Manual.
On all electrical systems, you are kindly recommended to connect the ground cable (GND)
to the support on which the devices are installed.
