SMART MATRIX ↔ WINDINGFEEDER/PC Interface
SMART MATRIX WINDINGFEEDER - 2 -
SMART MATRIX ↔ WINDINGFEEDER/PC Interface

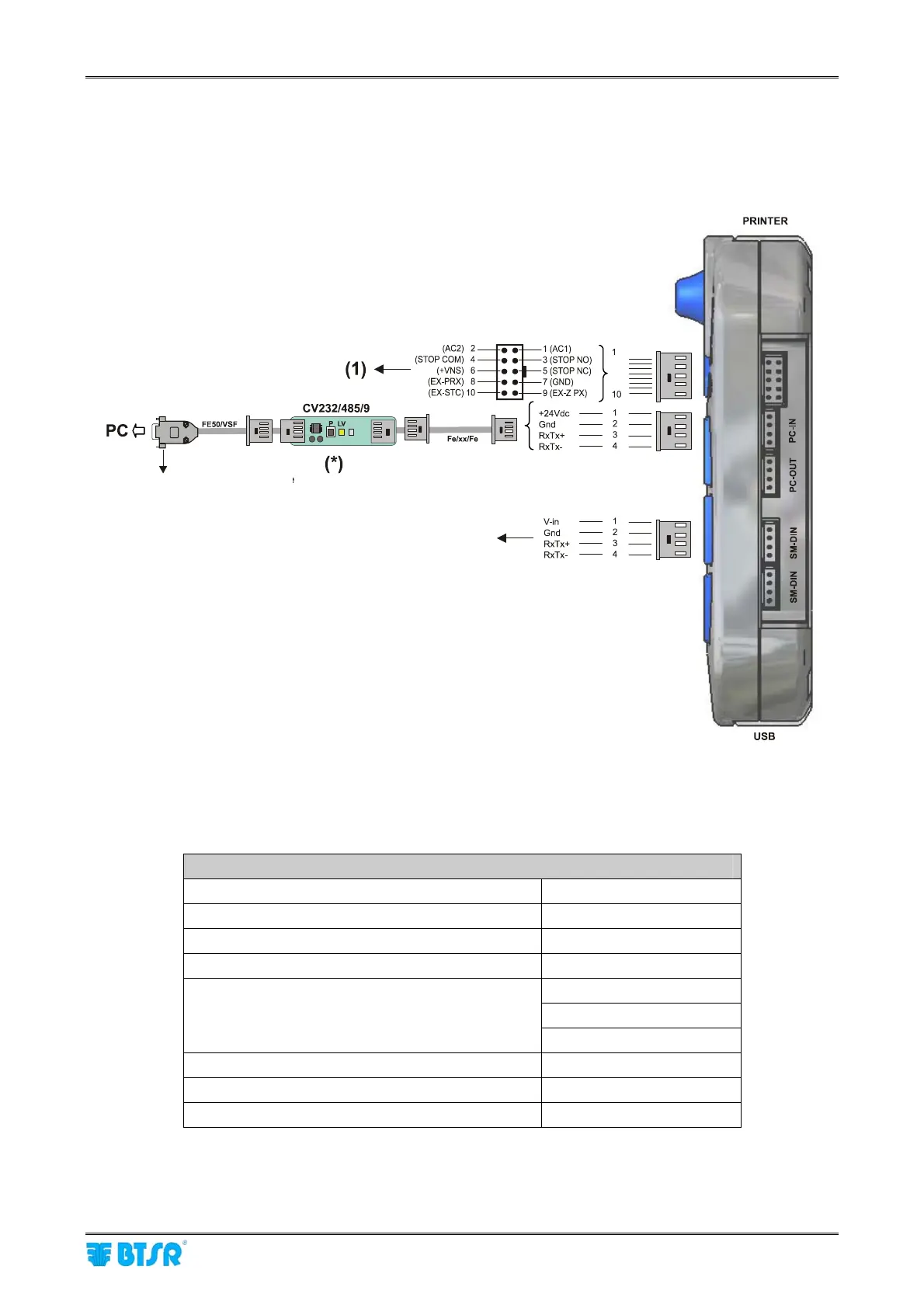

The following figure shows the electrical interface (pin assignment) of SMART MATRIX terminal.
The “Printer” and “USB” connectors are not currently used.
(*) Confirm that the LV green Led shows a double flashing (communication speed on
Cv232/485/9 = 115 kbps).
If necessary press the small P button.
Technical characteristics of SMART MATRIX WINDINGFEEDER terminal
Power supply voltage 24 VDC ± 10%
Current absorption 100 mA Max
Protection fuse (SMART MATRIX) 1,5 A
Protection fuse (Sensor power supply) 1,5 A
0 – 24 VDC
VIL Max 1,2 VDC
Inputs
VIH Min 5 VDC
Operating temperature range +10° / +60° C
Storage temperature -25° / +85° C
Overall dimensions 140x80x31 mm
For more details about the connection of WINDINGFEEDER devices, please refer to Section 2 of
WINDINGFEEDER Operating Manual.
Software upgrading port
Power supply from WINDINGFEEDER
