Checking the SMART MATRIX WINDINGFEEDER I/O Signals
SMART MATRIX WINDINGFEEDER - 22 -
Checking the SMART MATRIX WINDINGFEEDER I/O Signals

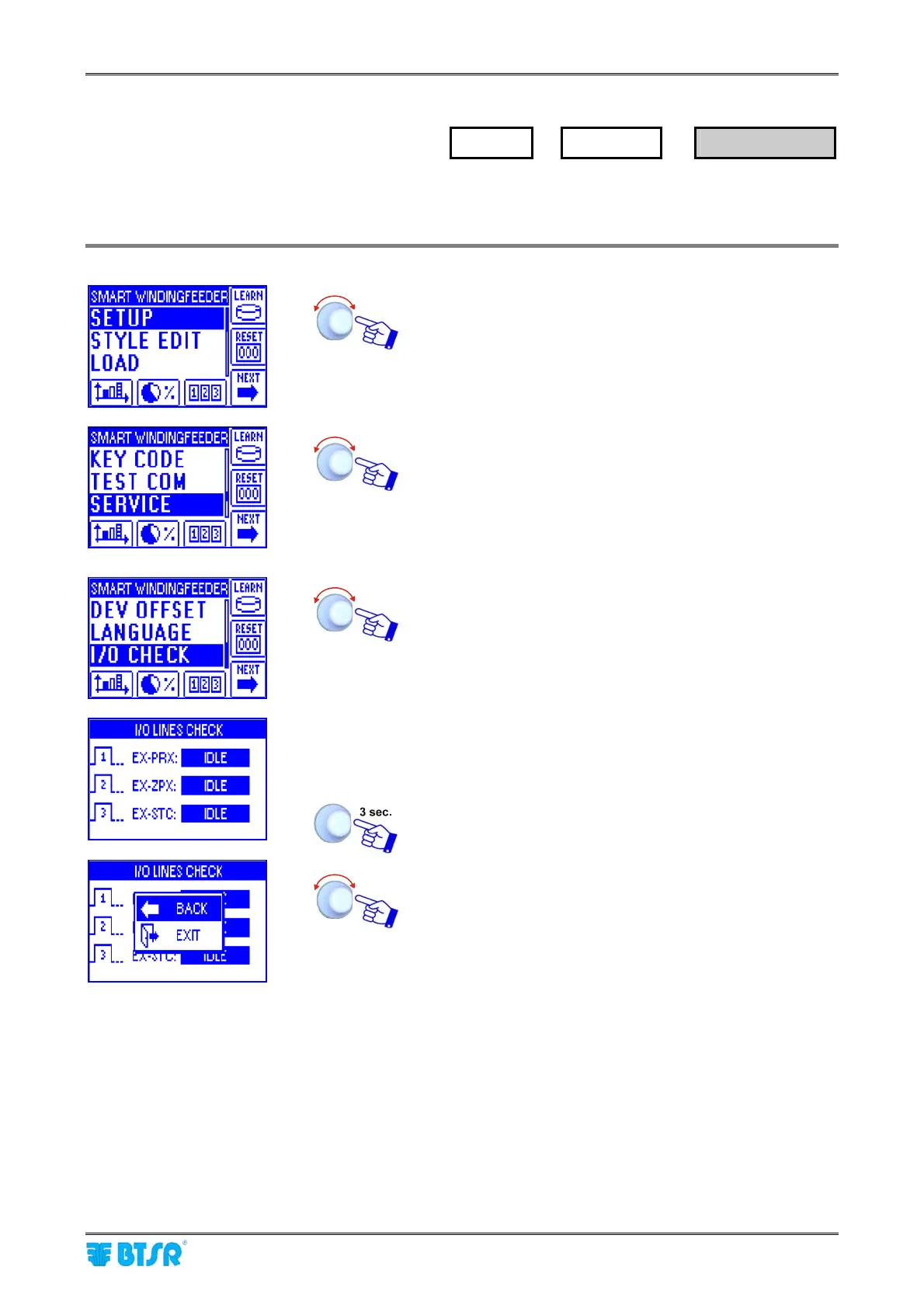

This function allows you to view the status of the external interface signal supplied to SMART MATRIX
WINDINGFEEDER terminal (PRX, ZPX, STC).
Enter the SETUP menu.
Select SERVICE.
Select I/O CHECK
This screen page shows the status of the external interface
signals (IDLE, STOP, etc.)
To leave the function
EXIT to return to SERVICE menu.
SETUP
→
SERVICE
→
I/O CHECK
