btsr ULTRAFEEDER - Installation with PFU;64 FS Power Supply; PFU;64 FS System Wiring and Interface

Technical Data and Installation
- 2.10 - ULTRAFEEDER
Installation of ULTRAFEEDER with PFU/64FS power supplier

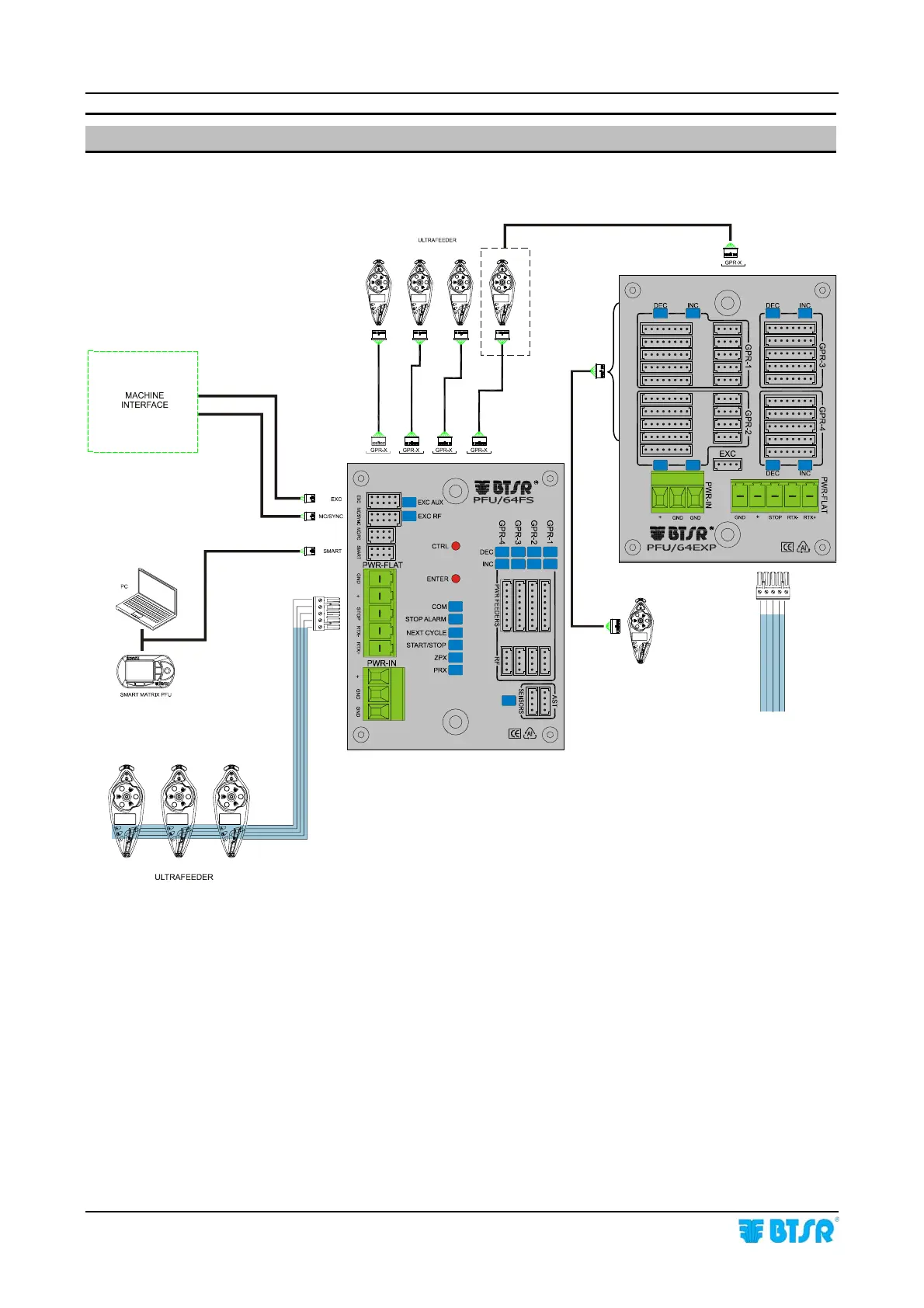

Connection Example of a Complete System including ULTRAFEEDER Devices, PFU/64FS Power
Supplier and SMART MATRIX PFU terminal
(*) The number of connectable ULTRAFEEDER devices can be extended up to 64 by means of PFU/64EXP expansion
boards connected in daisy chain mode.
(*)
