Technical Data and Installation
- 2.22 - ULTRAFEEDER

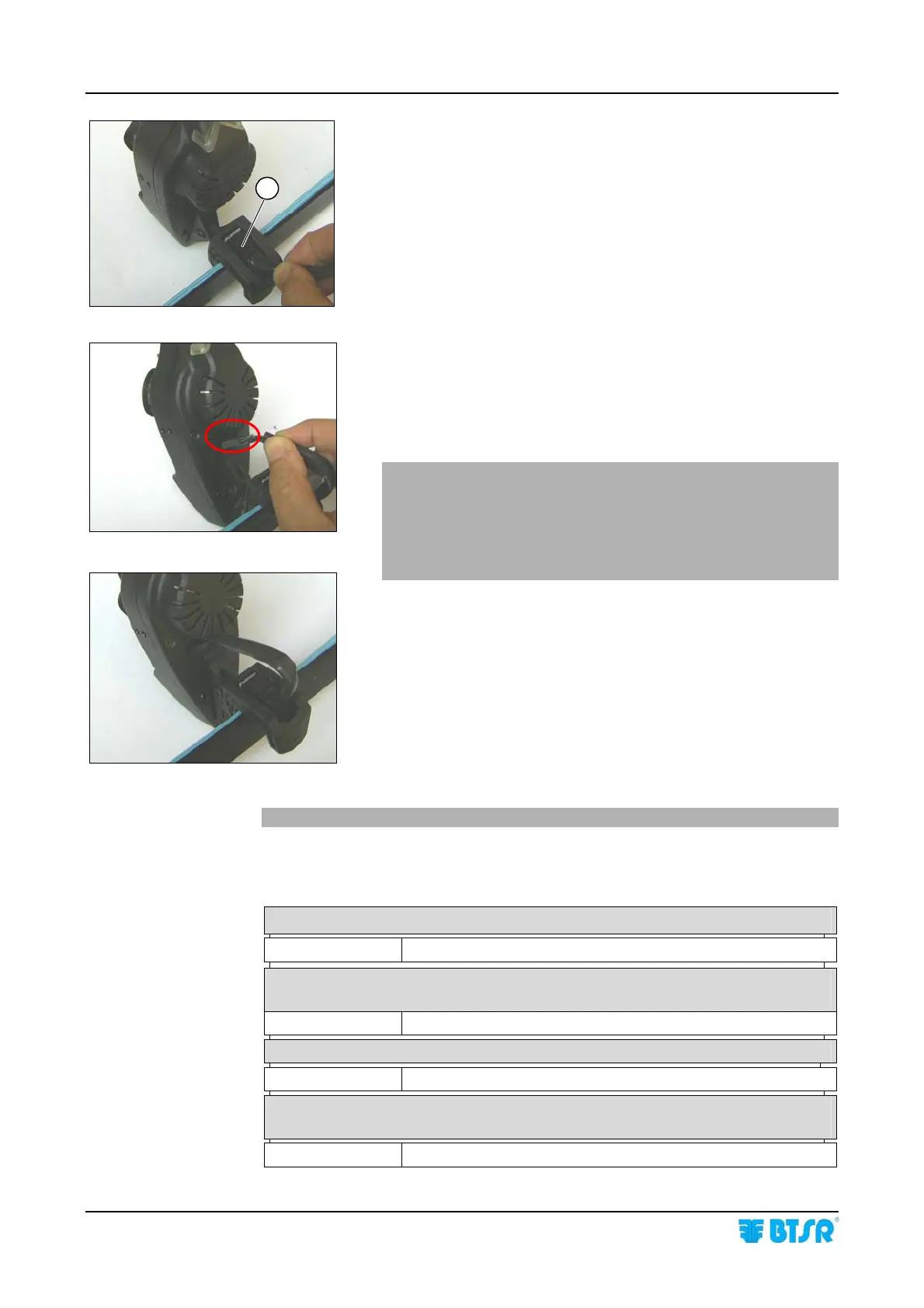

Connect the KTF10/FIX cable
to the KTF/FIX connector
Connect the KTF10/FIX cable to the 8 pin connector of
ULTRAFEEDER
In case of Master/Slave connection, the KTF10/FIX cable
must be connected to the MA8/15/FE10/CAN cable male
connector, which is connected in turn to the
ULTRAFEEDER device 10 pin connector (without adapter
cap)
See picture on page 2.23.
ULTRAFEEDER correctly connected to the flat cable through
KTF/FIX clamping bracket
The flat cable support bar must have a height of 25 mm.
Connection cables and accessories in case of installation with flat cable KTF/FLAT
Flat cable KTF/FLAT for KTF/FIX
KTF/FLAT Variable length
Flat cable KTF/FLAT for KTF/FIX with connectors for BX4030RTP-X4
power supply module connection
500/FLAT/PW4 Length 500 cm, with connector for KTF/PW4
Connection cable between ULTRAFEEDER and KTF/FIX
KTF10/FIX Length 10 cm
Quick multi-connection clamping of ULTRAFEEDER with flat cable
KTF/FLAT
KTF/FIX Insulation pass-through rapid clamping bracket
