Technical Data and Installation
- 2.24 - ULTRAFEEDER

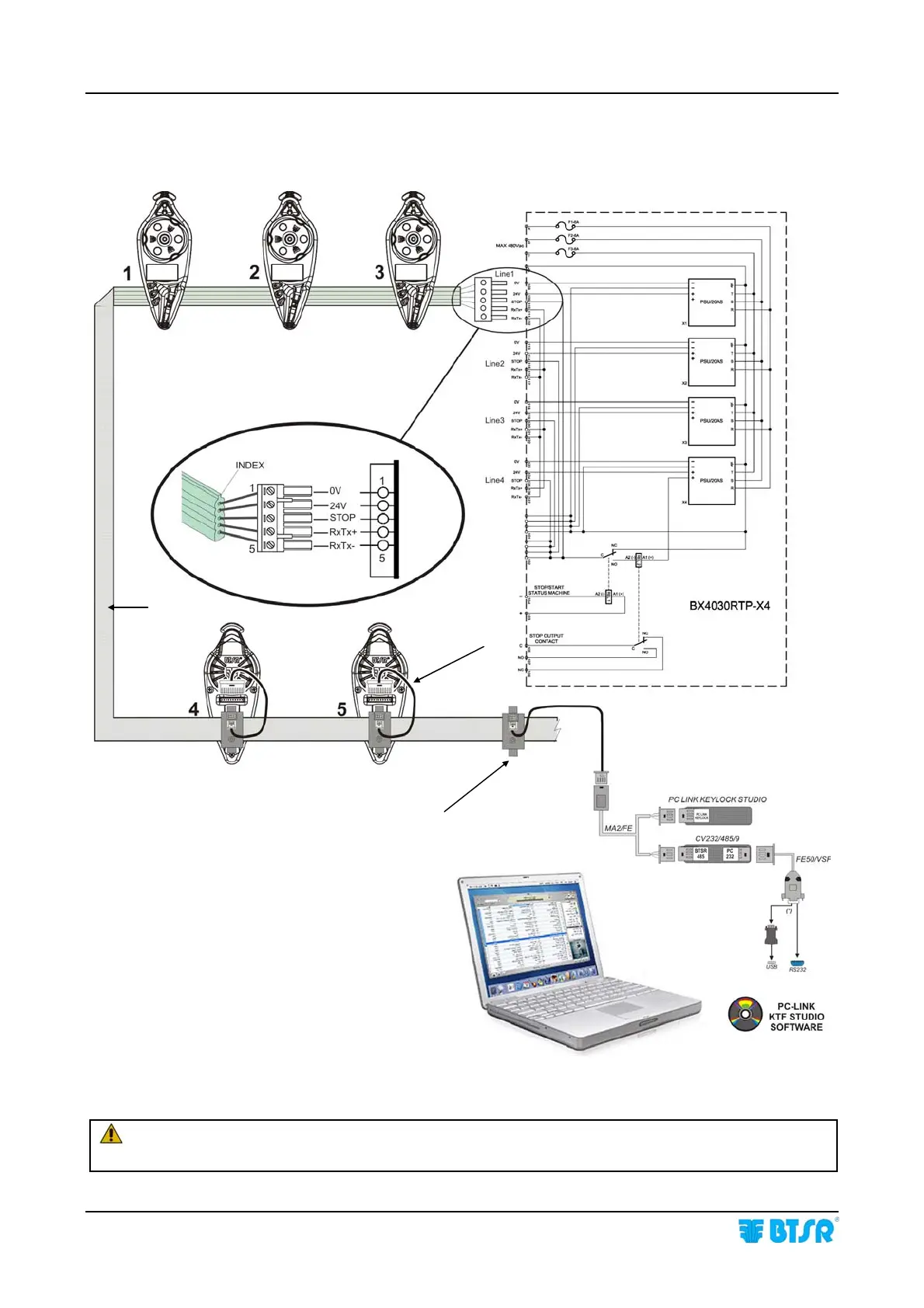

Connection Example of a Complete System Including ULTRAFEEDER Devices, Flat Cable KTF/FLAT,
BX4030RTP-X4 power supplier and Notebook with PC-LINK KTF Studio Analysis/Monitoring Software
Concerning all electrical systems, it is a suggested rule to ensure that the ground cable
(GND) is connected to the device support.
KTF/FLAT
KTF/FIX
KTF10/FIX
FE/100FEC
s alternative
