Operation
ULTRAFEEDER - 3-23 -

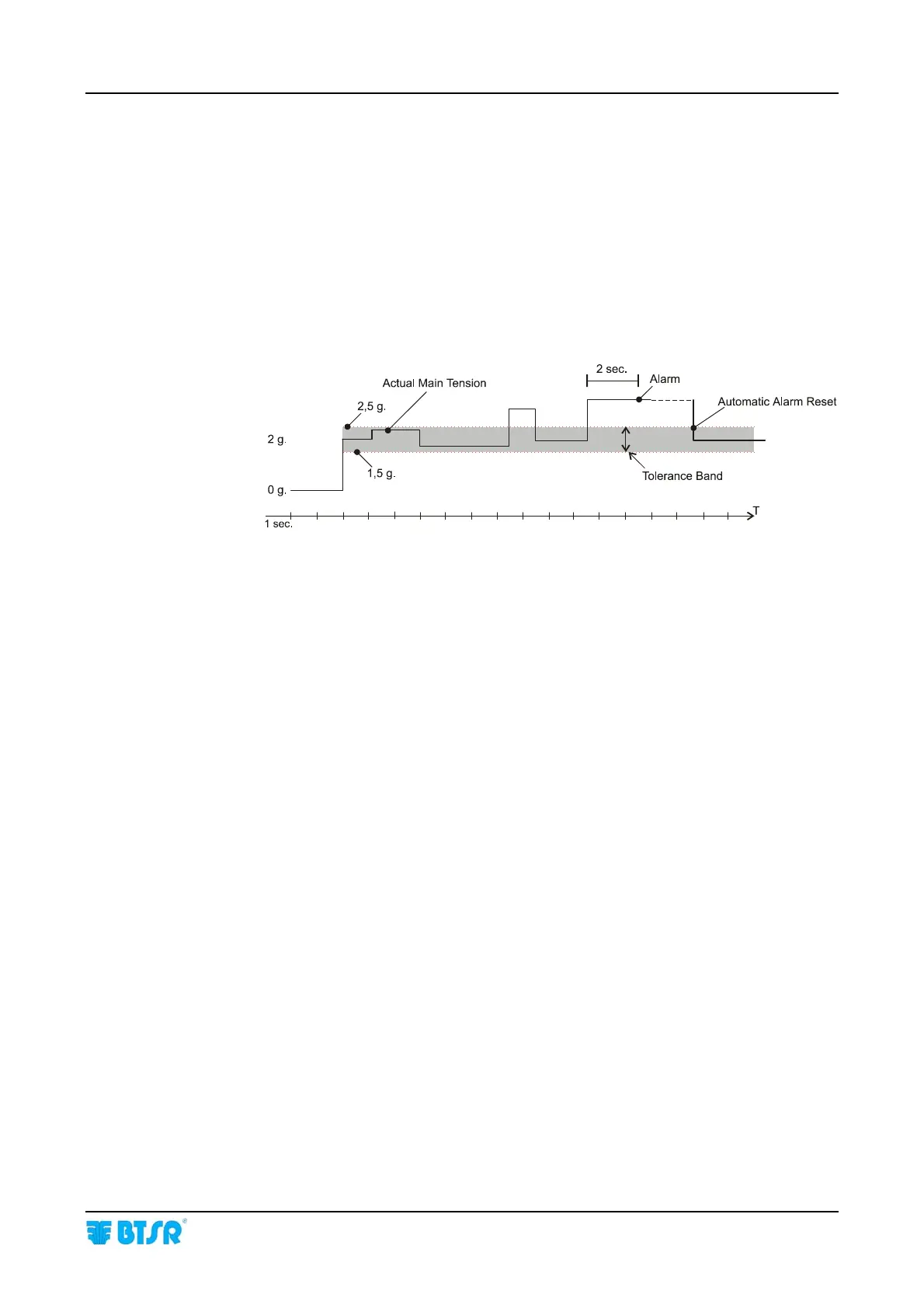

Management of “Tension Error” Alarm
EXAMPLE
The ULTRAFEEDER generates the “Error Tension” Alarm when the
tension goes out of the programmed tolerance band and automatically
resets the alarm as soon as the tension returns within the programmed
tolerance band.
“Error Tension” Alarm active only when the ULTRAFEEDER device
operates with P1 tension (
MAIN TENSION)
Main Tension: 2.0 g.
Error Tension: ± 0.5 g.
Time Alarm: 2.0 sec.
