4 – ULTRAFEEDER TROUBLESHOOTING AND MAINTENANCE

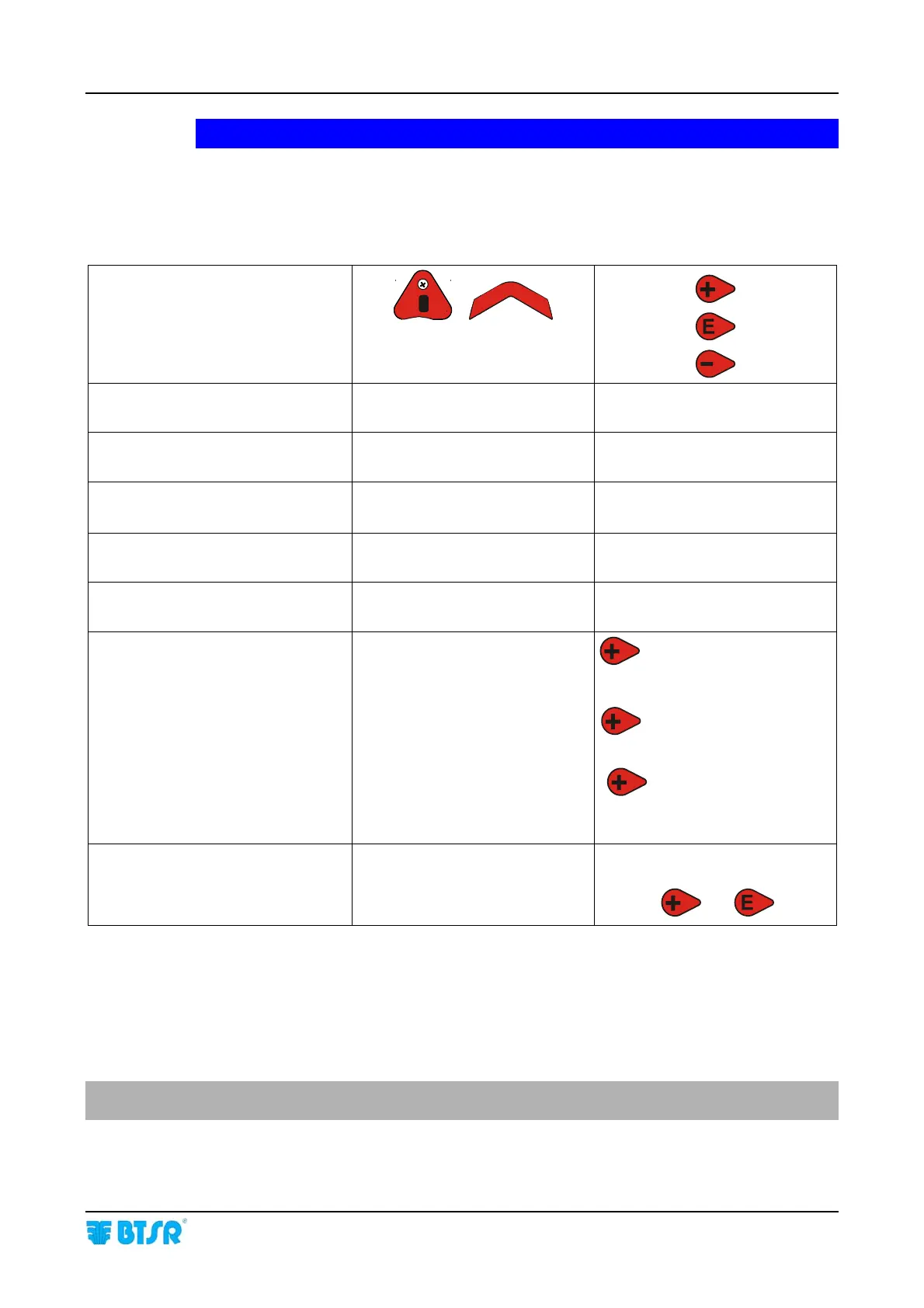

Indications Provided by the Red LEDs on ULTRAFEEDER Device
Status of ULTRAFEEDER device
Front Rear
Identification BLINKING GREEN/RED ALTERNATE
FLASHING
ERROR E2 BLINKING GREEN/RED ALTERNATE
FLASHING
MOTOR LOCKED
(with CONTROL button)
(*)
ON ON
ERROR TENSION BLINKING GREEN/RED ALTERNATE
FLASHING
KNOT DETECTED BY UNICO
ACCESSORY
ONLY FRONT LED ON
Master 1 and Slave 1 identification
steady lit on Master 1
( in P1)
steady lit on Slave 1 (when
linked to Master 1),
blinking (when Slave 1 is
in P1 but it does not receives
data from Master 1)
Master 2 and Slave 2 identification Same as above but with
simultaneous lighting of
and
(*) This condition is obtained with INC/DEC disabled, i.e. when you are working with the tension defined
in P2. If you work with the tension defined in P1, even if you press the Control button, both LEDs
remain off. However, pressing the Control button, the tension defined in P1 will be displayed.
 To interpret the failure condition and restore the normal operating conditions, please refer to the
following table.
