Technical Data and Installation
ULTRAFEEDER - 2.23 -

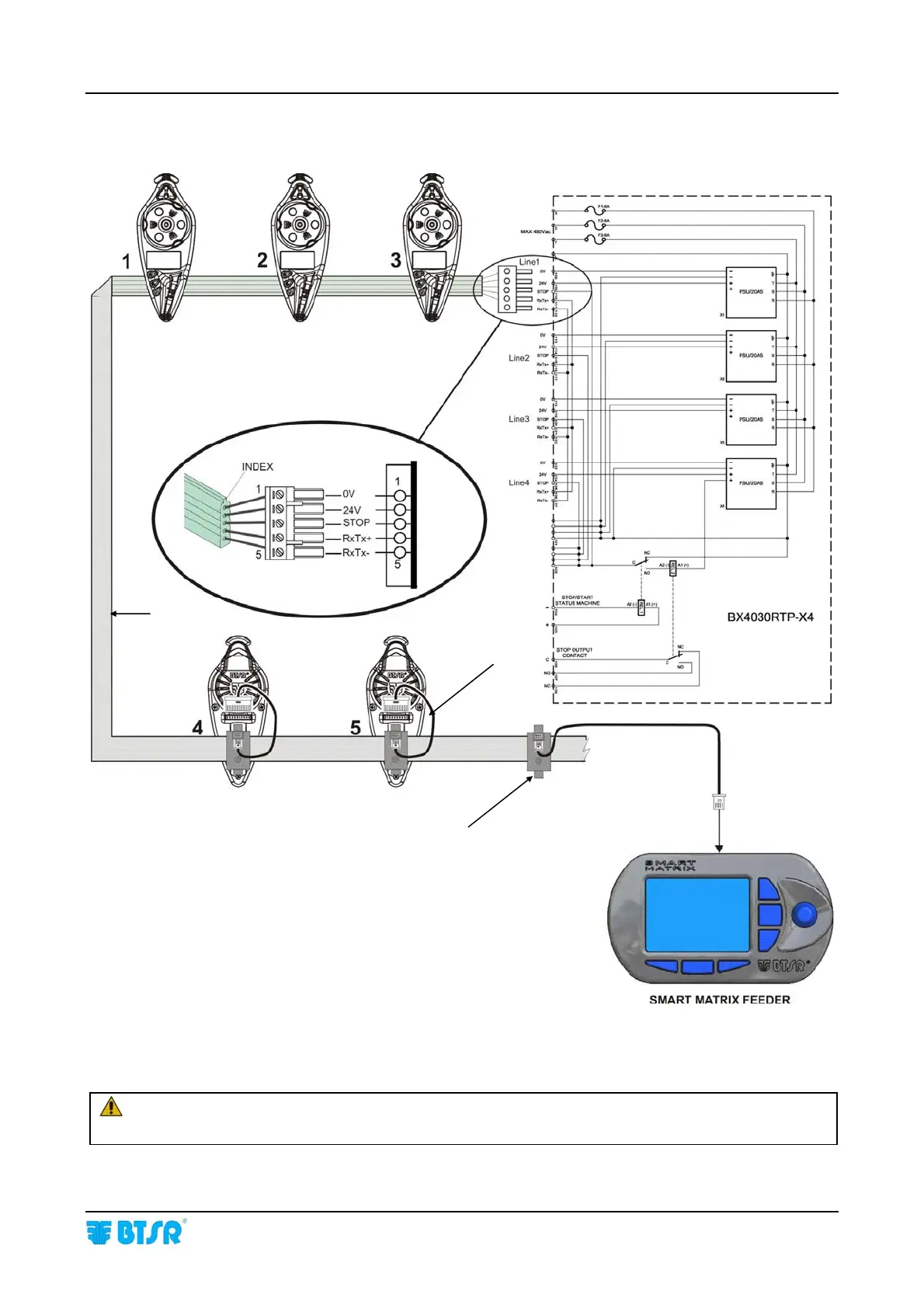

Connection Example of a Complete System Including ULTRAFEEDER Devices, External Power Supply,
Flat Cable KTF/FLAT, SMART MATRIX FEEDER Terminal and BX4030RTP-X4 power supplier
Concerning all electrical systems, it is a suggested rule to ensure that the ground cable
(GND) is connected to the device support.
KTF/FLAT
KTF/FIX
KTF10/FIX
FE/100FEC
