Technical Data and Installation
ULTRAFEEDER - 2.11 -
PFU/64FS power supplier electrical interface

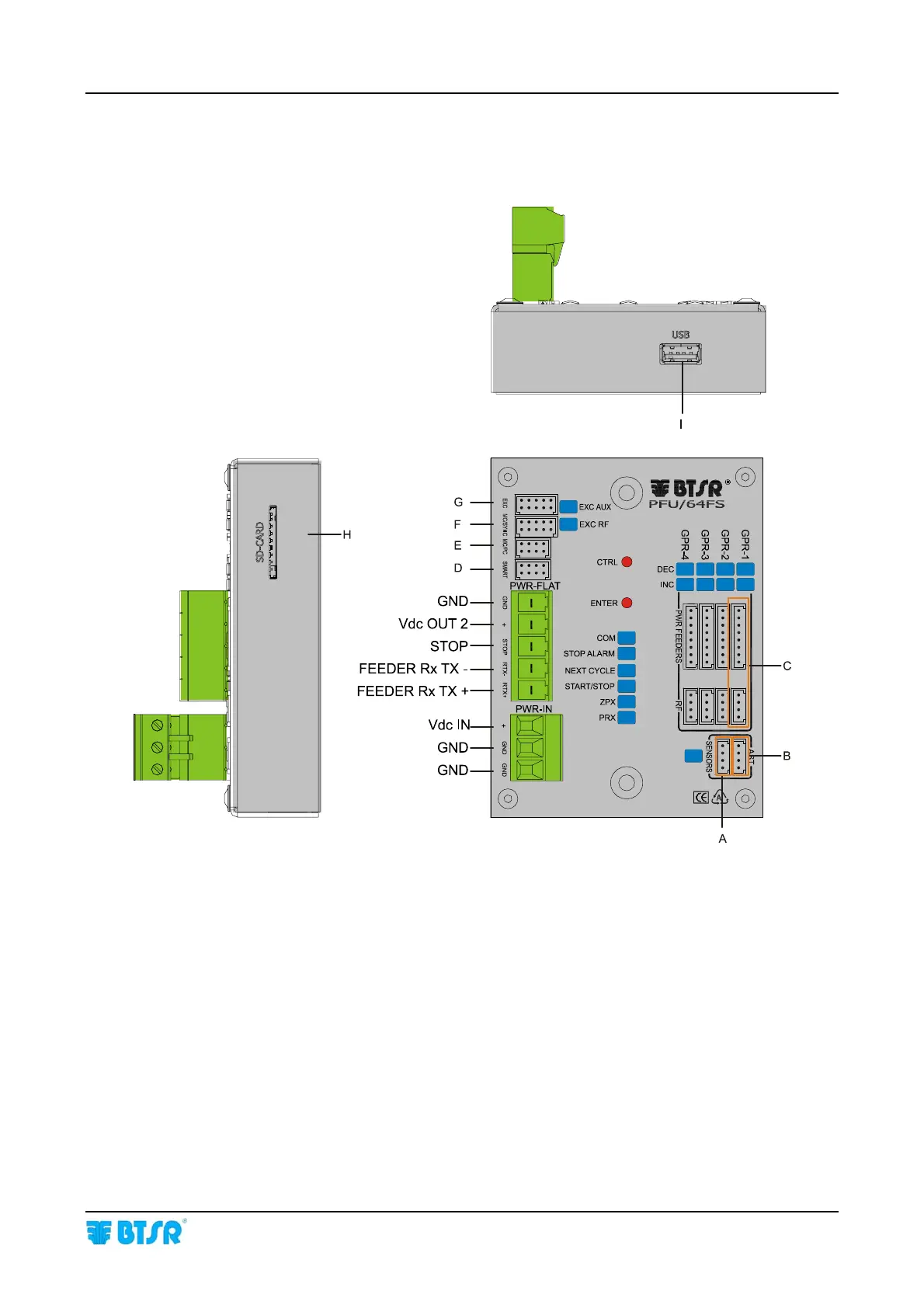

The PIN assignment of A…G connectors is indicated on the following page.
The H (SD-CARD) and I (USB) connectors are used for firmware loading and/or upgrade, according to the
desired configuration (see Appendix).
FLAT CABLE
ALIM.
