Technical Data and Installation
ULTRAFEEDER - 2.25 -

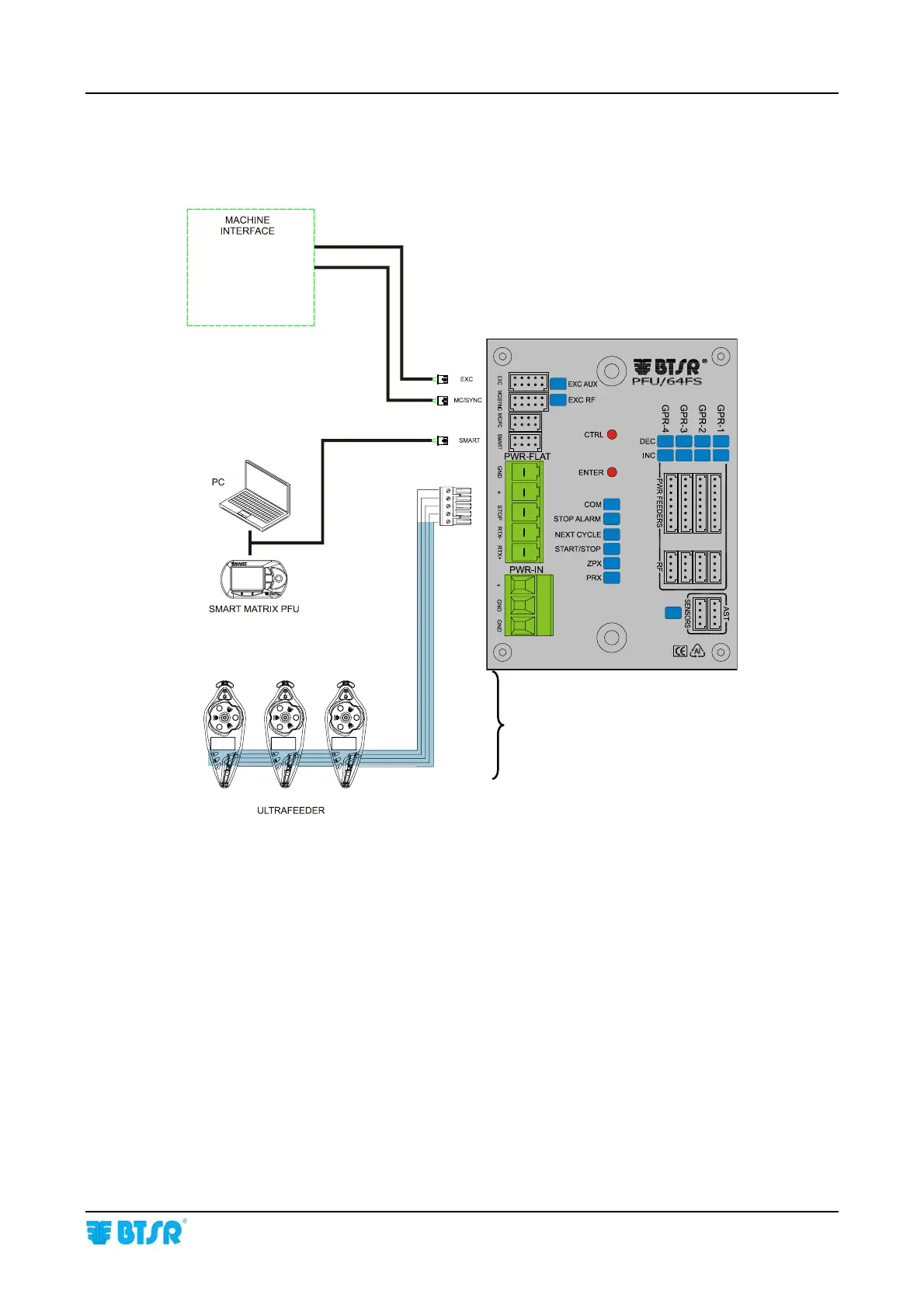

Connection Example of a Complete System including ULTRAFEEDER Devices, KTF/FLAT cable,
SMART MATRIX PFU Terminal and PFU/64FS Power supplier
+ For the Pin assignment on the machine interface connectors and the difference between the Hardware
and Software operating modes, please refer to pages 2.10 to 2.17
FLAT CABLE
To Next Page
