2-82 2005 Buell Firebolt: Chassis
HOME
PASSENGER
Remove Footpeg
1. See Figure 2-112. Remove clip (7).
2. Remove footpeg pin (9).
3. Remove footpeg (8), detent plate (6), ball (5) and
spring (4).
Remove Heel Guard
1. See Figure 2-112. Remove heel guard fasteners (1).
2. Remove heel guard (2).
Remove Mount
1. See Figure 2-112. Remove footpeg mount fasteners
(10).
2. Remove footpeg mount (3).
Install Mount
1. See Figure 2-112. Position footpeg mount (3) onto sub-
frame tail assembly.
2. Install footpeg mount (3). Using LOCTITE 272 tighten,
fasteners (10) to 25-28 ft-lbs (34-38 Nm).
Install Heel Guard
1. See Figure 2-112. Position heel guard (2) onto footpeg
mounts (3).
2. Install heel guard (2).
a. Apply WD40 lubricant to the heel guard fasteners
before installing.
b. Tighten heel guard fasteners to 48-72 in-lbs (5-
8 Nm).
Install Footpeg
1. See Figure 2-112. Position footpeg (8), detent plate (6),
ball (5), and spring (4) on to footpeg mount (3).
2. Install footpeg pin (9).
3. Install clip (7).
4. Check that footpeg clicks in the up and down position.

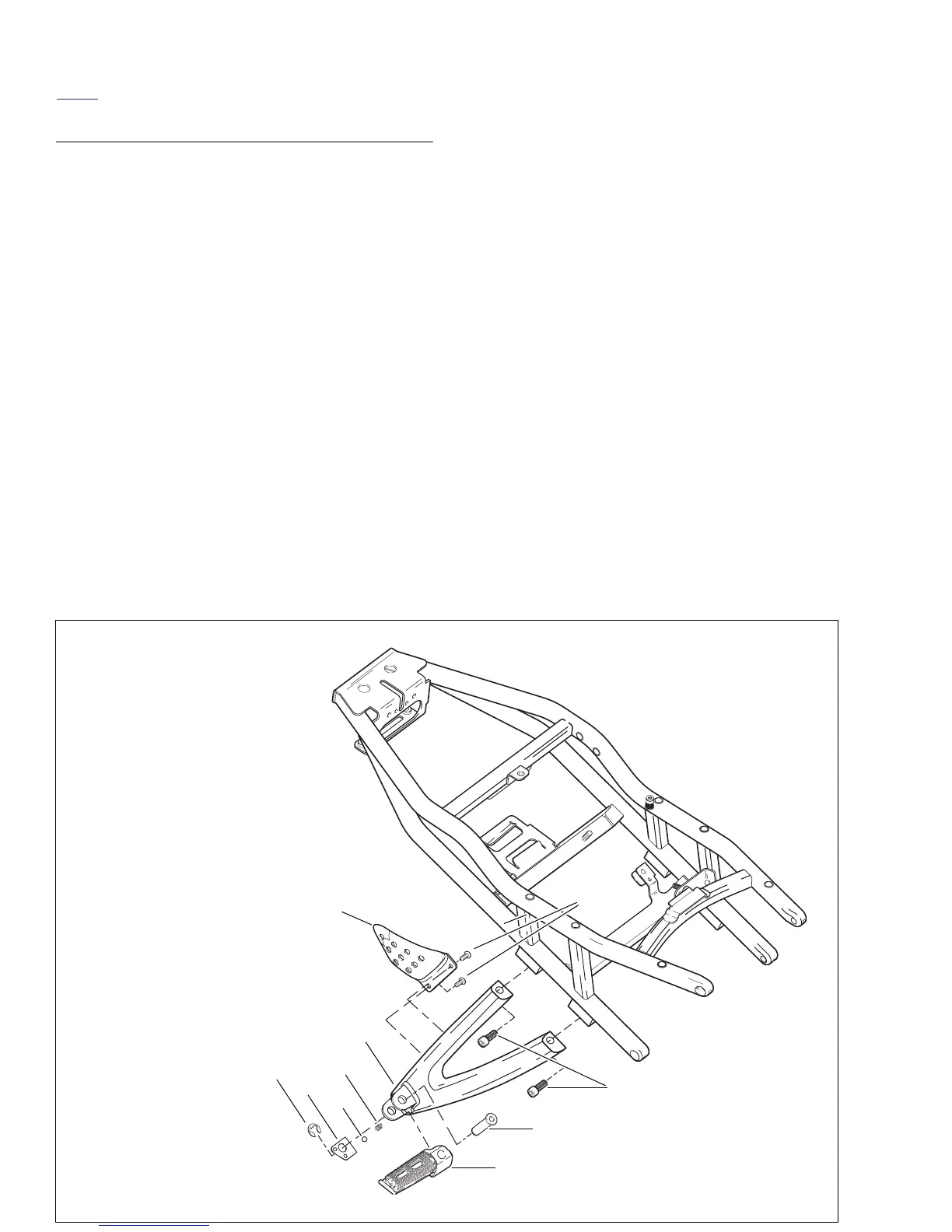

Figure 2-112. Passenger Footpeg, Mount and Heel Guard Assembly
1. Heel guard
f
asteners
2. Heel guard
3. Footpeg mount
4. Spring
5. Ball
6. Detent plate
7. Clip
8. Footpeg
9. Pin
10. Footpeg mount fastener
2
3
1
10
9
8
6
5
4
7
b0933x2x
