FENDERS 2.31
FRONT FENDER
Removal
1. See Figure 2-115. Remove fasteners and washers (2)
securing the front fender (1) to front forks.
2. Carefully remove front fender (1).
Installation
1. See Figure 2-115. Align front fender (1) to fender mounts
on front forks.
2. Install front fender (1) with fasteners and washers (2) and
tighten to 12-36 in-lbs (1-4 Nm).
REAR FENDER
Removal
1. Remove rear wheel. See 2.6 REAR WHEEL.
2. See Figure 2-115. Remove fasteners and washers (4)
securing the rear fender (3) to frame.
3. Remove rear fender (3).
Installation
1. See Figure 2-115. Align rear fender (3) to frame.
2. Install rear fender (3) with fasteners and washers (4),
Tighten to 12-15 in-lbs (1-1.7 Nm).
3. Install rear wheel. See 2.6 REAR WHEEL.

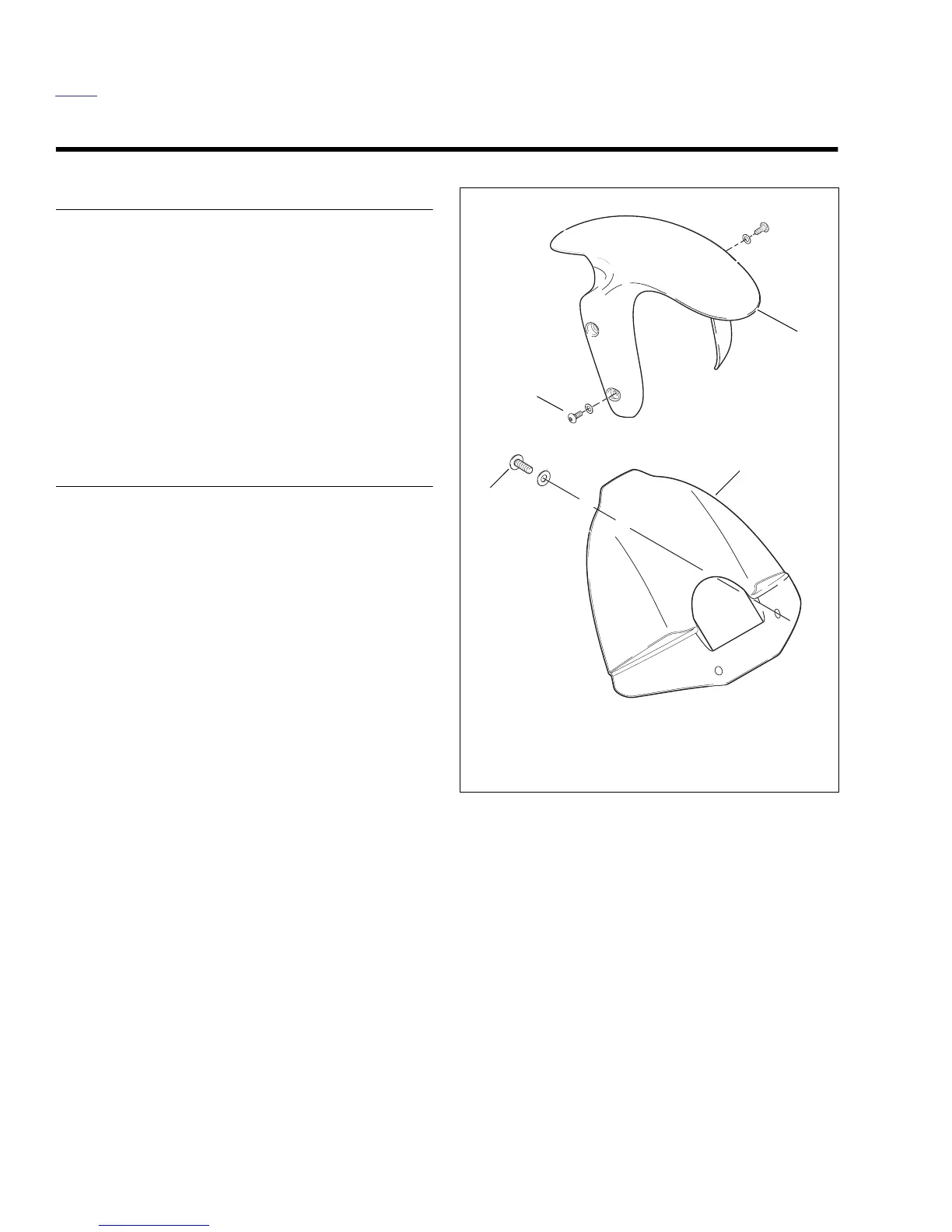

Figure 2-115. Front and Rear Fender
1. Front fender
2. Front fender fastener
3. Rear fender
4. Rear fender fastener
b0941x2x
1
2
3
4
