4-122 2005 Buell Firebolt: Fuel System
HOME
FUEL CAP RETAINING RING 4.42
REMOVAL
NOTE
The fuel tank must be drained to perform this service.
1. Drain fuel tank. See DRAINING FUEL TANK under 4.39
FUEL PUMP/EARLY MODEL YEAR.
2. Remove fuel filler cap.
3. See Figure 4-108. Remove fasteners (4) securing fuel
cap retaining ring (3) to fuel filler neck (1).
4. Remove fuel cap retaining ring and o-ring (2). Discard o-
ring.
INSTALLATION
1. Coat new o-ring (2) with thin film of clean engine oil.
2. Place o-ring into groove in underside of fuel cap retaining
ring (3).
NOTE
Be sure o-ring remains in groove of fuel cap retaining ring
during installation.
3. Insert fuel cap retaining ring into fuel filler neck.
4. Install fasteners (4). Tighten to 17-70 in-lbs (1.9-7.9
Nm).
5. Install fuel filler cap.

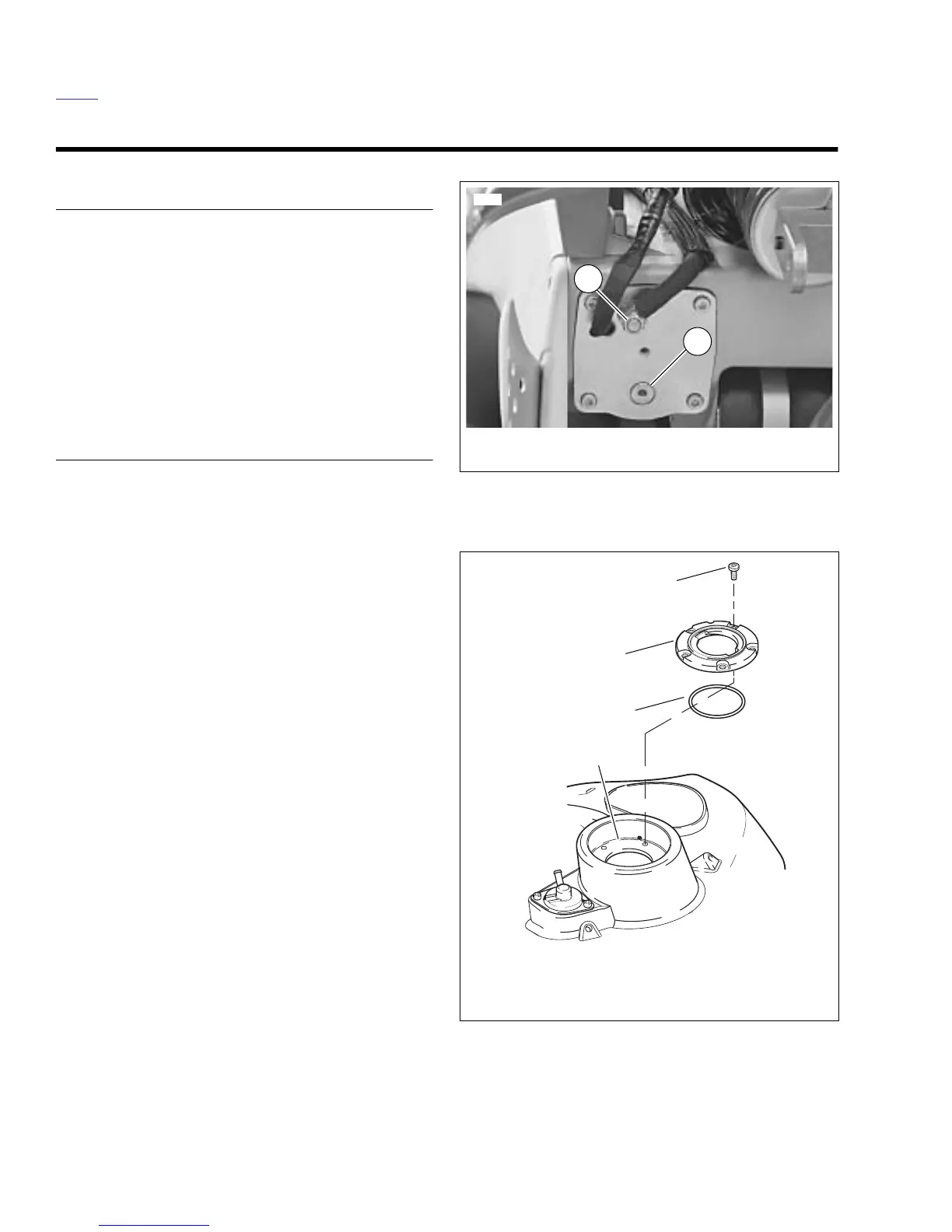

Figure 4-107. Fuel Pump Drain Screw
(swingarm removed for illustration)
Figure 4-108. Fuel Cap Retaining Ring
10718
1. Fuel pump connector [86]
2. Fuel pump drain plug
2
1
4
3
2
1
1. Fuel filler neck
2. O-ring
3. Fuel cap retaining ring
4. Fastener (5)
b1039x4x
