CHIN FAIRING 2.33
REMOVAL
1. Secure back tire down.
2. Turn wheel full right or left for easier access to center fas-
teners.
3. See Figure 2-117. Remove center section fasteners and
washers (2).
4. Remove left section fasteners and washers (4).
5. Remove right section fasteners and washers (6).
6. Remove chin fairing.
NOTE
To separate the left, right and center sections, drill out the riv-
ets.
INSTALLATION
NOTE
To join the left, right and center sections, use the rivet gun
from a Marson Thread-Setter
TM
Tool Kit MODEL NO.
MAR39200HD.
1. See Figure 2-117. Position chin fairing (5) and install with
right side fasteners and washers (6).
2. Align left section (3) and install with left side fasteners
and washers (4).
3. Turn wheel full right or left for easier access to center fas-
teners.
4. Align center section (1) and install with center section
fasteners and washers (2). Use LOCTITE 272 on all fas-
teners tightening to 36-48 in-lbs (4-5 Nm).

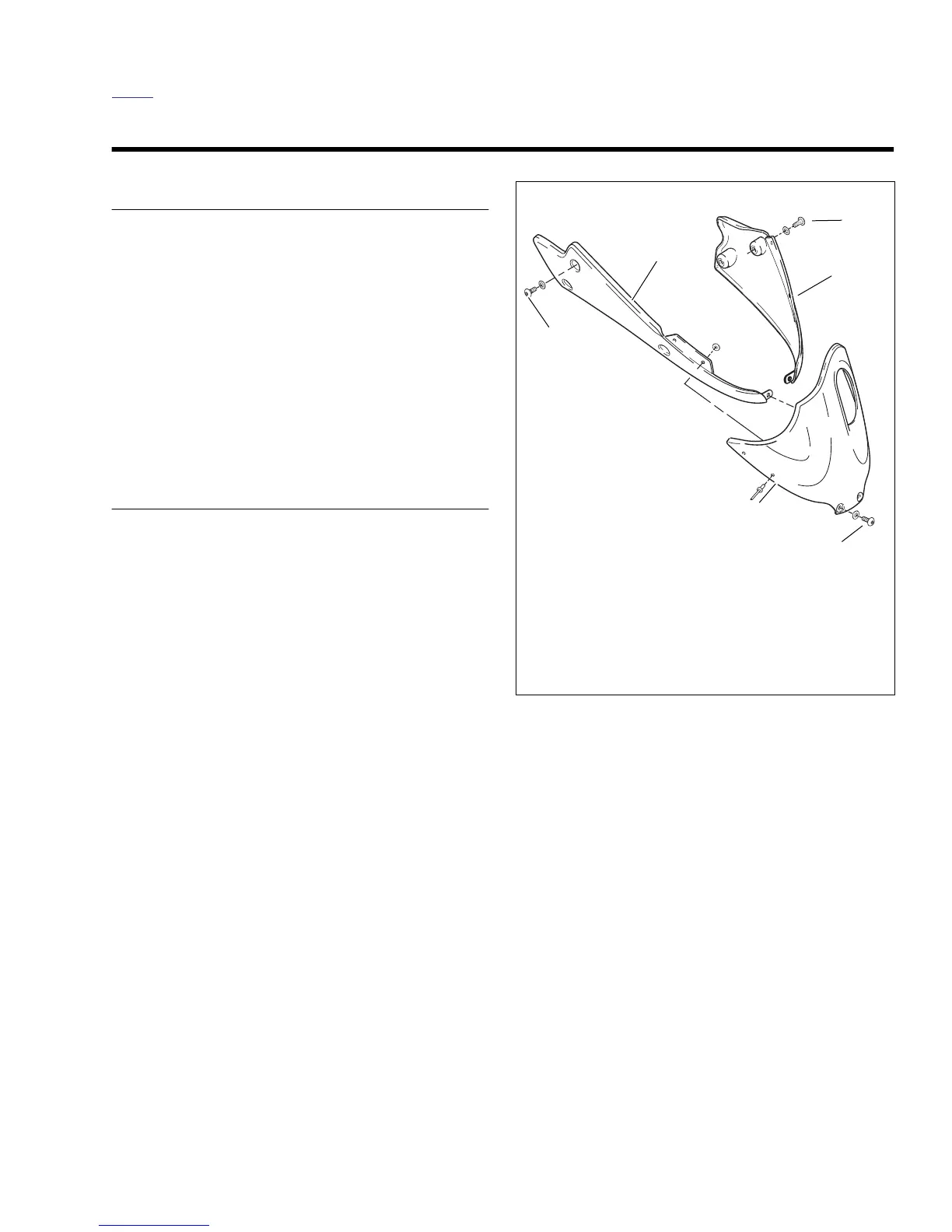

Figure 2-117. Chin Fairing Assembly
b0942x2x
1. Center section
2. Center section fasteners and washers
3. Left section
4. Left section fastener and washer
5. Right section
6. Right section fastener and washer
1
2
6
5
3
4
