2005 Buell Firebolt: Drive/Transmission 6-29
HOME
TRANSMISSION DISASSEMBLY 6.9
TRANSMISSION REMOVAL FROM
LEFT CRANKCASE
NOTE
See Figure 6-59. Shifter design allows for one common part
number for all three shifter forks. As the transmission runs,
each shifter fork develops a certain wear pattern with its mat-
ing parts. For this reason, it is important that each shifter fork
be reinstalled in its original location.
1. See Figure 6-57. Remove shifter fork shafts.
NOTE
Carefully tap on alternate sides of the shaft using the pro-
vided slots.
2. See Figure 6-58. Remove shifter drum and shifter forks.
3. Remove mainshaft 2nd gear from mainshaft.

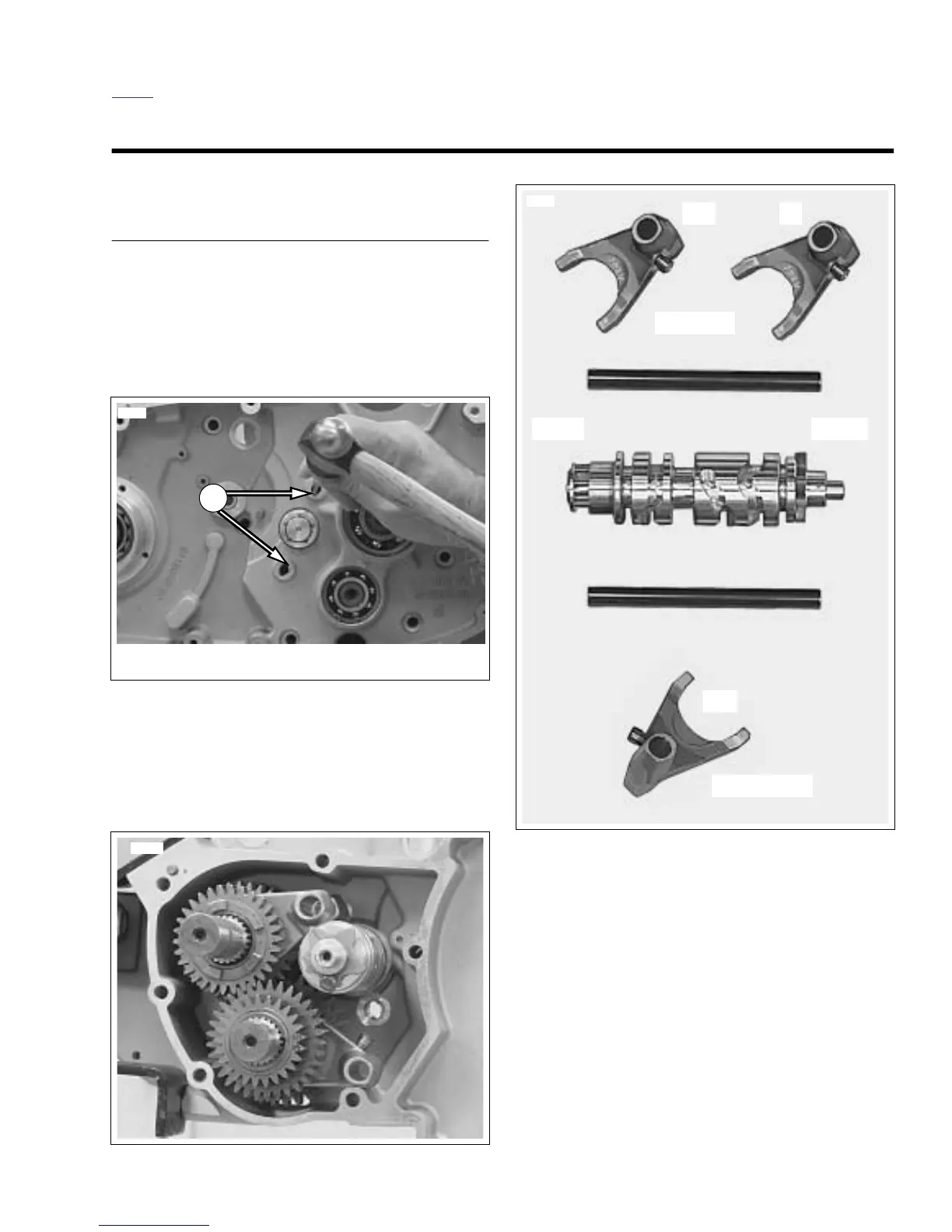

Figure 6-57. Removing Shifter Fork Shafts
Figure 6-58. Transmission Assembly
1. Slots for removing the shifter fork shafts
8624
1
8628a
Figure 6-59. Shifter Forks, Drum and Shafts
