Buell 2005 FIREBOLT - Page 461

6-30 2005 Buell Firebolt: Drive/Transmission
HOME

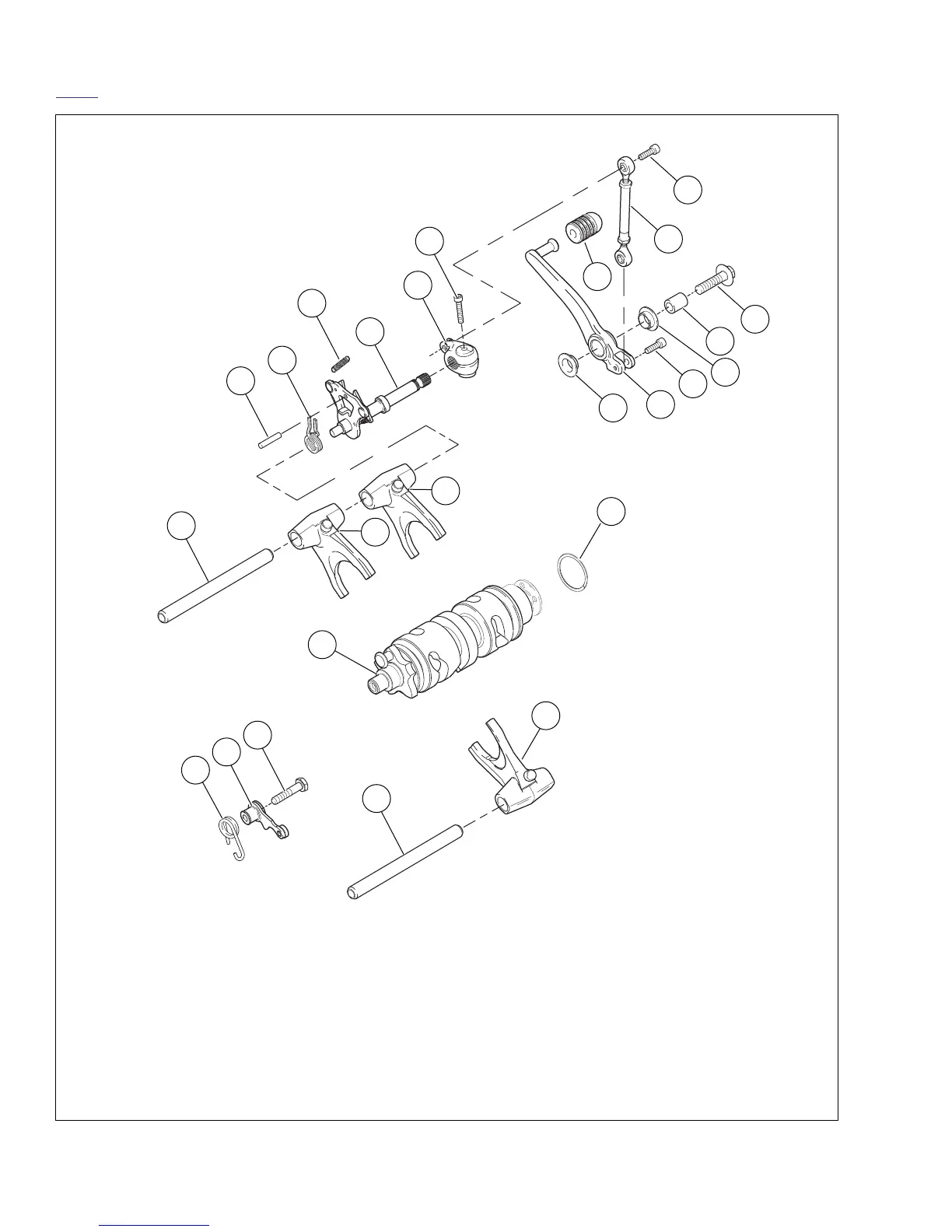

Figure 6-60. Shifter Mechanism
1. Spring, detent
2. Detent spring sleeve assembly
3. Screw, detent assembly
4. Shaft, shifter forks (2)
5. Fork assembly, shifter (1st-2nd)
6. Shifter cam assembly
7. Retaining ring
8. Fork assembly, shifter (3rd-5th)
9. Fork assembly, shifter (4th)
10. Pin, shifter stop
11. Spring, shifter return
12. Spring, extension
13. Shifter lever assembly
14. Lever, engine
15. Bolt, engine lever
16. Bearing, shift lever assembly (2)
17. Shift lever
18. Bolt, linkage assembly
19. Sleeve, shift/brake lever
20. Bolt, shift lever
21. Pad, rubber, shift lever
22. Linkage assembly, shifter
23. Bolt, linkage assembly
