FRONT FAIRING, WINDSHIELD, AND MIRRORS 2.37
REMOVAL
1. See Figure 2-124. Remove two center (4) and four side
windscreen fasteners (3) to remove windshield (1).
2. Remove mirrors (2).
3. Remove turn signals (6, 7). See 7.14 TURN SIGNALS
and remove front fairing (5).
INSTALLATION
1. See Figure 2-124. Position fairing (5) onto fairing support
bracket and install turn signals (6, 7). See 7.14 TURN
SIGNALS.
2. Install mirrors (2) with fasteners and tighten to
72-96 in-lbs (8-11 Nm).
3. Install two center (4) and four side windscreen
fasteners (3).

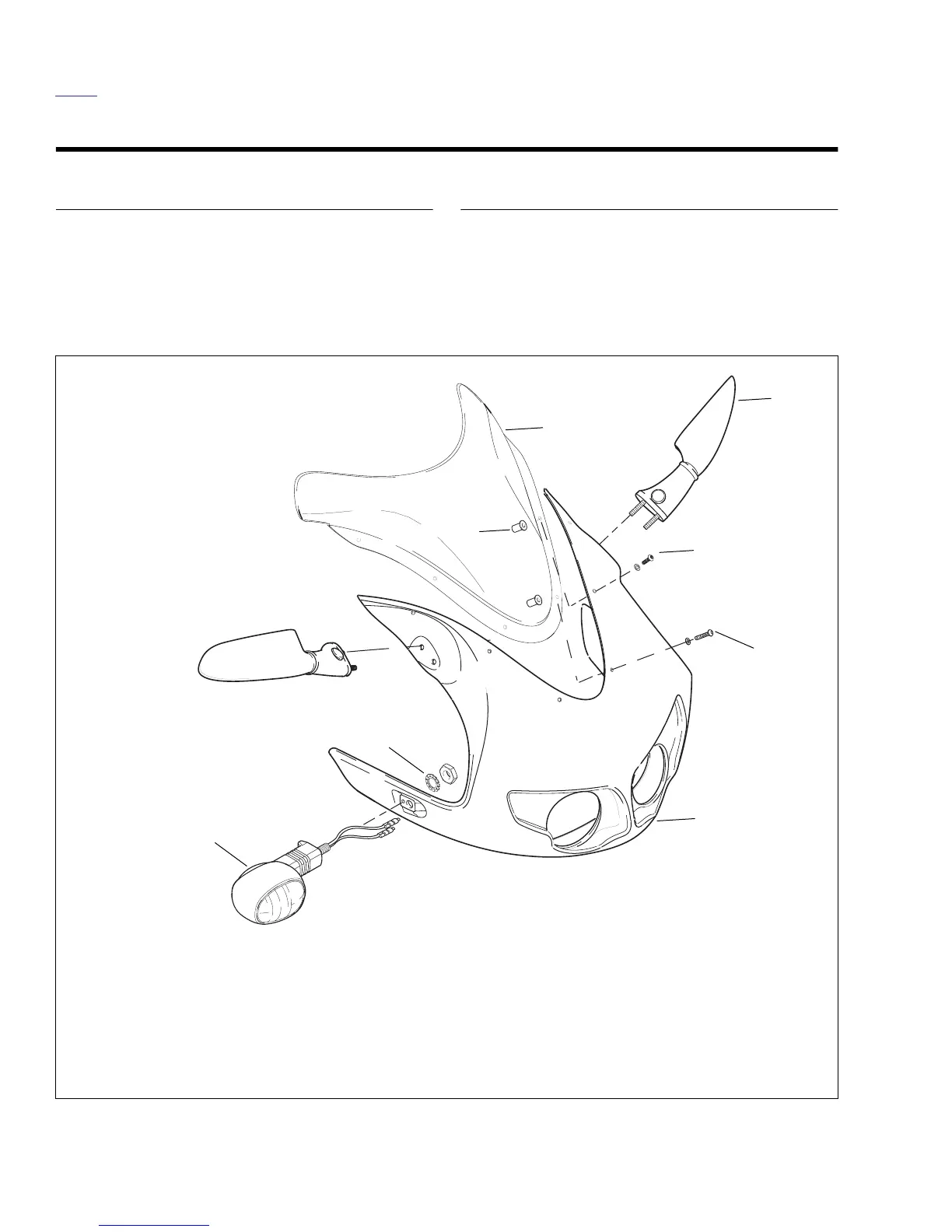

Figure 2-124. Front Fairing and Windscreen
b0967x2x
1. Windshield
2. Mirrors
3. Side windshield fastener
4. Center windshield fastener
5. Front fairing
6. Turn signal
7. Turn signal fastener
8. Well nut
