INTAKE COVER ASSEMBLY 2.34
REMOVAL
1. Remove seat. See 2.38 SEAT.
2. See Figure 2-118. Remove fasteners and nylon washers
(2).
3. Remove intake cover assembly (1).
INSTALLATION
1. Position intake cover assembly over top of airbox cover.
2. See Figure 2-118. Start the front two fasteners (2) with
nylon washers.
3. See Figure 2-118. Secure intake cover assembly (1) with
fasteners and nylon washers (2). Tighten to 12-36 in-lbs
(1-4 Nm).
NOTE
Front screws go in at a slight angle.
11WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
4. Install seat. See 2.38 SEAT.

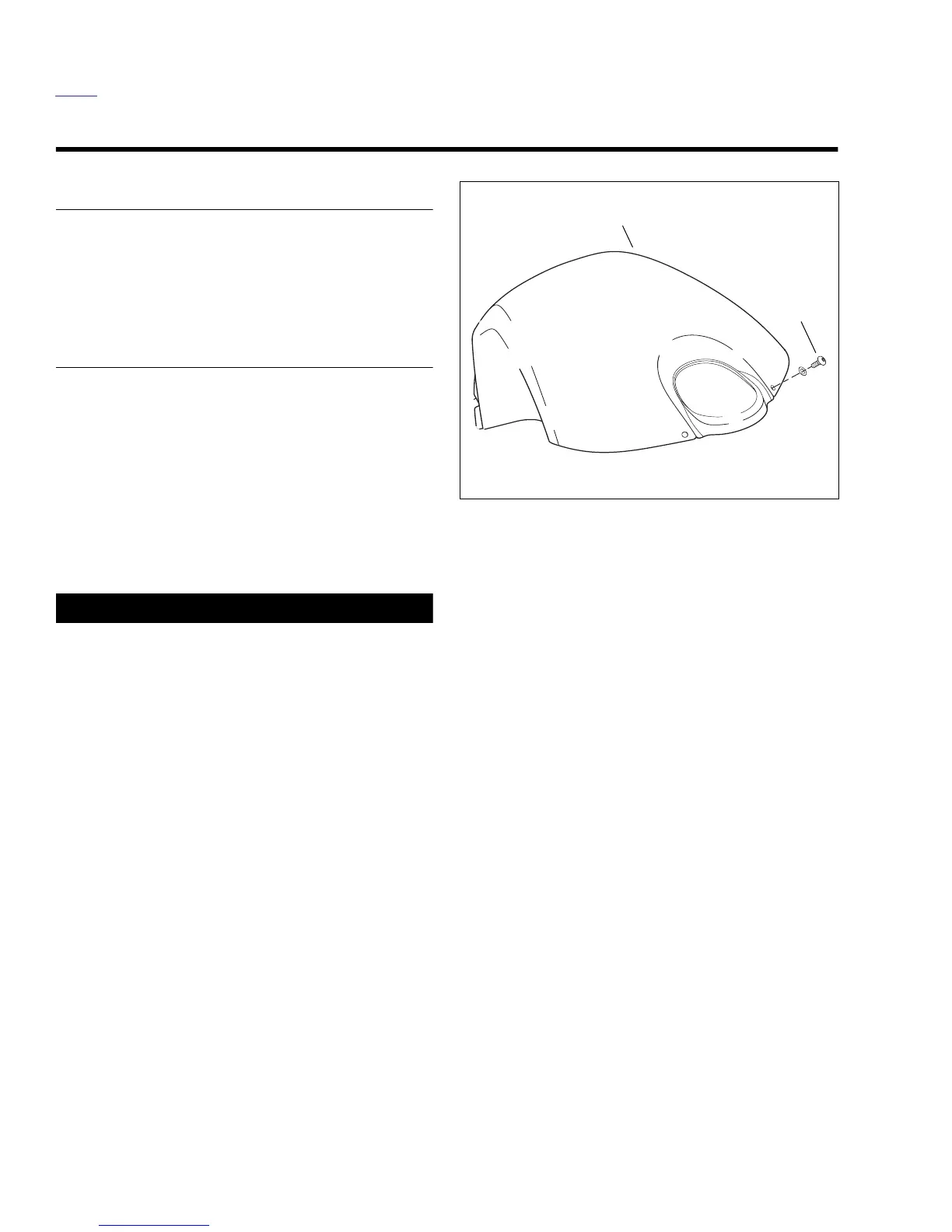

Figure 2-118. Intake Cover Assembly
b0981x2x
1
2
1. Intake cover assembly
2. Intake cover fasteners
