MAIN FUSE AND FUSES 7.22
GENERAL
Buell motorcycles feature two components which protect the
electrical system.
Fuses

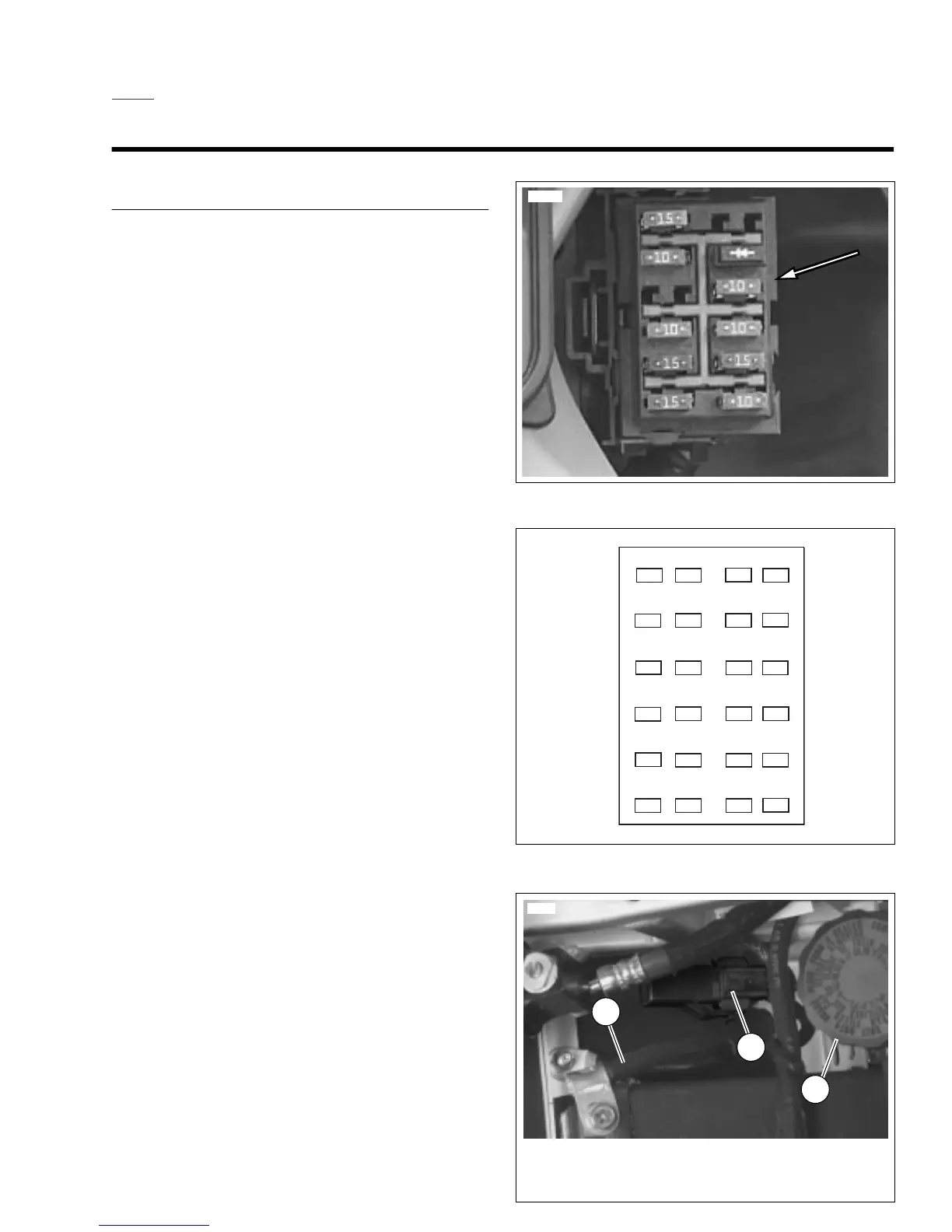

See Figure 7-73.The covered fuse block is behind the fairing
on the right hand side of the motorcycle.
See Figure 7-74. The lights, key switch, brake/horn and igni-
tion fuses are rated at 15 Amps. The ECM, cooling fan and
accessory fuses are rated at 7.5 Amps.
Always investigate the cause of blown fuses before replacing
them.
Main Fuse
See Figure 7-75. The 30 Amp main fuse is located under the
seat.
To disable the motorcycle’s ignition system, pull the main fuse
up and out of the main fuse holder.
Figure 7-73. Fuse Block
Figure 7-74. Fuse Block
Figure 7-75. 30 A Main Fuse Location
10960
19
20
21
22
23
24
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
11
Spare
Diode
Bk/Hn/Mflr
Fan
IGN
Acces.
Key Sw
Lights
ECM
Spare
Empty
Empty
b1165x4x
8464
1. Negative battery cable
2. Main fuse holder
3. Rear brake fluid reservoir
