4-14 2005 Buell Firebolt: Fuel System
HOME

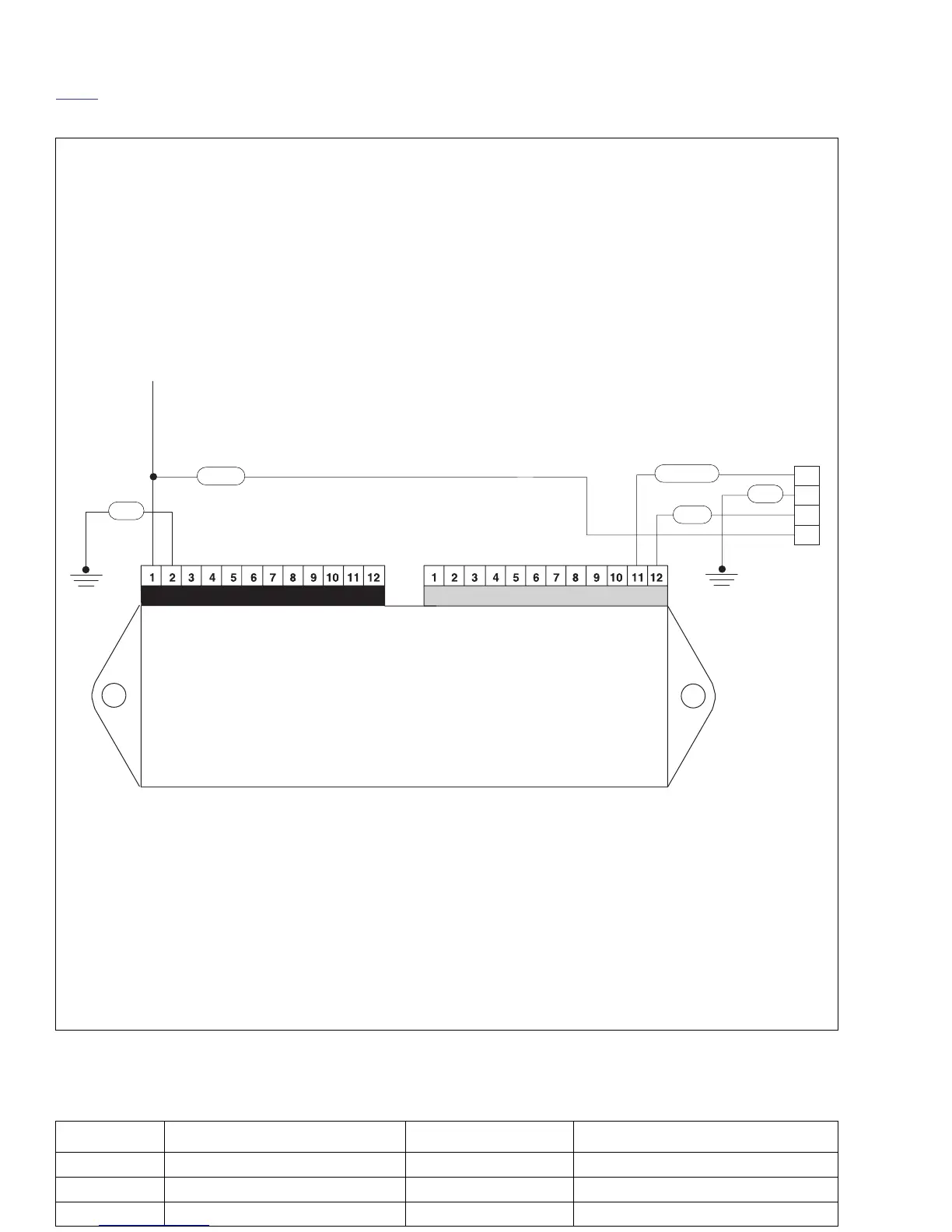

Figure 4-12. Diagnostic Check
1
2
3
4
Electronic Control Module (ECM)
Connector [10]
Connector [11]
LTGN/R
GY
BK
BK
V/R
Data
Link
[91A]
b1080a4x
To
IGN
relay
Table 4-8. Wire Harness Connectors in Figure 4-12.
NO. DESCRIPTION TYPE LOCATION
[10] ECM (black) 12-place Deutsch in fairing
[11] ECM (gray) 12-place Deutsch in fairing
[91A] data link 4-place Deutsch beneath left side fairing
