4-100 2005 Buell Firebolt: Fuel System
HOME
REMOVAL
1WARNING1WARNING
To prevent accidental vehicle start-up, which could
cause death or serious injury, disconnect negative (-)
battery cable before proceeding. (00048a)
1. Disconnect negative battery cable.
2. Remove intake cover assembly. See 2.34 INTAKE
COVER ASSEMBLY.
3. Remove Airbox. See 4.45 AIRBOX.
4. See Figure 4-71. Disconnect the spark plug cables from
the coil plug posts (1, 5).
5. Detach connector (3) [83].
6. Remove coil fasteners (2).
INSTALLATION
NOTE
To ease installation, install spark plug cables to ignition coil
first.
1. Connect spark plug cables to ignition coil.
2. See Figure 4-71. Attach coil to frame with fasteners (2).
Tighten to 120-144
in
-lbs
(13.6-16.3 Nm).
3. Attach front and rear spark plug cables to ignition coil
posts.
4. Attach connector (3) [83].
5. Install ram air scoop assembly. See 2.35 AIR SCOOPS.
6. Install Airbox. See 4.45 AIRBOX.
7. Install intake cover assembly. See 2.34 INTAKE COVER
ASSEMBLY.
8. Connect negative battery cable.

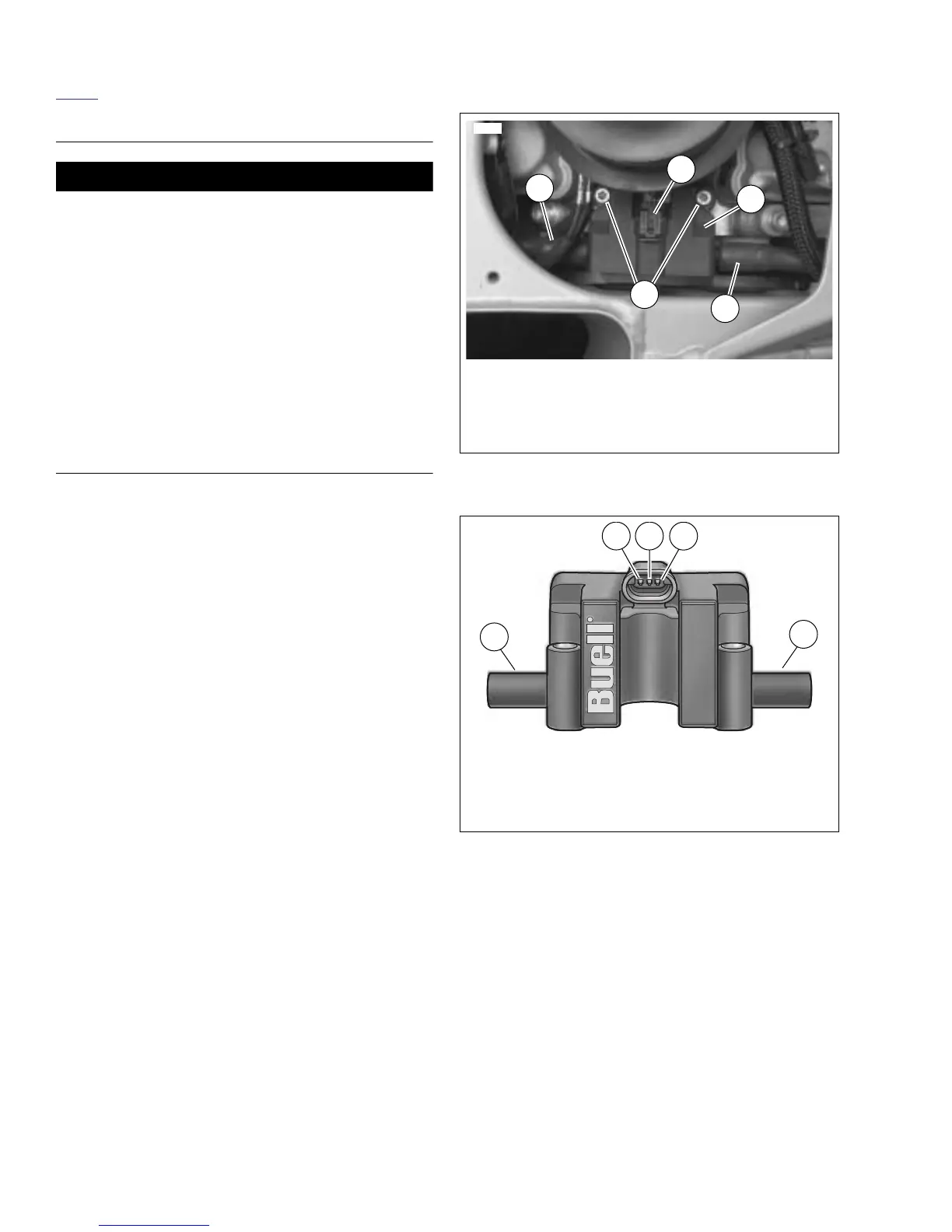

Figure 4-71. Ignition Coil Location
Figure 4-72. Ignition Coil
8843
1
3
2
1. Front cylinder post
2. Fasteners
3. Coil connector [83]
4. Coil
5. Rear cylinder post
5
4
1
1. Rear cylinder post
2. Coil pin A (rear cylinder)
3. Coil pin B (12 VDC)
4. Coil pin C (front cylinder)
5. Front cylinder post
2 3
4
5
b0993x4x
