2005 Buell Firebolt: Maintenance 1-47
HOME
ADJUST TIMING
1. See Figure 1-48. Remove timing plate cover.
a. Drill rivets holding the timing plate cover.
b. Using a hook, remove timing plate cover.
2. See Figure 1-51. If timing is advanced (mark appears on
left side of window) rotate timing plate counterclockwise.
3. Check timing. See CHECKING STATIC TIMING.
4. See Figure 1-52. If timing is retarded (mark appears on
right side of window) rotate timing plate clockwise.
5. Recheck timing.

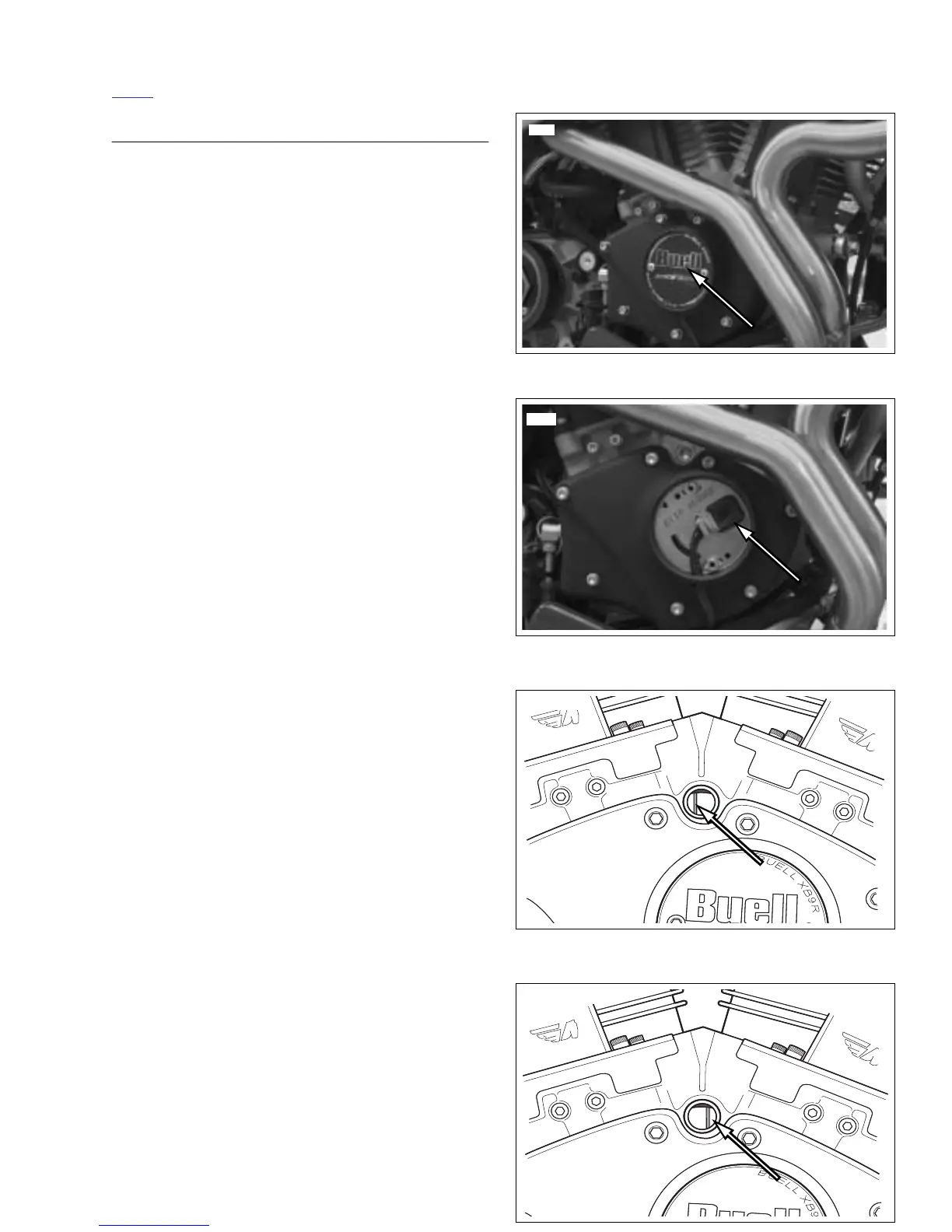

Figure 1-49. Timer Cover
Figure 1-50. Cam Position Sensor
Figure 1-51. Advanced Timing
Figure 1-52. Retard Timing
