2005 Buell Firebolt: Electrical 7-47
HOME
INSTALLATION
Front
1. See Figure 7-50. Insert bullet connectors and wiring
through hole in fairing (5) and fairing support bracket (4).
2. Install turn signal (1) using lockwasher (2) and fastener
(3). Tighten fastener to 25-28 in-lbs (2.8-3.2 Nm).
3. Attach bullet connectors on turn signal wires as shown in
Figure 7-49.
1WARNING1WARNING
Be sure that all lights and switches operate properly
before operating motorcycle. Low visibility of rider can
result in death or serious injury. (00316a)
4. Check turn signals for proper operation. If operation fails,
reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to ON.
b. Activate left turn signals using switch on left handle-
bar. Front and rear left turn signals must flash.
c. Activate right turn signals using switch on left han-
dlebar. Front and rear right turn signals must flash.
d. Turn ignition key switch to OFF.
Rear
1. See Figure 7-52. Insert bullet connectors through license
plate bracket (4) and tail section (7).
2. Install reflector bracket (3).
a. Place license plate bracket into position over
threads on turn signal (1).
b. Be sure tab on turn signal fits into hole in reflector
bracket and tab on reflector bracket fits into hole in
license plate bracket.
3. Attach turn signal using lockwasher (5) and fastener
(6).Tighten fastener to 25-28 in-lbs (2.8-3.2 Nm).
4. Attach bullet connectors on turn signal wires as shown in
Figure 7-52.
1WARNING1WARNING
Be sure that all lights and switches operate properly
before operating motorcycle. Low visibility of rider can
result in death or serious injury. (00316a)
5. Check turn signals for proper operation. If operation fails,
reread procedure and verify that all steps were per-
formed.
a. Turn ignition key switch to ON.
b. Activate left turn signals using switch on left handle-
bar. Front and rear left turn signals must flash.
c. Activate right turn signals using switch on left han-
dlebar. Front and rear right turn signals must flash.
d. Turn ignition key switch to OFF.
1WARNING1WARNING
After installing seat, pull upward on front of seat to be
sure it is in locked position. While riding, a loose seat can
shift causing loss of control, which could result in death
or serious injury. (00070a)
6. Install seat. See 2.38 SEAT.

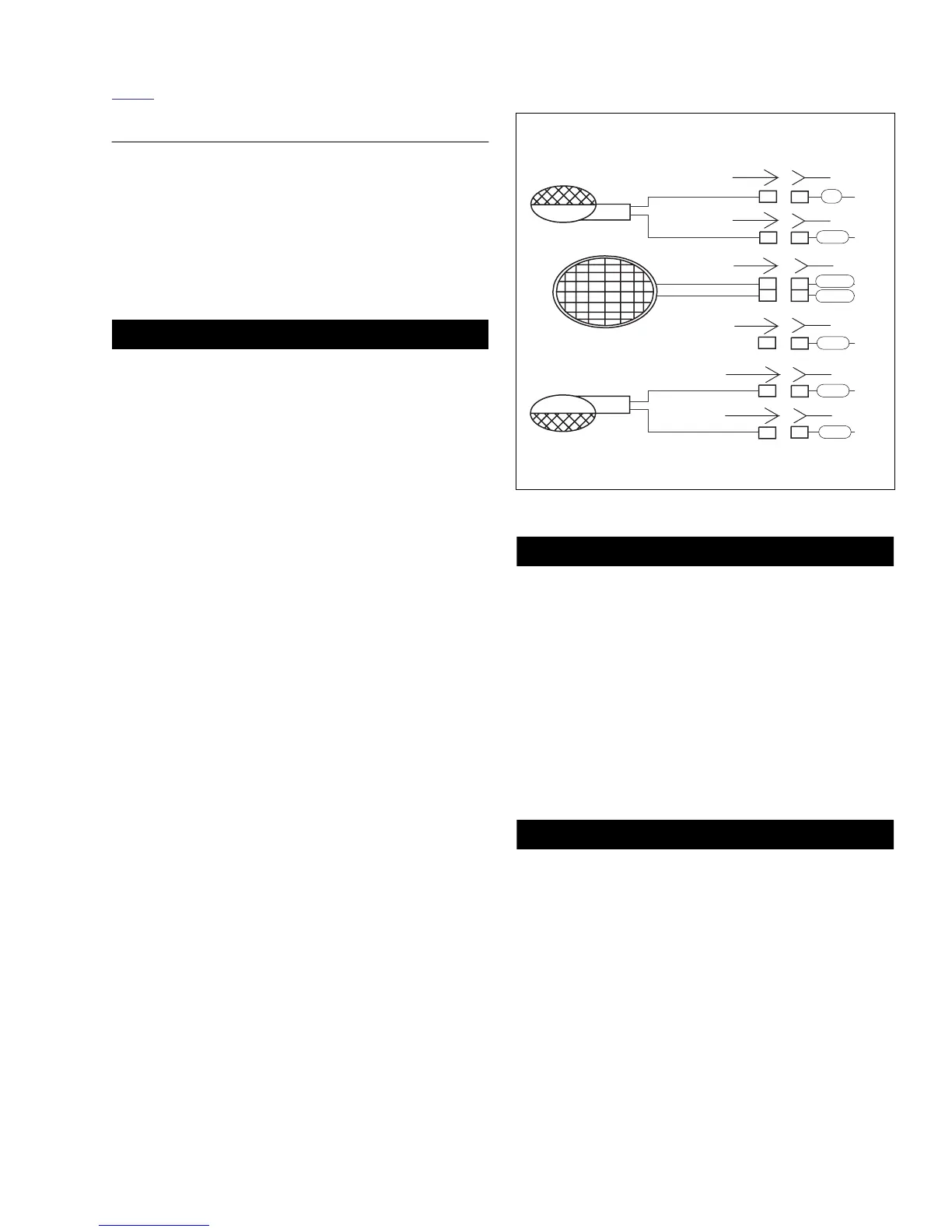

Figure 7-52. Rear Turn Signal Connections
1
1
2
2
2
2
1
1
1
2
1
2
1
1
[19A]
[93A] [93B]
[93B]
[93A]
[18A] [18A]
[18A]
[18A]
[19A]
[19B]
[19B]
Right turn signal
Tail lamp
b1099x7x
Right turn signal
V
BK
BK
BN
Tail lamp ground
BK
O/W
R/Y
