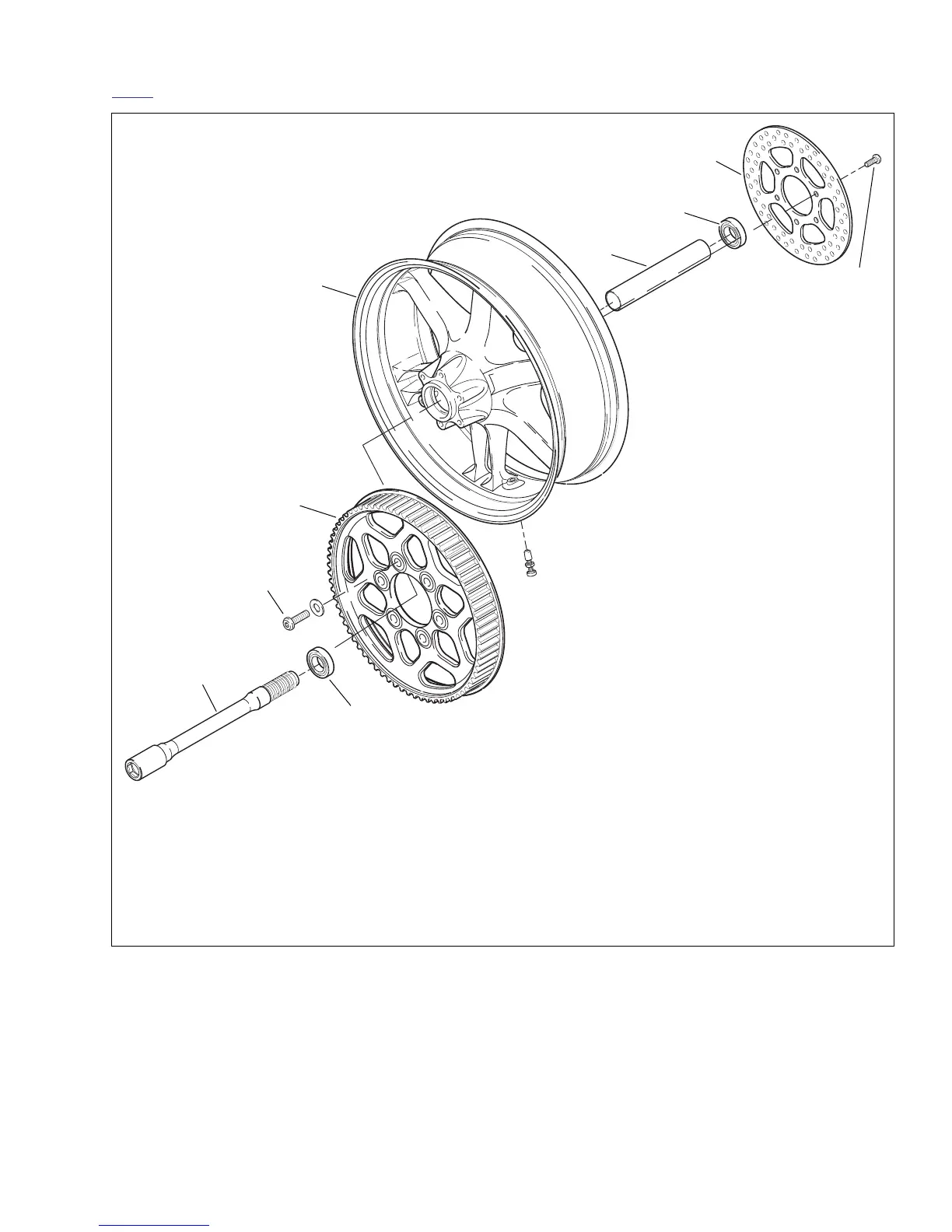

Figure 2-22. Rear Wheel Assembly
1. Rotor mounting fastener (6)
2. Brake rotor
3. Wheel bearing
4. Wheel spacer
5. Wheel
6. Sprocket
7. Sprocket fastener
8. Axle
b0936x2x
1
3
5
4
3
2
6
7
8
