2-34 2005 Buell Firebolt: Chassis
HOME

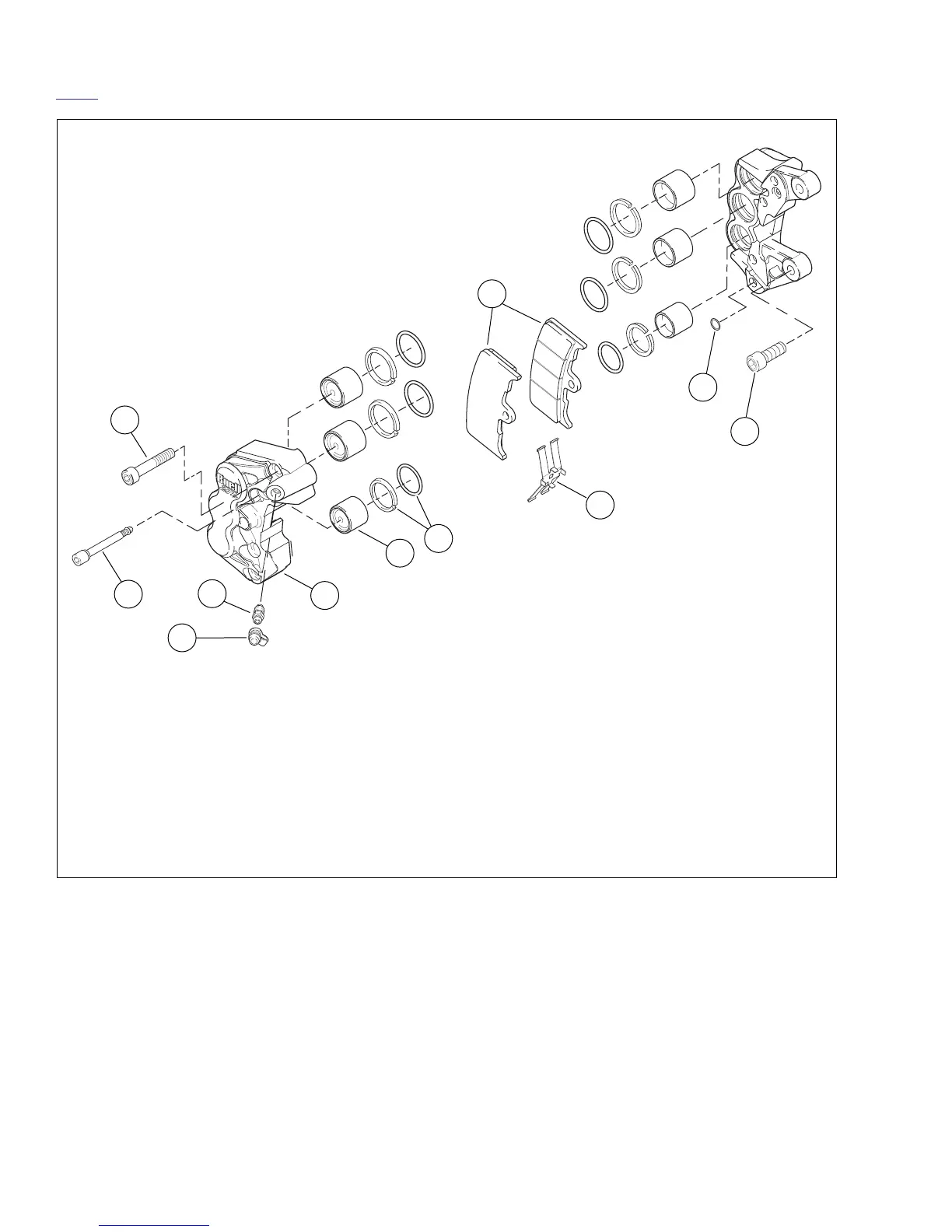

Figure 2-47. Front Caliper Assembly
b0976x2x
1. Pin hanger set
2. Brake bleeder
3. Bleeder cap
4. Caliper
5. Piston
6. Piston o-rings
7. Pad spring
8. Small o-ring
9. Caliper mounting fasteners
10. Brake pads
11. Caliper fasteners
5
3
2
1
11
4
6
7
8
9
10
