2.

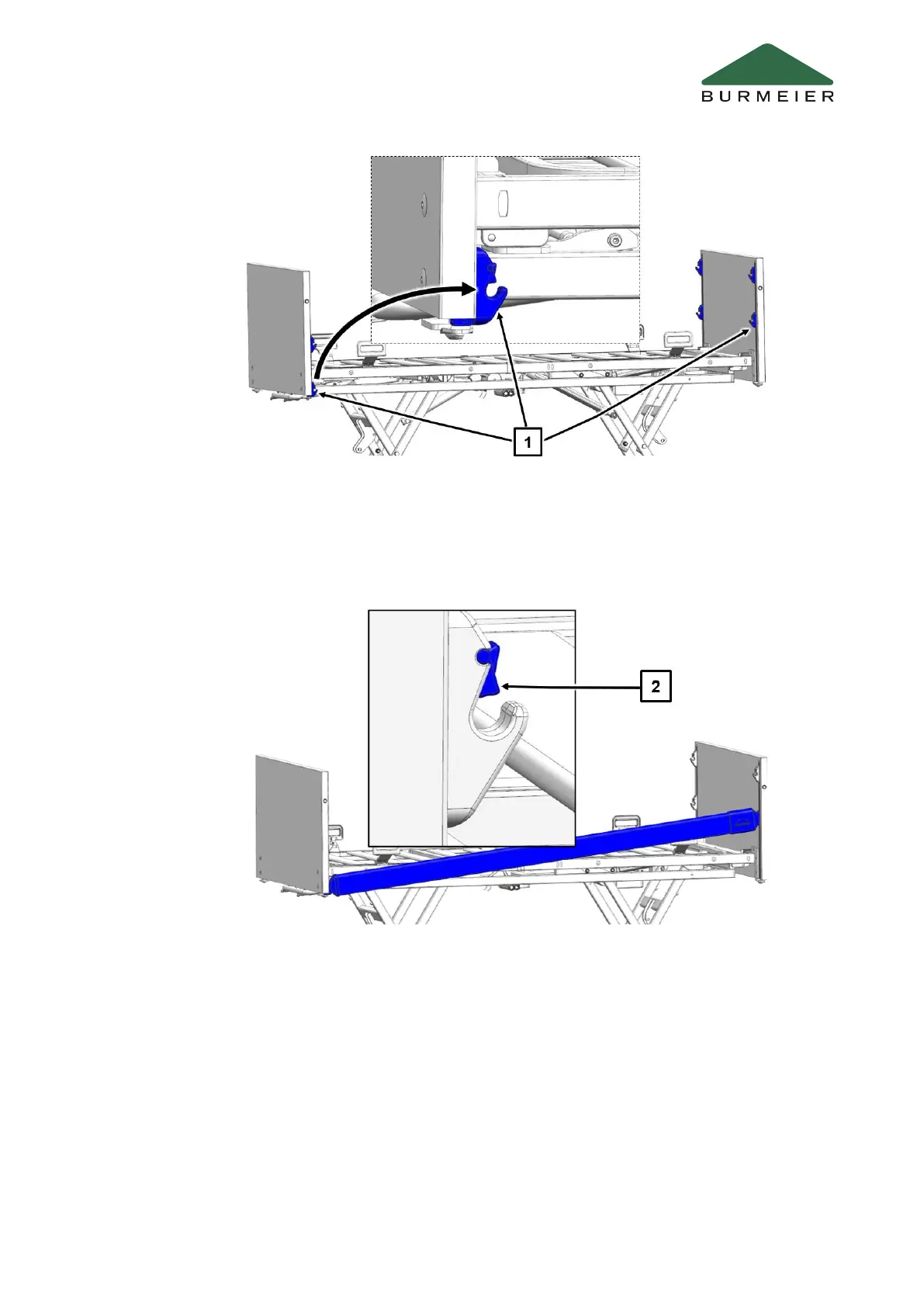

Insert one end of the bar into the lower holding fixture (at the head end).
3.
Insert the other end of the bar into the lower holding fixture (at the foot end).
•
The bar must firmly click into place with the aid of the release button [2].
•
Make sure that the bar is properly engaged by moving it up and down by hand.
4.
Repeat the last few steps to attach the second, third and fourth bars.
Assembling the Care Bed
Part B: Operator and Technical Personnel 25
