6 | Electrical Connection
14 | 40 Instruction Manual MINK MV 0500-0600 B_EN_en

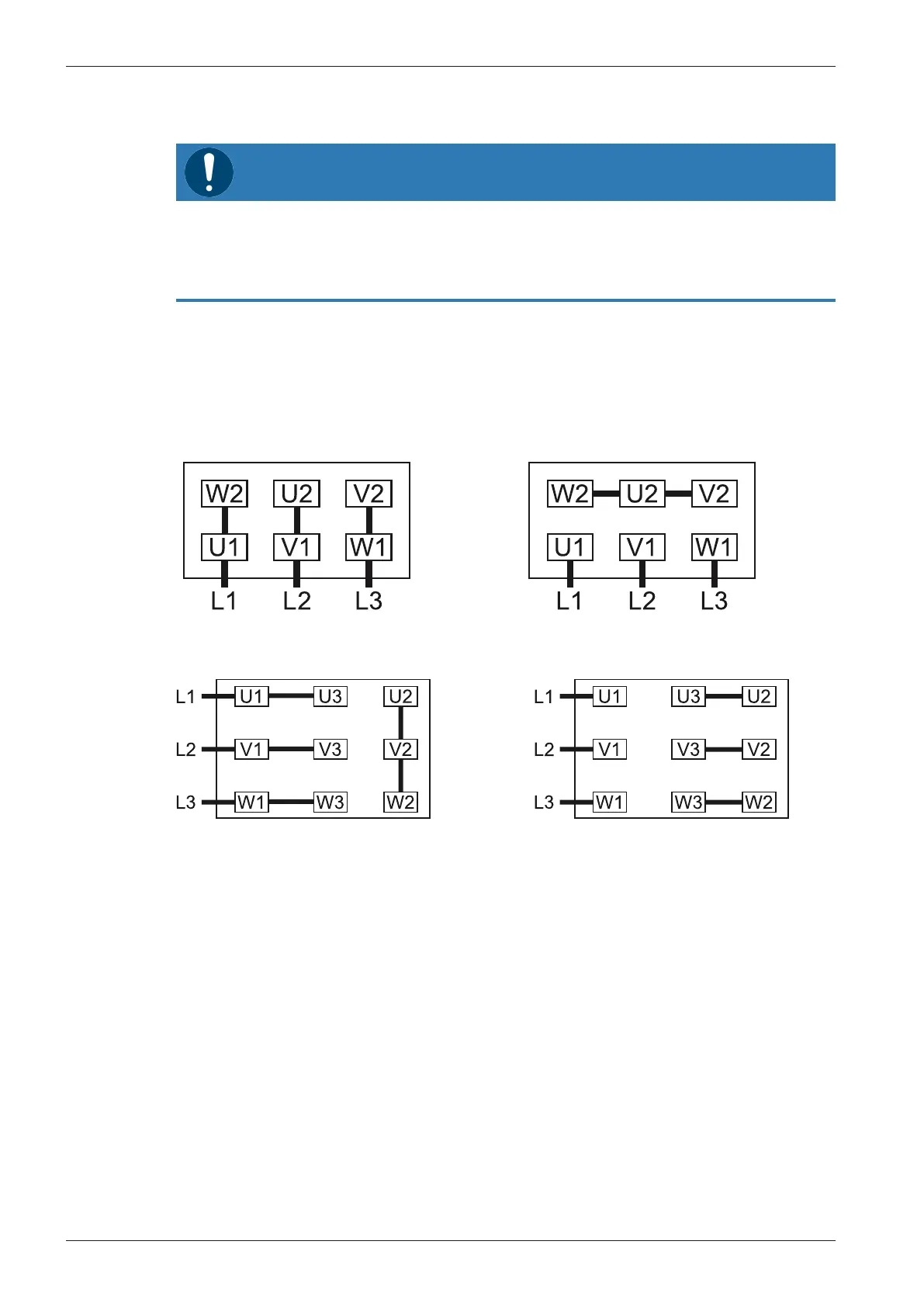

6.2 Wiring Diagram Three-Phase Motor
NOTICE
Incorrect direction of rotation.
Risk of damage to the machine!
● Operation in the wrong direction of rotation can destroy the machine in a short time! Prior to
start-up, ensure that the machine is operated in the right direction.
● Determine the intended direction of rotation with the arrow (stuck on or cast).
● Jog the motor briefly.
If the rotation of the motor must be changed:
● Switch any two of the motor phase wires.
Delta connection (low voltage): Star connection (high voltage):
Double star connection, multi-voltage motor
with 9 pins (low voltage):
Star connection, multi-voltage motor with 9
pins (high voltage):
