7.1.4 Pressure Control
NOTICE
Changing of any other parameters than described below.
Risk of damage to the machine!
● Do not change any other parameter than described below.
NOTE: VSD parameter settings for pressure control
– MV 0500 B - T434215938
– MV 0600 B - T434215939

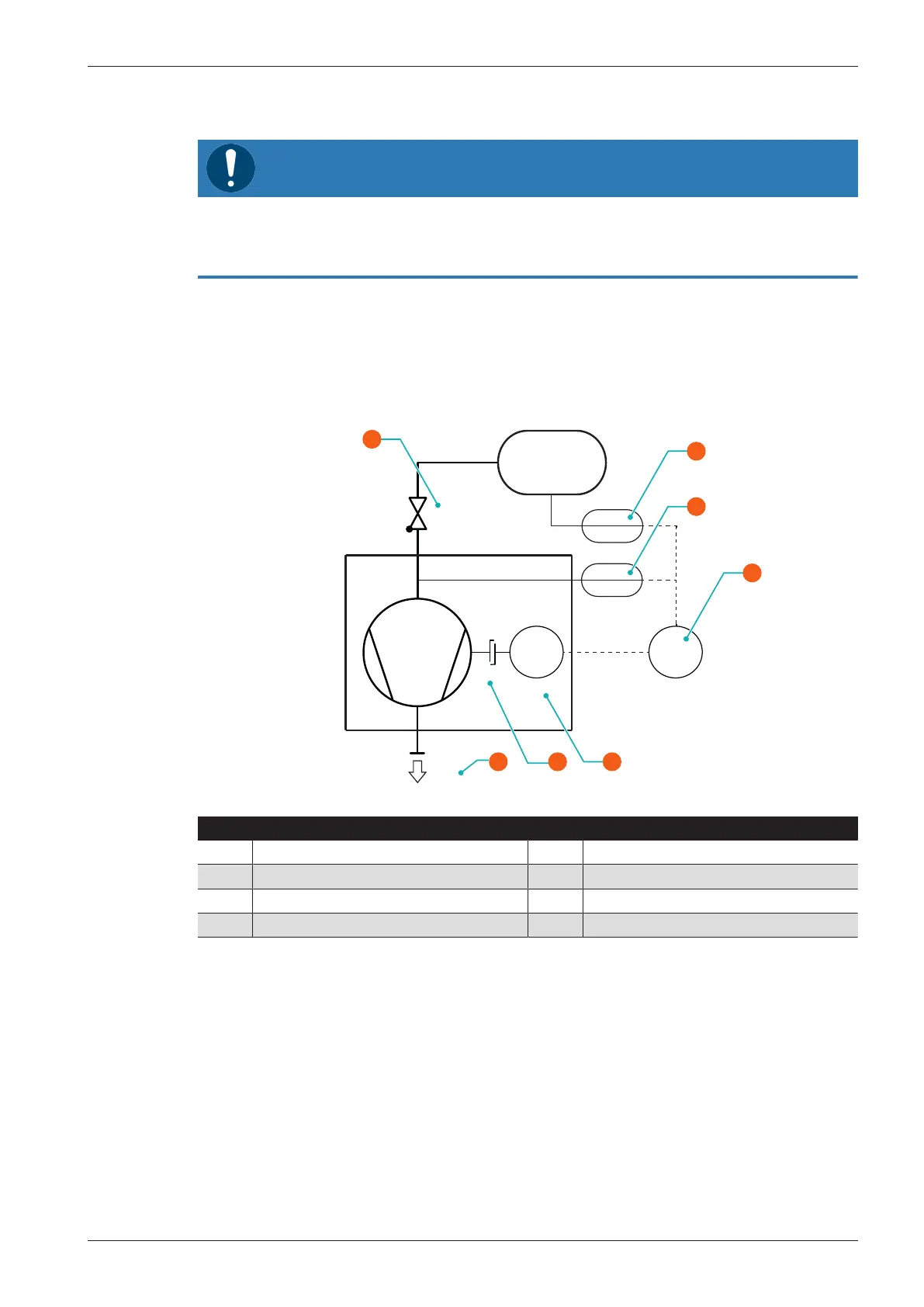

Piping and Instrumentation Diagram
PSA1
P
M
CPL
MOT
PSA2
P
OUT
VFD*
NRV
*also termed VSD
Process
process
(included)
inlet gas
1
2
3
4
567
Description
1 Non-return valve 2 Pressure transmitter 1
3 Pressure transmitter 2 4 Variable-frequency drive
5 Motor 6 Coupling
7 Discharge connection
