BUSCH MINK - Wiring Diagram Variable Speed Drive (VSD)

Electrical Connection | 6
Instruction Manual MINK MV 0500-0600 B_EN_en 15 | 40

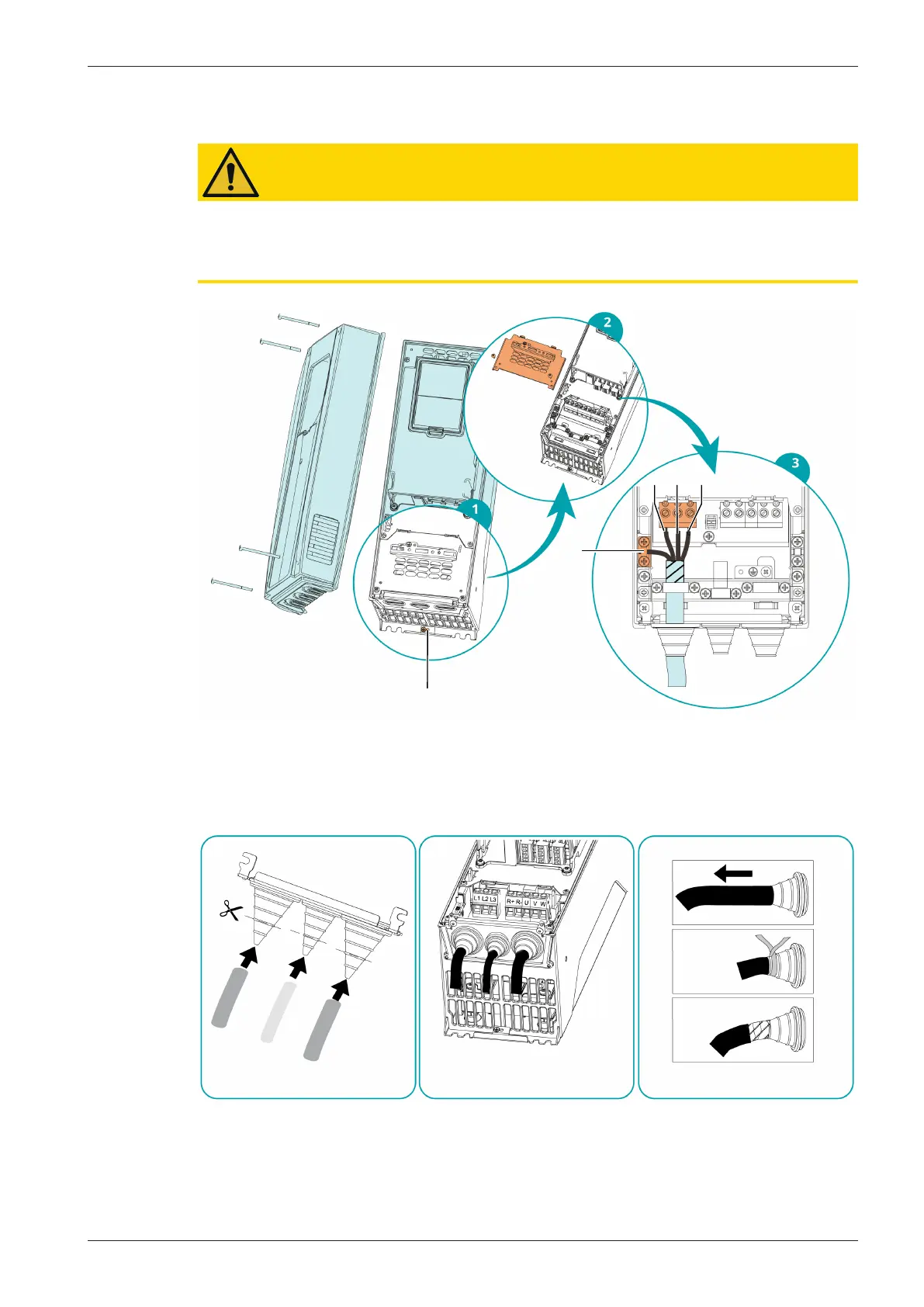

6.3 Wiring Diagram Variable Speed Drive (VSD)
CAUTION
The machine can start immediately when power is supplied.
Risk of inadvertent start-up!
● Make sure that a start-up will not lead to a dangerous situation.
L1
L2
L3
PE
PE2
The leakage current exceeds 3.5 mA (AC). According to EN 61800-5-1 an additional protective earth
conductor (PE2) must be provided:
● Connect the additional protective earth conductor (PE2). Use at least the same cross section as for PE.
Installation requirement for protection class IP54:
The cable and gasket must be secured against shifting.
● Use cable-tie or insulation-tape to secure the cable and gasket from shifting.
