5 | Installation
26 / 68 0870211676_RA0760A_PLUS_-0004_IM_en

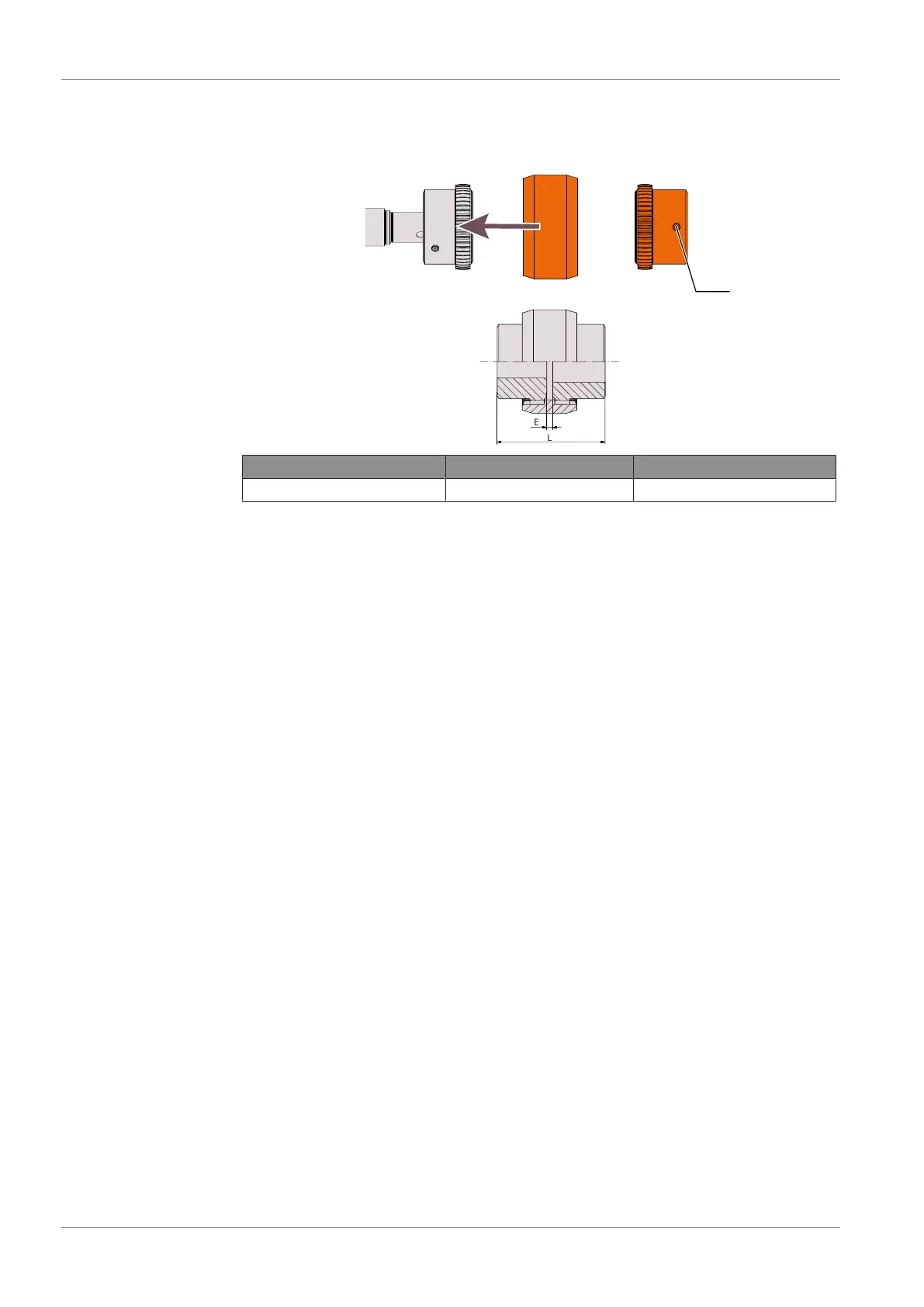

5.4 Fitting the Coupling
Coupling hub (machine side) Coupling hub (motor side)Coupling sleeve
Radial screw
Max. admissible
torque: 17 Nm
Coupling size Value “E” (mm) Value “L” (mm)
BoWex
®
M-65 4 114
In case of a machine delivery without motor:
• Fit the second coupling hub on the motor shaft (separately delivered).
• Axially adjust the sleeve in such a way until value "E" (or “L”) is reached.
• When the coupling adjustment is done, lock the coupling hub by tightening the
radial screw.
• Mount the motor on the machine by including the coupling sleeve.
For further coupling information, go to www.ktr.com and download the instruction
manual of the BoWex
®
coupling.
