In Operation | 7
0870211676_RA0760A_PLUS_-0004_IM_en 41 / 68
PLUS Pump control unit
Inlet Valve
command line
Customer side
Power line from
customer with
appropriate protection
L
N
Customer
Inlet valve
Customer
relay
24VDC from PLUS Pump
Max 1A
X1
KA1
X1 0VDC6
KA1
Y1
1
2

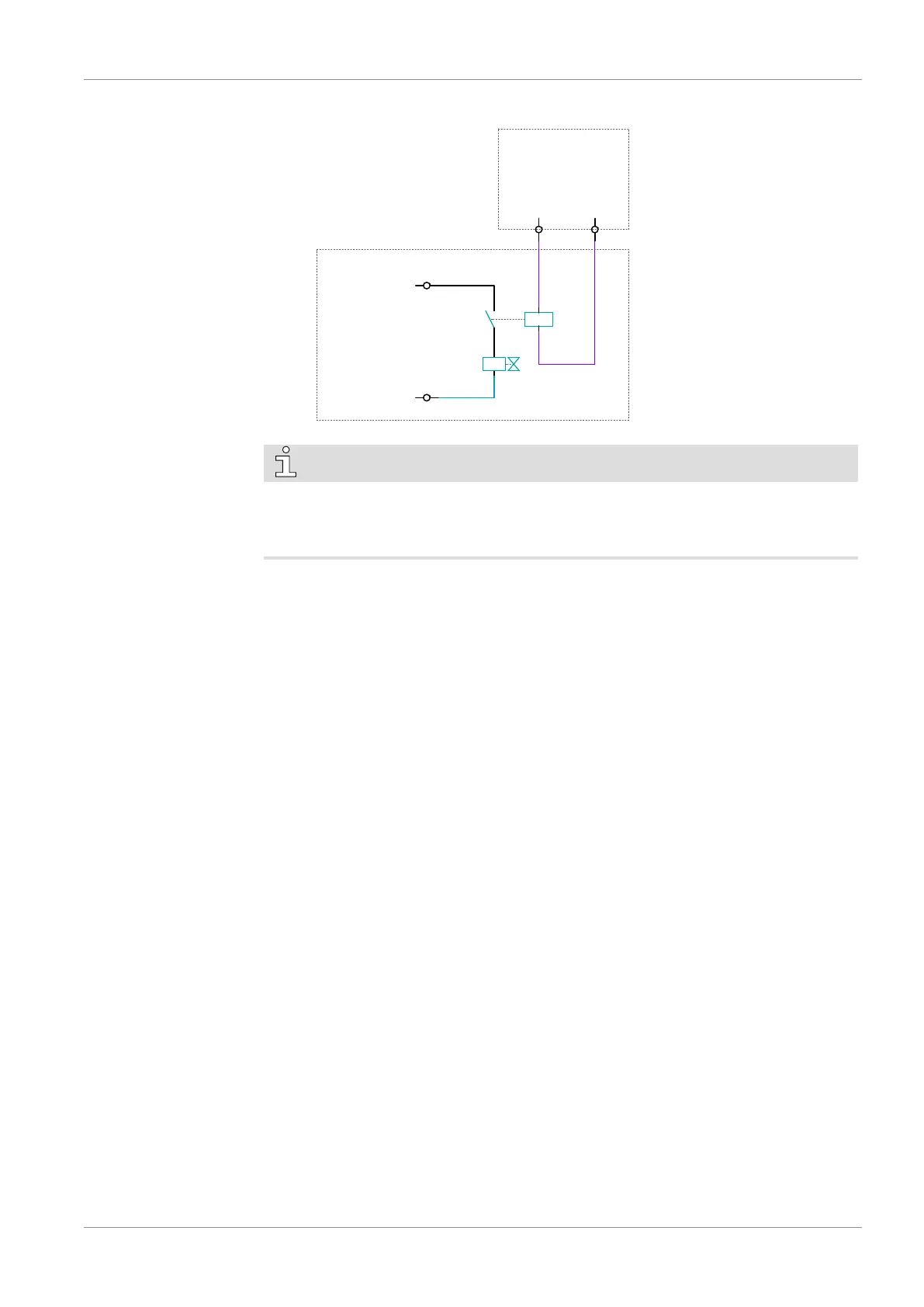

Inlet Valve Wiring Diagram
NOTE
The installation of an isolation valve at the vacuum pump inlet also requires the installa-
tion of an external pressure sensor to control the vacuum pump, see External Inlet Pres-
sure Sensor [►24].
