7 | In Operation
46 / 68 0870211676_RA0760A_PLUS_-0004_IM_en

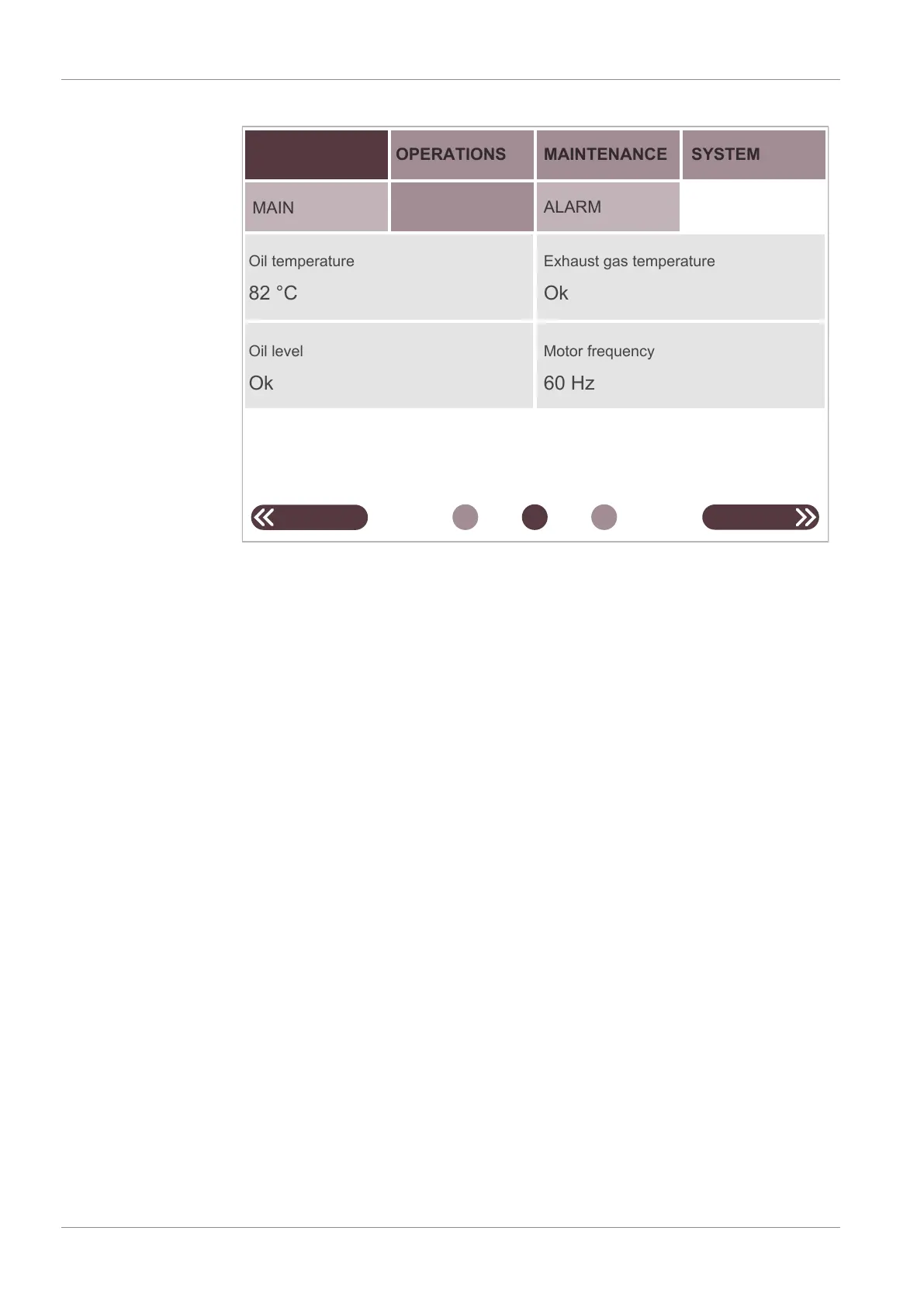

Screen 2
NEXT
PREVIOUS
HOME
MAIN
OPERATIONS
MONITORING
MAINTENANCE
SYSTEM
ALARM
Oil temperature
82 °C
Exhaust gas temperature
Ok
Oil level Motor frequency
Ok 60 Hz
Oil temperature:
Indicates the oil temperature, in case of a too high temperature a warning or an alarm
occurs, see Dysfunction [►51].
Exhaust gas temperature:
Indicates the exhaust gas temperature, in case of a too high temperature a warning or an
alarm occurs, see Dysfunction [►51].
Oil level:
Indicates the oil level state in the oil separator (OS) ► “Ok“ or “Not Ok”, in case of a
low oil level an alarm occurs, see Dysfunction [►51].
Motor Frequency:
Indicates the current drive frequency (in Hz).
