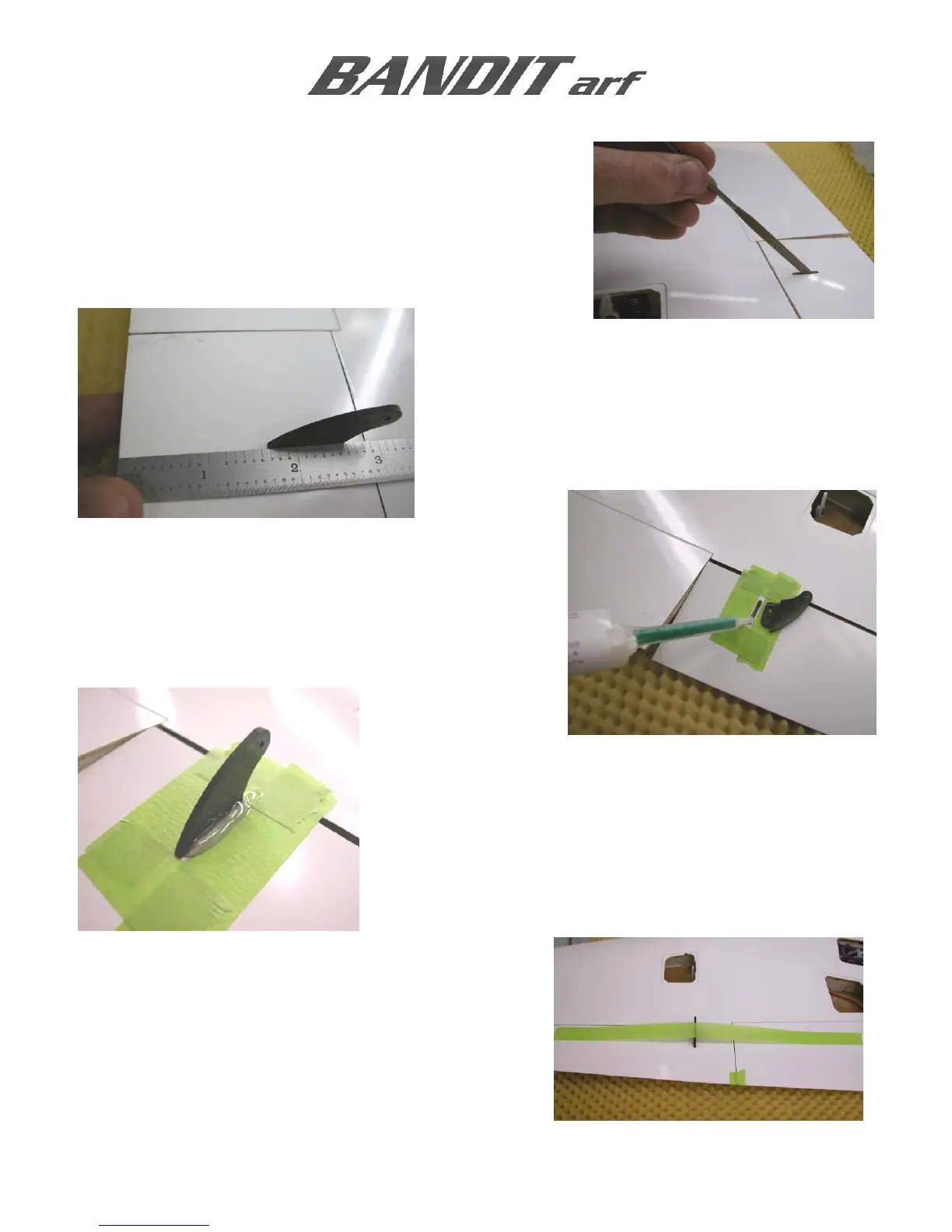

Use a small Perma-Grit flat file to adjust and fine-tune the
control horn slot.
The trailing edge of the aileron horn is designed to be
1.7” from the trailing edge of the aileron. Make sure the
horn flange sits flat on the skin surface.
Place masking tape around the perimeter of the slot;
leaving a 1/16” gap on the sides to allow for a fillet of
AeroPoxy.
Apply AeroPoxy into the slot and the holes on the base of the
control horn. Push the scuffed control horn into the surface,
and wipe the excess glue away leaving a small fillet.
Pull the surrounding tape from the control horn and clean
glue residue from the painted surface. Use a long piece
of masking tape stretched over the center of the control
horn to hold in position while the AeroPoxy cures.
