Assembly & Operation Manual
BVM © 2009 K5300-Current_manual-090808.doc Page 40 12/2/2009
NOTE: The red airlines connected to the brass micro air switch are reversed. Please refer to the Air
System Diagram for proper orientation.

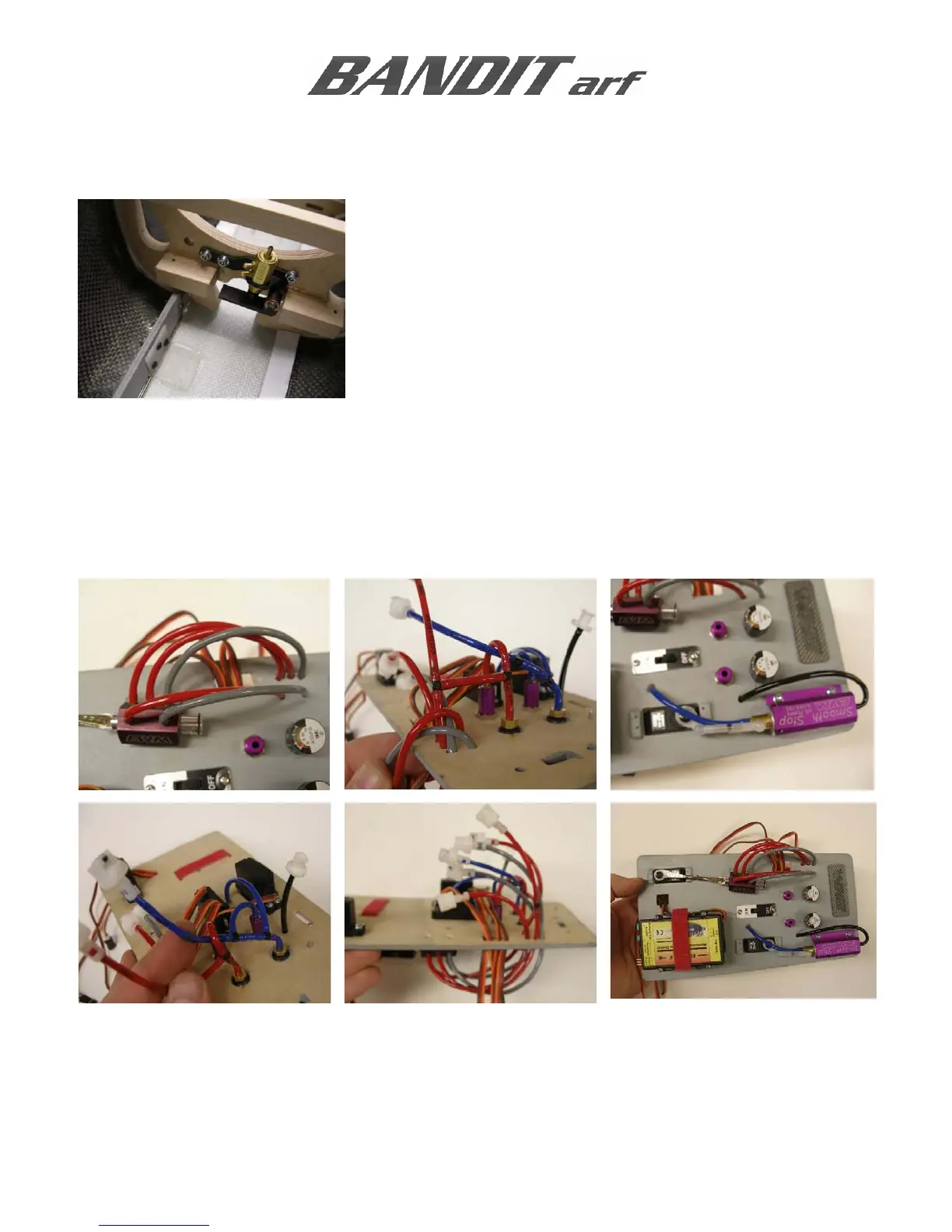

Trim the plastic arm as shown and orient the air fittings for the
best possible routing as shown in the photo.
MOUNTING THE NOSE GEAR
Mount the retract unit to the flex arms with 4-40 x 5/16” flat head screws.
FORWARD COMPARTMENT BOARD
