Assembly & Operation Manual
BVM © 2009 K5300-Current_manual-090808.doc Page 34 12/2/2009

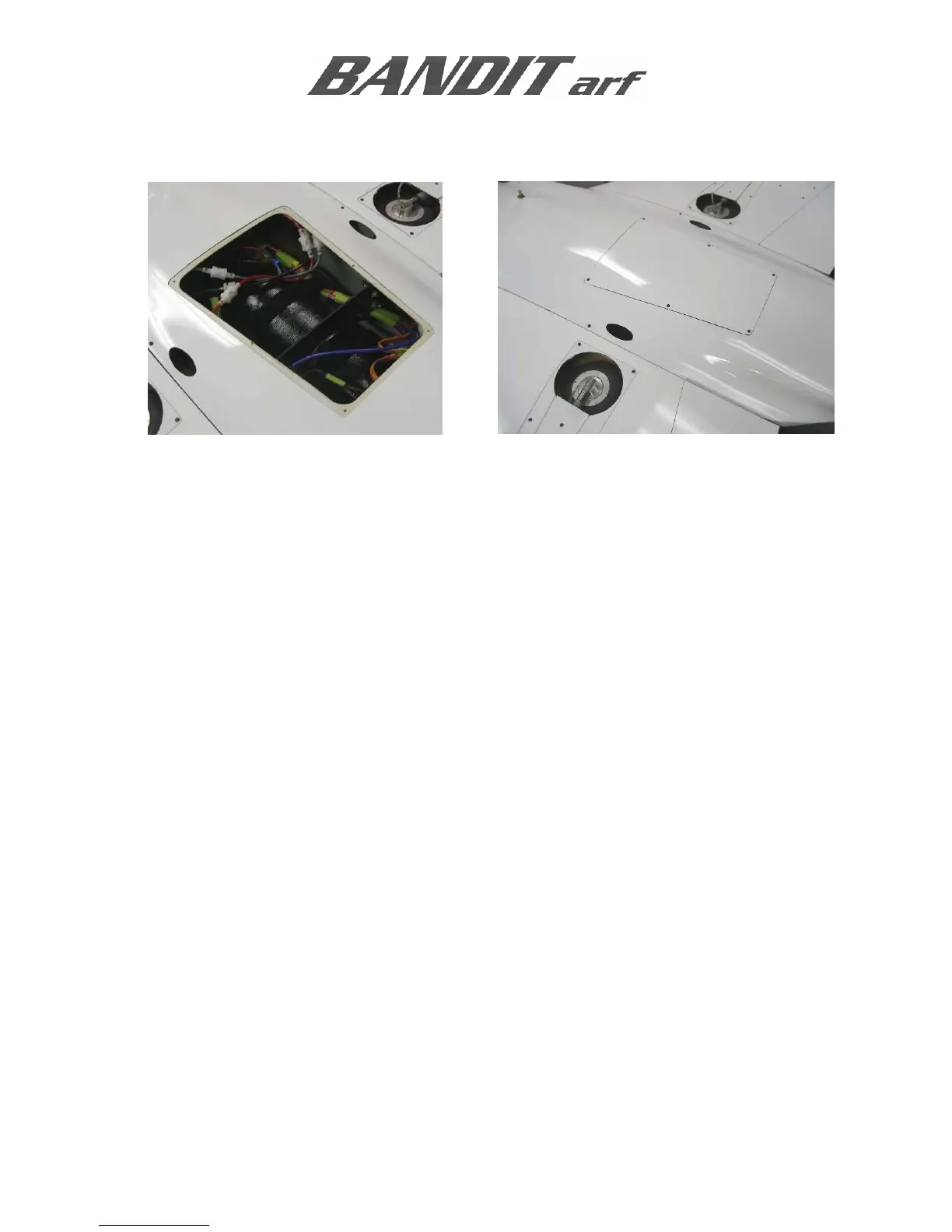

BELLY HATCH
Trim and fine-tune the fit of the belly hatch to the opening in the bottom of the fuselage.
Glue (6) 1/8” ply doubler tabs to the inside of the fuselage in the locations of the (6) attachment
screws. Use a 1/16” bit to drill (6) evenly spaced holes through the fiberglass hatch and plastic
mounting frame. Finish the fiberglass hatch using a clearance drill for the (6) button head attachment
screws.
