AIR SYSTEM

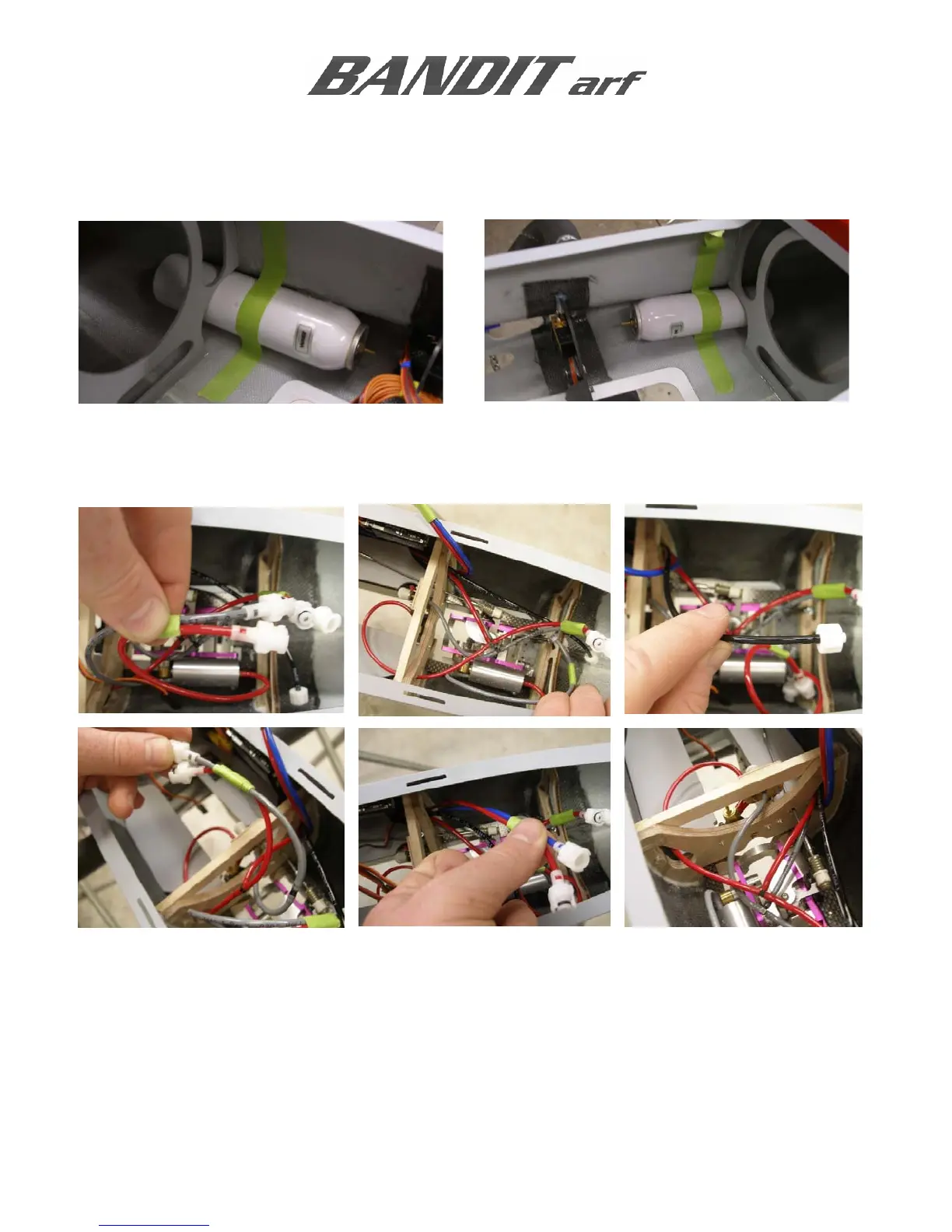

Mount the two air tanks behind the rear wing former. Use two dabs of ZAP-A-GOO, hold in place with
masking tape until cured.
Below are a series of photos that can be used for ideas to route air lines. On our first prototype, BVM
used additional air quick disconnects to allow the ECU tray to be removed quickly and easily without
cutting airlines.
