Assembly & Operation Manual
BVM © 2009 K5300-Current_manual-090808.doc Page 46 12/2/2009

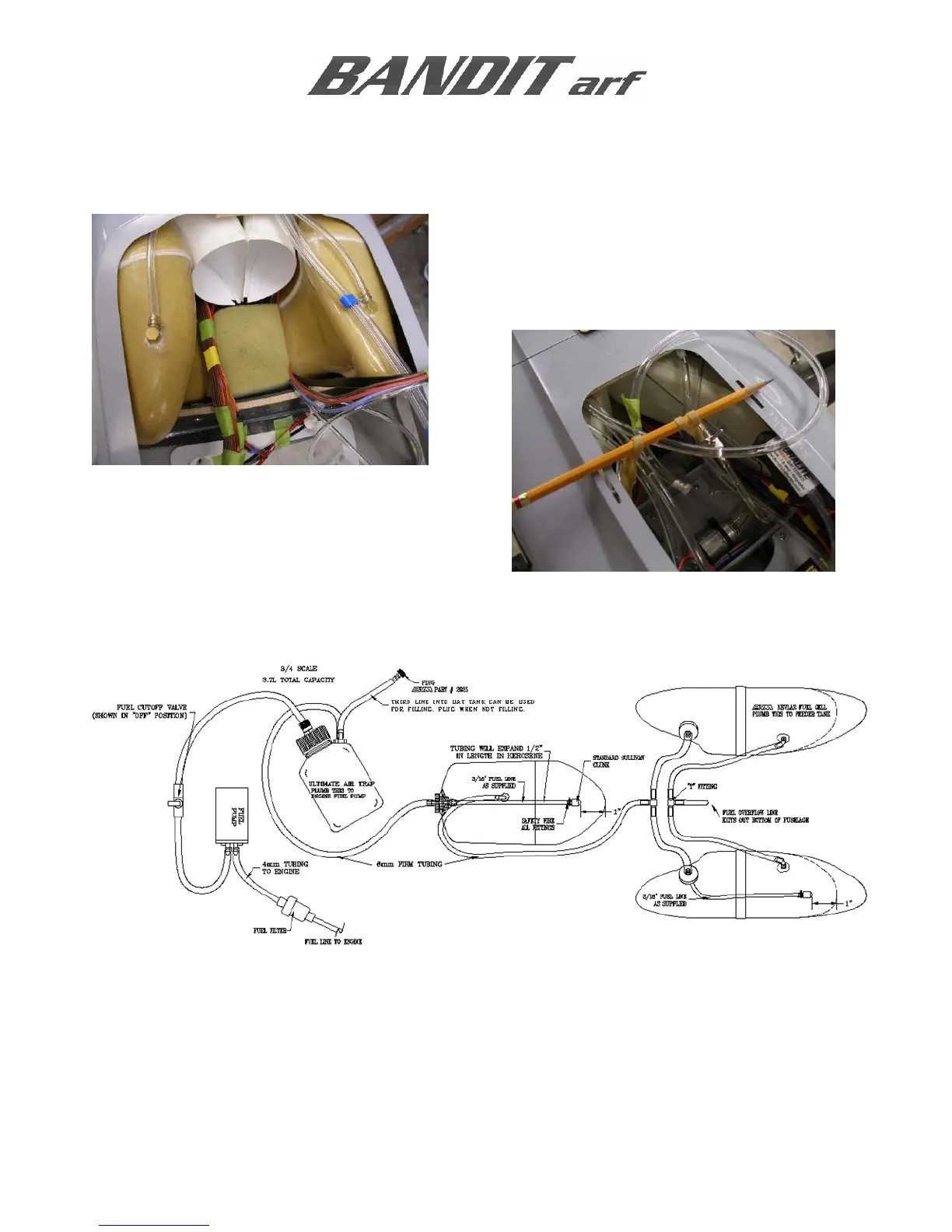

FUEL EQUIPMENT INSTALLATION
Trim length of inboard wing mounting bolts such that they do not press against the tanks.
Use a square piece of foam to block in the main fuel
cells.
Secure the header tank with (2) #64 rubber bands.
FUEL SYSTEM DIAGRAM
To Next Page
