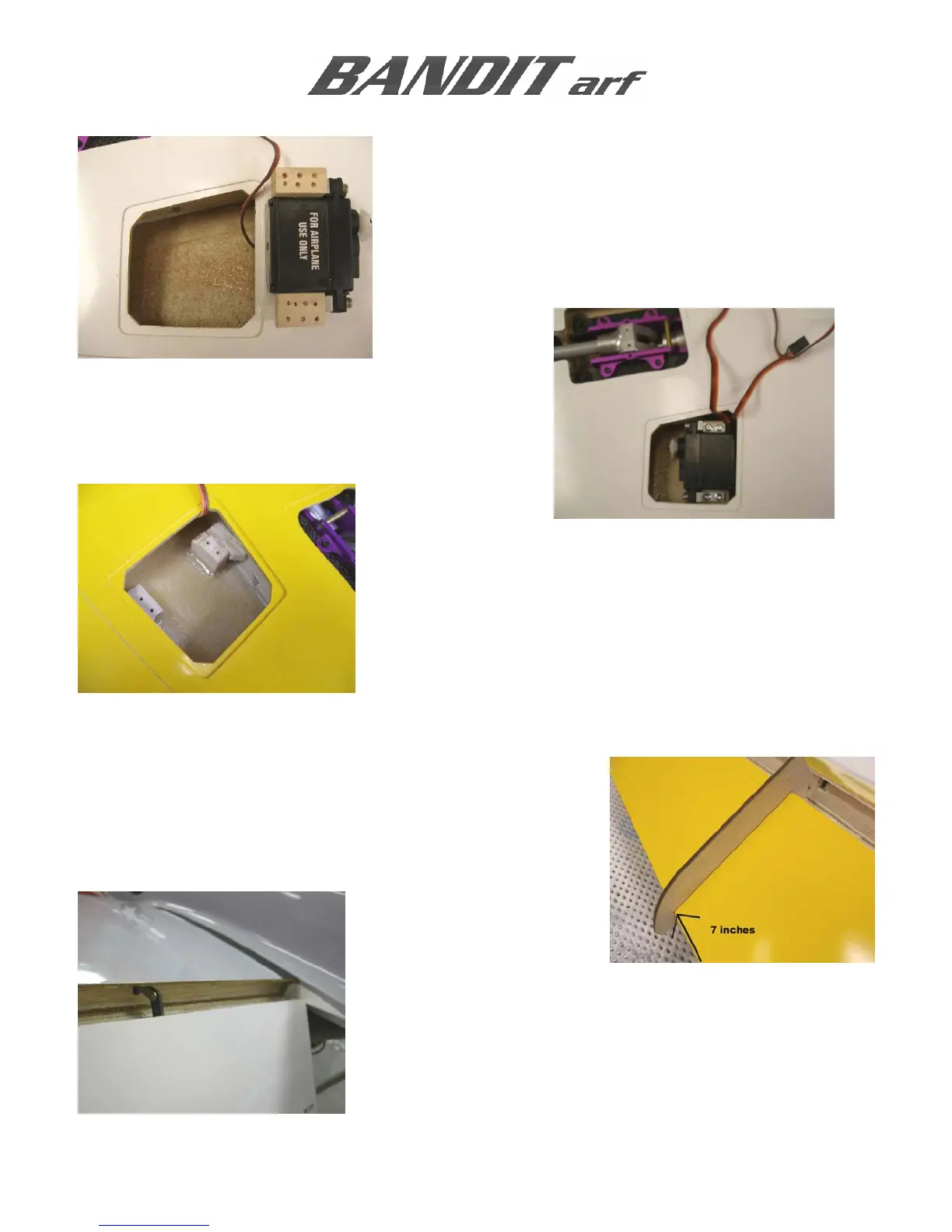

 Apply SLO-ZAP to the maple servo mounting blocks and
hold the servo in place until the glue has cured.
 Align the flap servo in the pocket as shown.
 Remove the servo and use scrap balsa to reinforce the front
maple block. Apply AeroPoxy to create fillets around the
blocks.
FLAP CONTROL HORNS
 Use a 1/16” cutter and a Perma-Grit file to create the pocket for
the control horn at the marked location.
 The rear of the flap horn locator should be positioned 7” out from
the wing root at the trailing edge.
 Use a piece of 1/16” music wire to locate the CF control horn.
The music wire slips though the laser cut hole.
 Use AeroPoxy to hold the control horn in place. A strip of
masking tape can be used to hold the ply locator while glue
cures.
