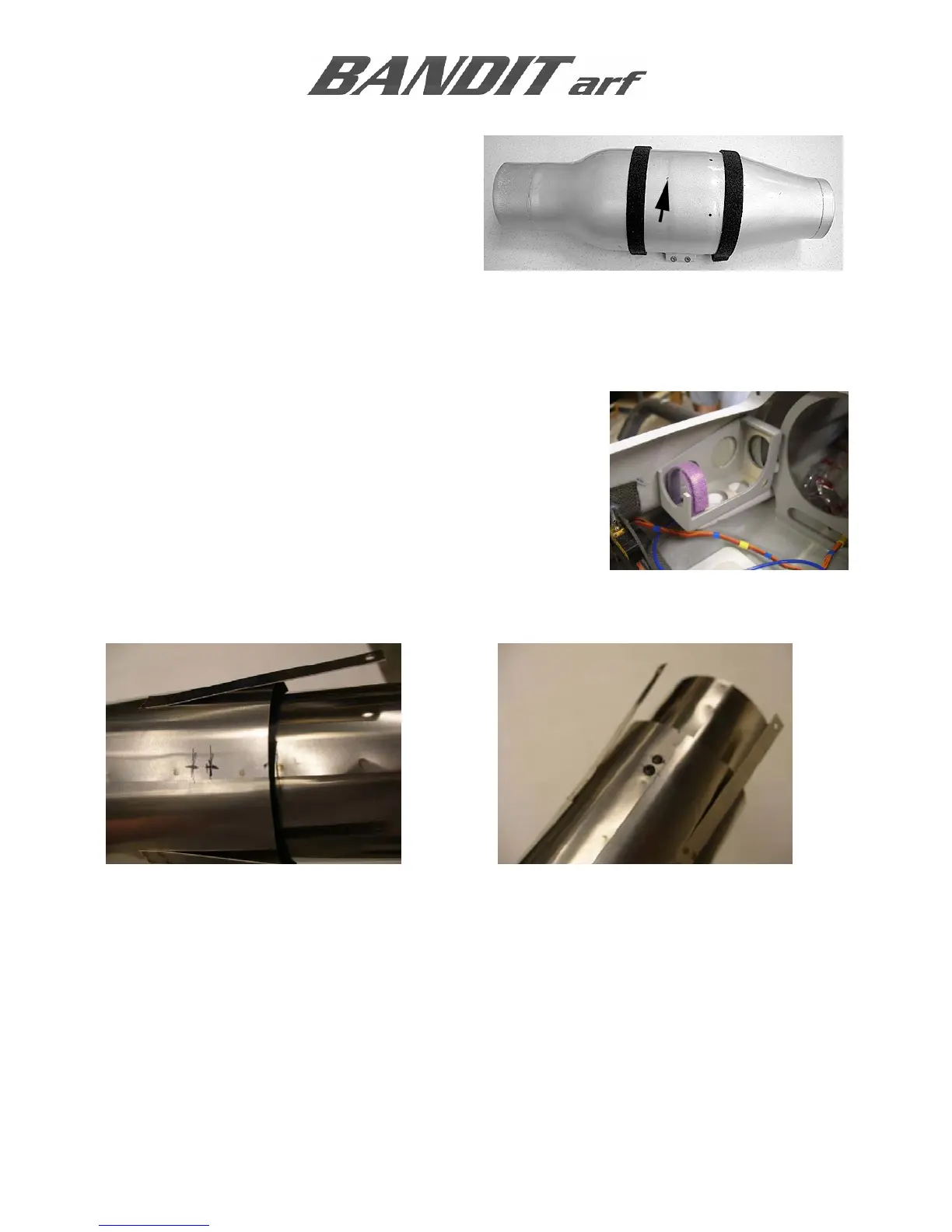

Bypass is shown with the 2” extension (for P-80/P-
120) and Velcro straps screwed to the bottom using
4 #2 BHSMS. Drill a 3/32” drain hole in the bottom
of the bypass.
Finish the Bypass and cover using the following
steps:
o Sand with #80 grit
o Apply pin hole filler (BVM #1925)
o Brush prime with K36
o Sand with #220, spray primer.
o Sand with #400, apply color and clear.
MOUNTING THE UAT
 Assemble the wood UAT mount and install similar.
 Use Velcro strap for easy removal of the UAT.
TAIL PIPE
 The end of the inner pipe should be positioned ¾” in from the end of the outer pipe.
 The distance between the inner pipe and the tail cone of the JetCat P-60 is 1.5”
TAIL PIPE FORMER
 Glue the tail pipe former in place approximately 4” from the end of the rear fuselage. This positions
and holds the outer tube of the tailpipe.
