Assembly & Operation Manual
BVM © 2009 K5300-Current_manual-090808.doc Page 38 12/2/2009

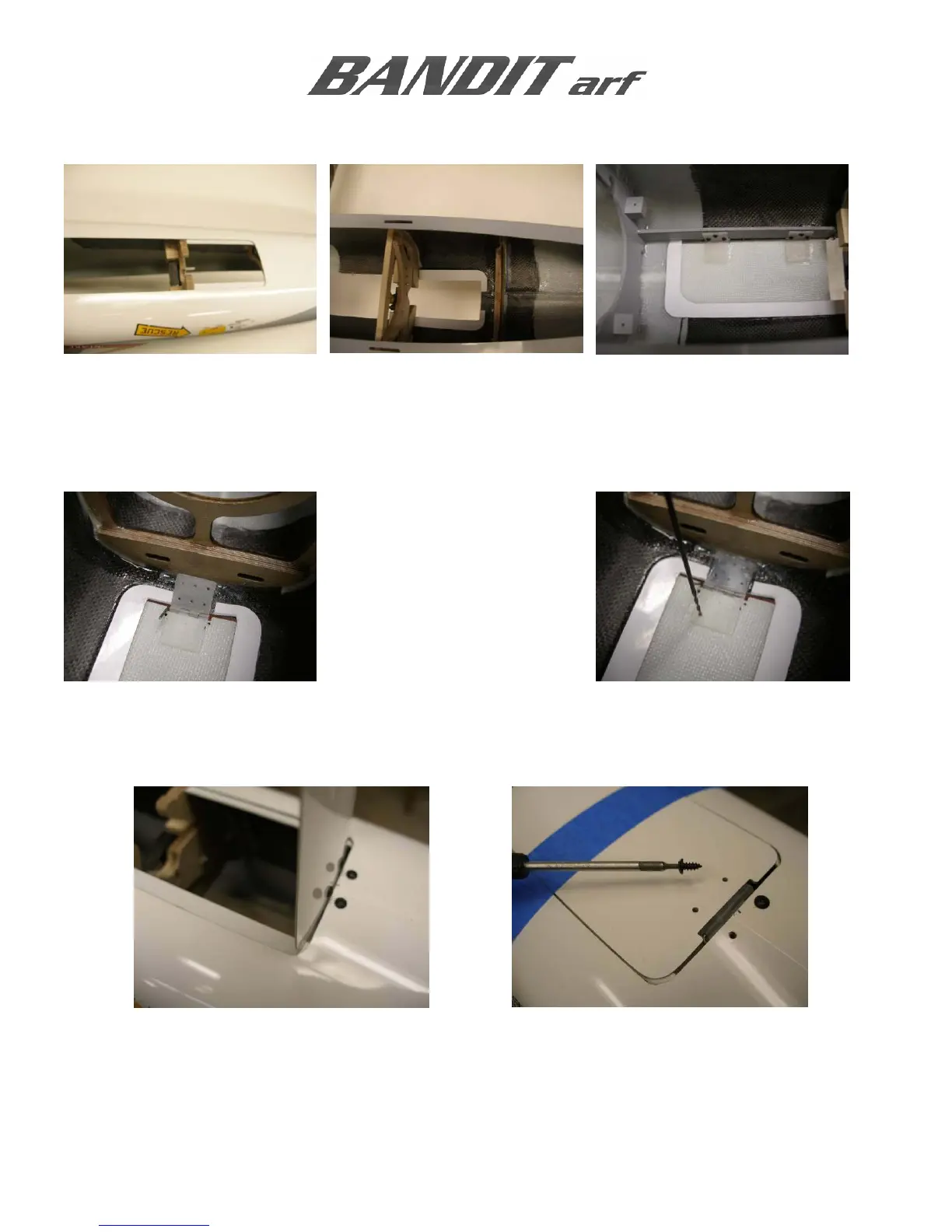

Trim the white ABS plastic as shown to fit the perimeter of the nose gear opening.
Scuff the plastic with #320 grit and glue in place with ZAP-A-GAP.
Tape the front nose gear
door in position.
Apply SLO-ZAP to the hinge
location in the fuselage and
set the nylon hinge in
position to cure.
Check the position and motion of the door then drill and screw the door hinge using #2 x 3/8” button
head screws.
