Technical manuel CARTE ÉLECTRONIQUE A6X ADOUCISSEURS DOMESTIQUES - Rev 3 - 24/10/2016
English
A6X Electronic card for domestic
water softeners
TECHNICAL FEATURES
Power voltage V Hz 230 +10% / -15% 50/60 Hz
Pressure, max. & min. bar 7 - 1,5
Electrical consumption in service VA 6
Electrical consumption in regeneration VA 25
Normally closed solenoid valves VAC 24
Meter imp/L 31
KEYBOARD
Key Name Function
çM
Left / Menu
• Activates the menu with a long push (5 seconds)
• Ongoing setting cancellation without record
ê
Down
• Down move within a list of choices
• Decrease / change of a parameter
é
Up
• Up move within a list of choices
• Increase / change of a parameter
è
Right • Move from left to right digits (example: hours to minutes)
OK
Enter
• Enter into a menu
• Setting validation
• A long push (5 seconds) triggers a manual regeneration.

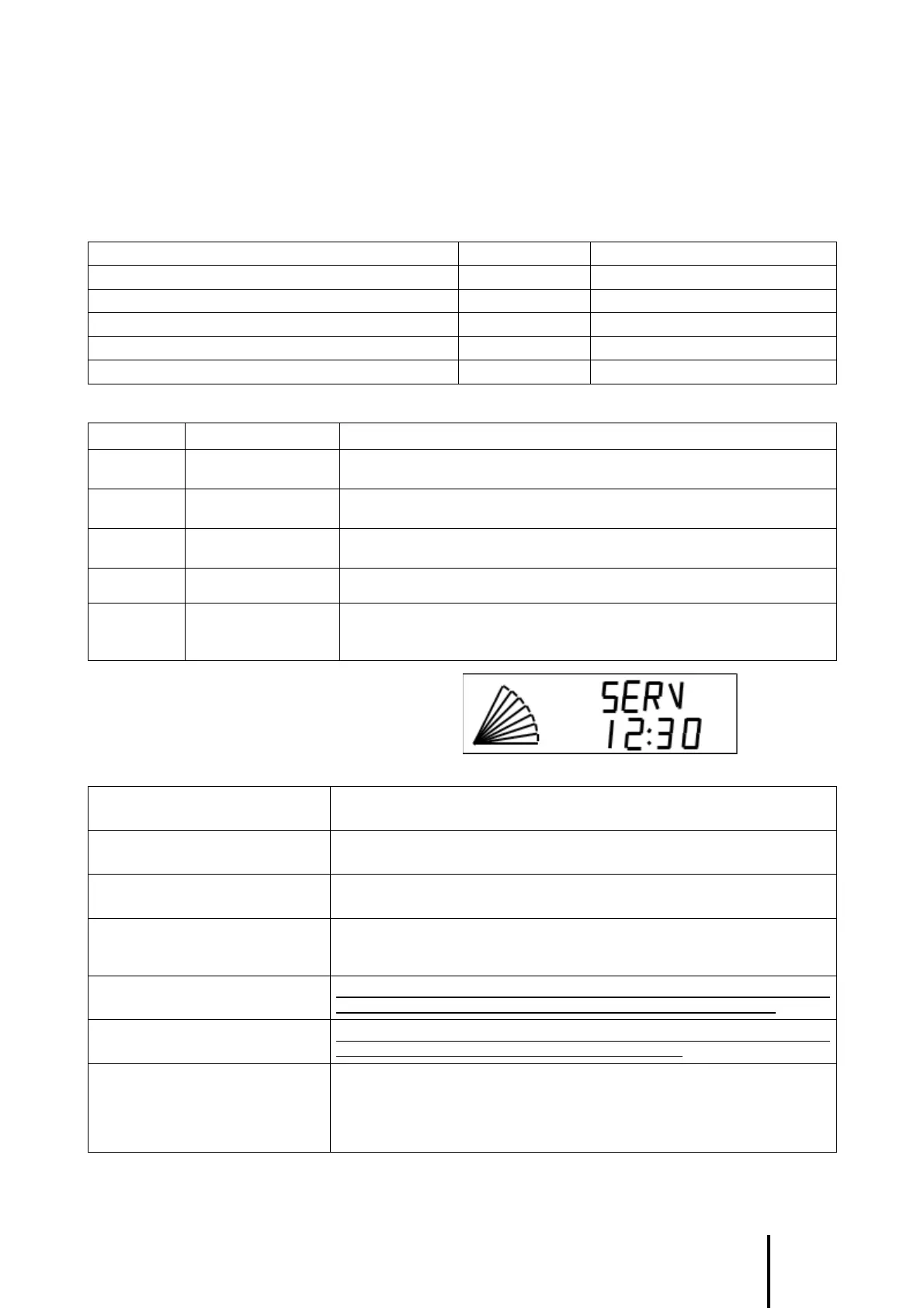

DISPLAY
ΠAn upper information line
• a lower information line
Ž a bargraph with 10 segments, showing the
remaining autonomy of the softener before the next regeneration, by steps of 10%.
RUNNIN
12:30
alternate with
968
12:30
The device is in service: it delivers softened water.
Its treatment autonomy before regeneration is here 968 liters.
REFILL
0315
In case of proportional regeneration, water is being poured into the salt
tank, it will end here in 315 seconds.
BRINE
0180
The brine is under preparation in the salt tank, it will end here in 180
minutes.
REGE 1
00:45
The softener is going through its fi rst active regeneration step (backwash),
which will end here in 0 minutes and 45 seconds.
will end here in 0 minutes and 45 seconds.
REGE 2
18:35
The softener is going through its second active regeneration step (brining
& slow rinse) which will end here in 18 minutes and 35 seconds.
REGE 3
02:15
The softener is going through its third active regeneration step (fi nal rinse),
which will end here in 02 minutes and 15 seconds.
CHECK
alternate with
SALT
The softener detects a lack of salt. To acknowledge the alarm, proceed
with a long push (5 seconds) on the M key. Then briefl y push the M key
to display CHECK / SALT (alternate).
Push once on ↓ or↑ key to make appear OFF and push OK to confi rm.
Push M during 5 seconds to quit the menu.
MANUAL REGENERATION
Trigger the regeneration of the softener by a long push (5 seconds) on the OK key.
It is possible to manually go from one step to the next by briefl y pushing the OK key. on the OK key.
Œ
•
Ž
