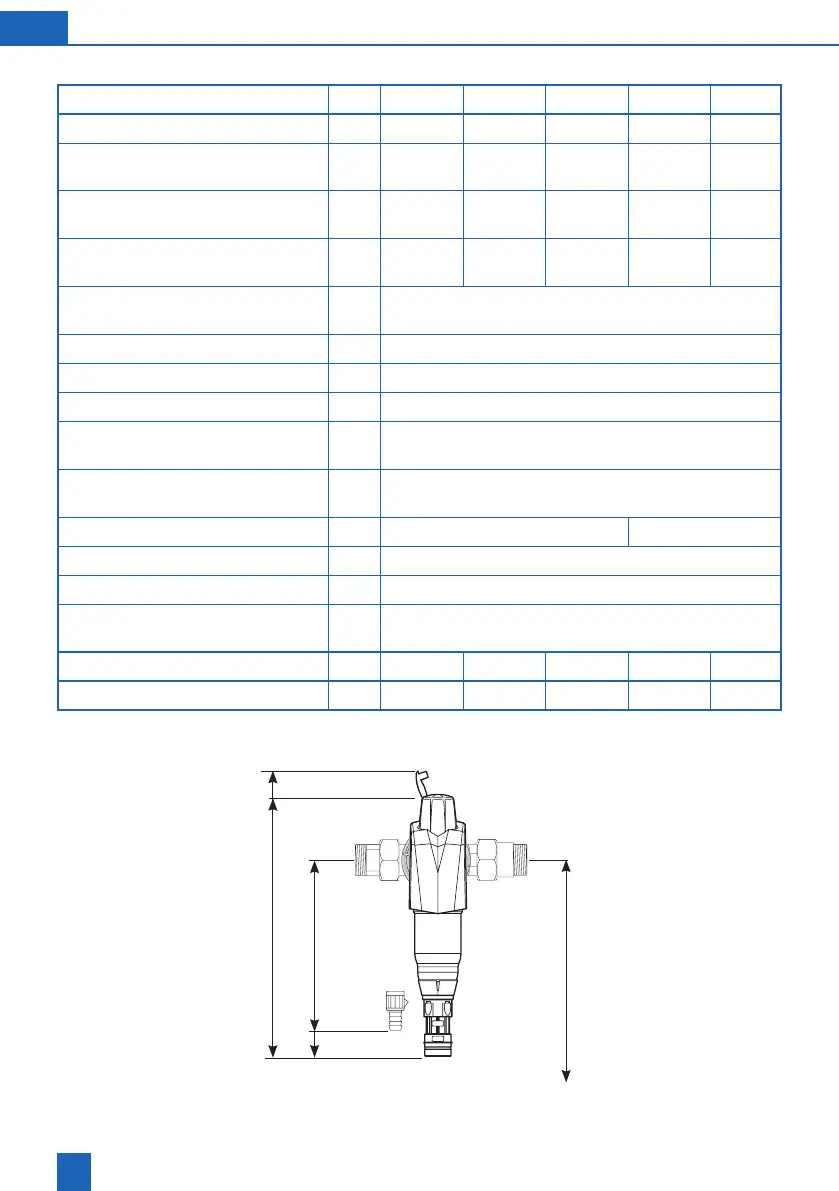

BWT Infinity M - Technical Data; Filter Specifications and Performance Data

24
EN
 
InnityMbackwashlter 
    2"
Nominal connection width DN 20 25 32 40 50
Flow capacity at
∆p=0.2barRFacc.toEN13443-1
m
3
/h 3.5 4.5 5.5 10 10
Flow capacity at
∆p=0.5barRFacc.toEN13443-1
m
3
/h 6.0 6.5 9.0 15.5 15.5
Flow capacity HWS
acc. to EN 1567
m
3
/h 3.5 4.5 5.5 10 10
Outletpressureafter
pressure reducer
bar 2 - 6
Filterwidth,ower/upper µm 90/110
Nominalpressure(PN) bar 16
Operatingpressure,min./max. bar 2/16
Recommended operating pressure
min./max.
bar 2/8
Water-/ambienttemperature
min./max.
°C 5-30/5-40
Connectiontype Hydro-Modul connection Four-holeange
Totalheight/withcrank A mm 500/550
Height/withhoseconnection B mm 360/345
Minimumdistancepipe C
centretooor
mm 670
 PNR 6-081234 6-081235 6-081236 6-081237 6-081238
 PNR 6-086216 6-086217 6-086218 6-086219 6-086220
C
B
A
