20-Button Landscape (Horizontal) Keypad Bezel (cont’d)
20-Button Keypad Bezel Specifications
Part Number:
EA-MG6-BZ2
General:
• Micro-Graphic
Panels Supported
EA-S6ML, EA-S6MLW
• Connection
Connects with expansion connector on the rear of the
C-more
6” Micro-Graphic panel.
• Power Consumption
None
• Keypad Button Life
Minimum of 500,000 cycles
• Enclosure Mounting
(8) mounting clips, EA-MG-BZ2-BRK, included.
Note: The
C-more
6” Micro-Graphic panel is installed into the keypad bezel using the
(4) mounting clips, EA-MG-BZ2-BRK, that are supplied with the panel.
Environmental:
• Operating Temperature
0 to 50 °C (32 to 122 °F)
• Storage Temperature
-20 to 60 °C (-4 to 140 °F)
• Humidity
5 to 95 % RH (non-condensing)
• Environmental air
No corrosive gases permitted
• Vibration
IEC60068-2-6 (Test Fc), 5-9 Hz: 3.5 mm amplitude, 9-150 Hz: 1.0G, sweeping, at a rate of
1 octave/min. (±10%), 10 sweep cycles per axis on each of 3 mutually perpendicular axes
• Shock
IEC60068-2-27 (Test Ea), 15 G peak, 11 ms duration, three shocks in each direction
per axis, on 3 mutually perpendicular axes (total of 18 shocks)
• Noise Immunity
NEMA ICS3-304
RFI, (145 MHz, 440 Mhz 10 W @ 10 cm)
Impulse 1000 V @ 1 µs pulse
• Enclosure
NEMA 4/4X, IP-65 (When mounted correctly, for indoor use only.)
• Agency Approvals
CE (EN61131-2), UL508, CUL Canadian C22.2 No. 142-M95, UL File E157382
Physical:
• Dimensions
10.000” (W) x 6.394” (H) x 2.488” (D)
[254.0 mm x 162.4 mm x 63 2 mm]
• Weight
26.1 oz. [740 g]
20-Button Keypad Bezel continued at top of next page.

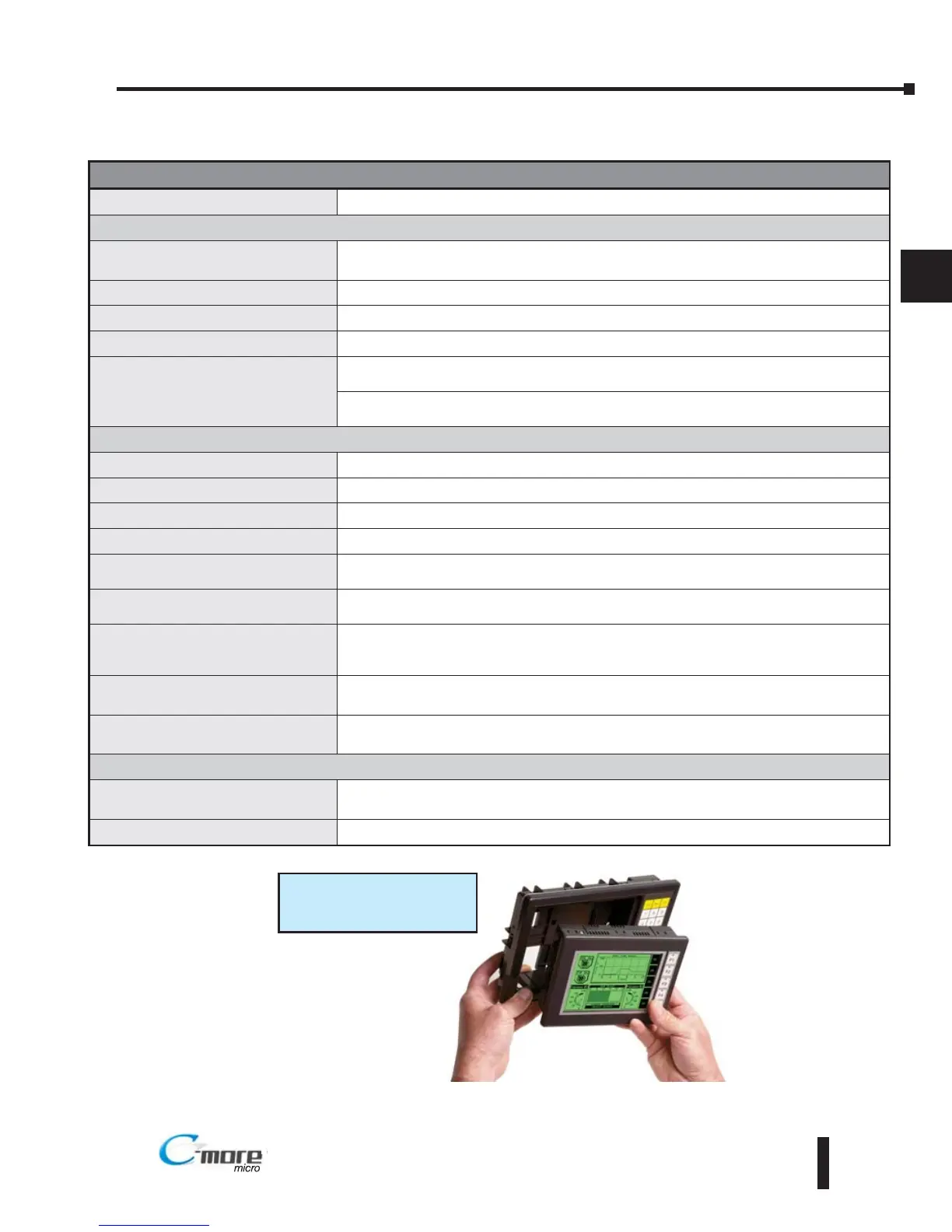

C-more 6” Micro Graphic Panel
being installed in a 20 button
Keypad bezel EA-MG6-BZ2
