C-more micro EA1-S6ML User Manual

20-Button Horizontal (Landscape) Keypad Bezel (cont’d)
3–10
Chapter 3: Accessories
3
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
C-more 6 Inch
Micro-Graphic Panel
20 Button
Keypad Bezel
EA MG6 BZ2
1. Remove
Expansion
Connector
Protective
Cover from
rear of
panel.
2. Use the (4) Panel Mounting
Clips, EA MG BZ2 BRK,
that are supplied with the
panel, to secure panel to
keypad bezel and compress
the gasket between the
panel and the keypad bezel.
Tighten screws to a torque
of 21 28 oz in [0.15 0.2 Nm].
3. Use (8) Bezel Mounting Clips,
EA MG BZ2 BRK, to secure keypad
bezel through enclosure cutout.
Tighten screws to a torque of
21 28 oz in [0.15 0.2 Nm].
Function
Key Label
Insert
4. Peel Protective Film
from front of panel.

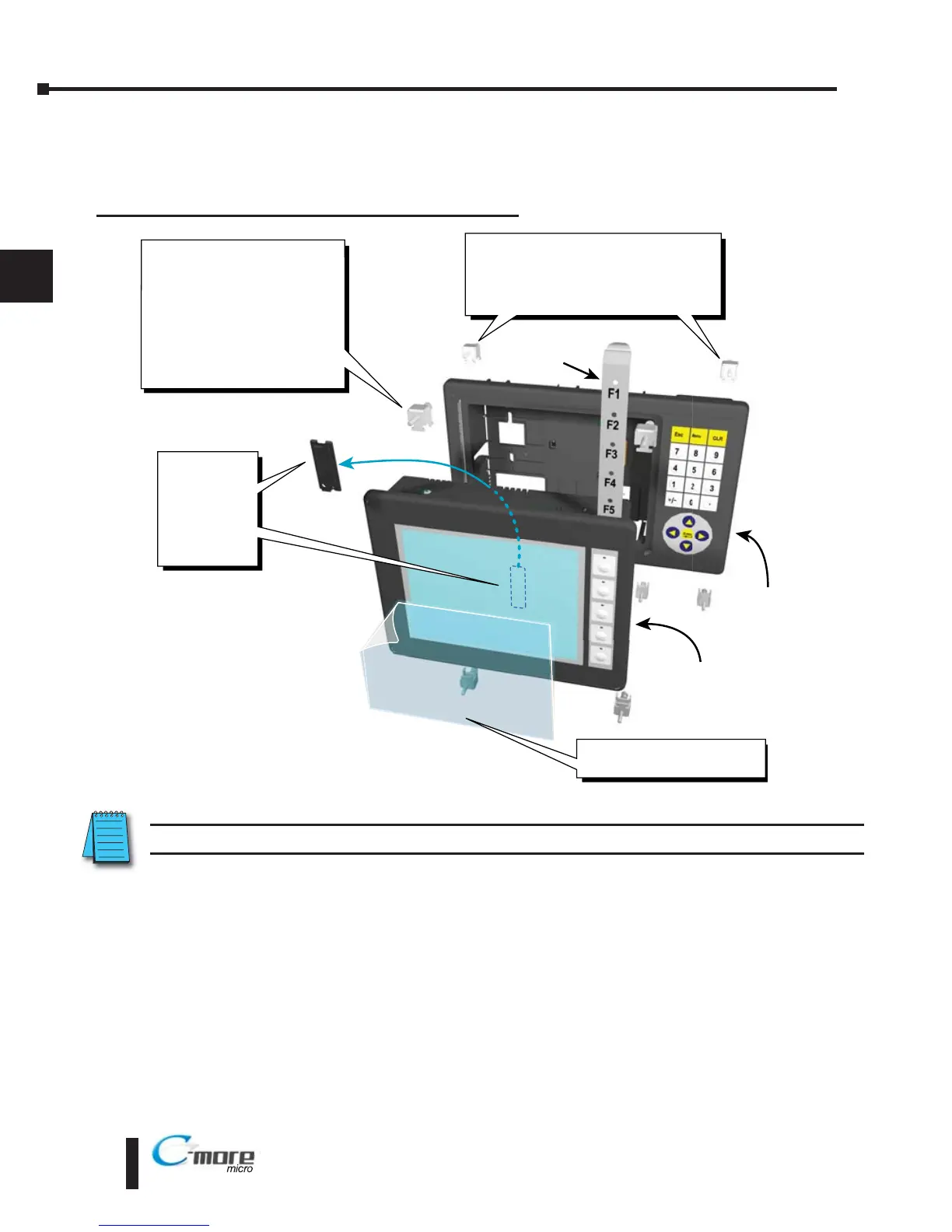

Panel and 20-Button Keypad Bezel Assembly
NOTE: Mounting clips for the panel and keypad bezels are included with the respective product.
