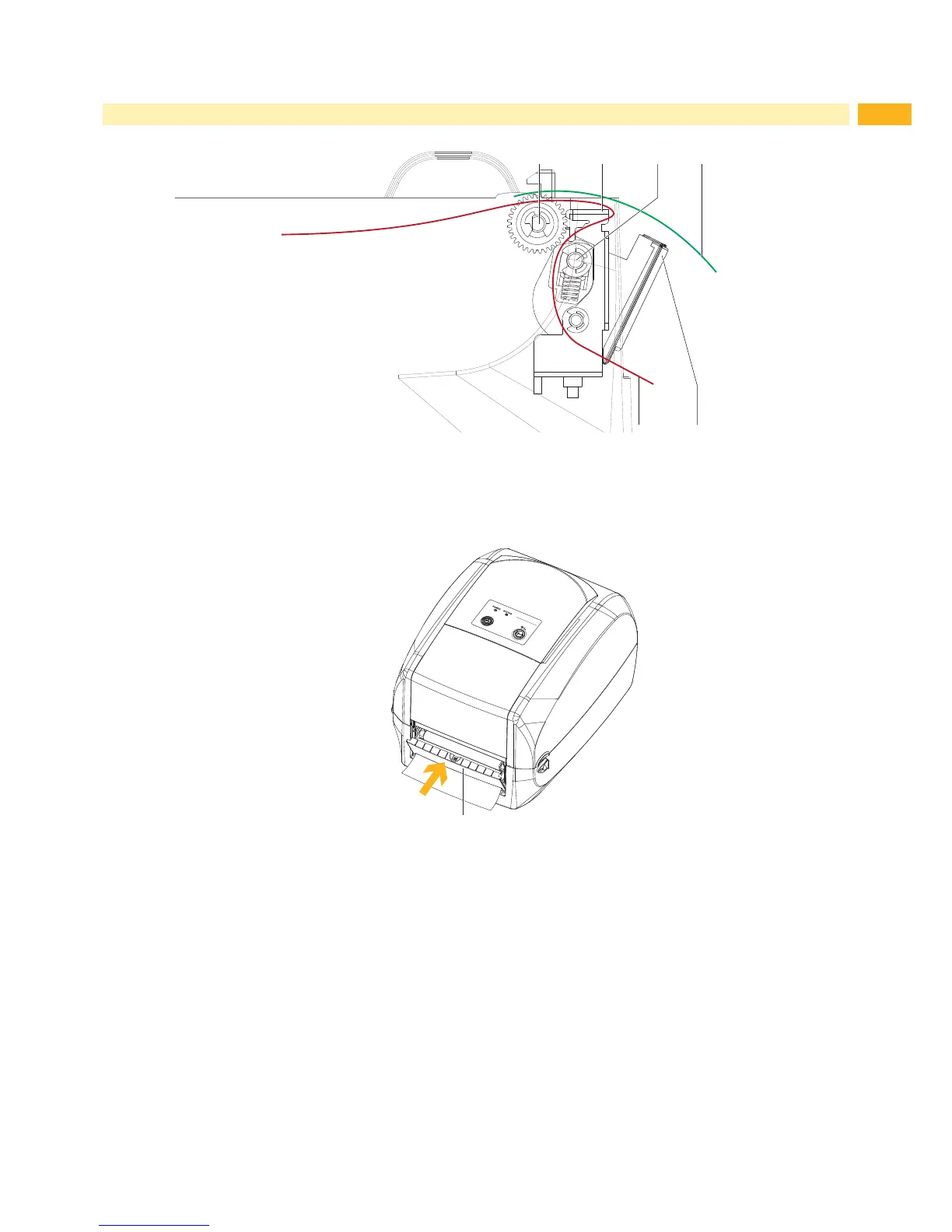

Fig. 32 Feeding path of label and liner
6. Push the label liner (11) forwards until it appears at the underside of the Present Sensor.
7. Detach two test labels (10), and feed them over the cover (4) with the paper sensor (1).
4
Fig. 33 Closing the cover
8. Release catch for closing the printer cover and close the printer.
9. Close the cover (4) of the Present Sensor.
