8 Accessories
5 6
5

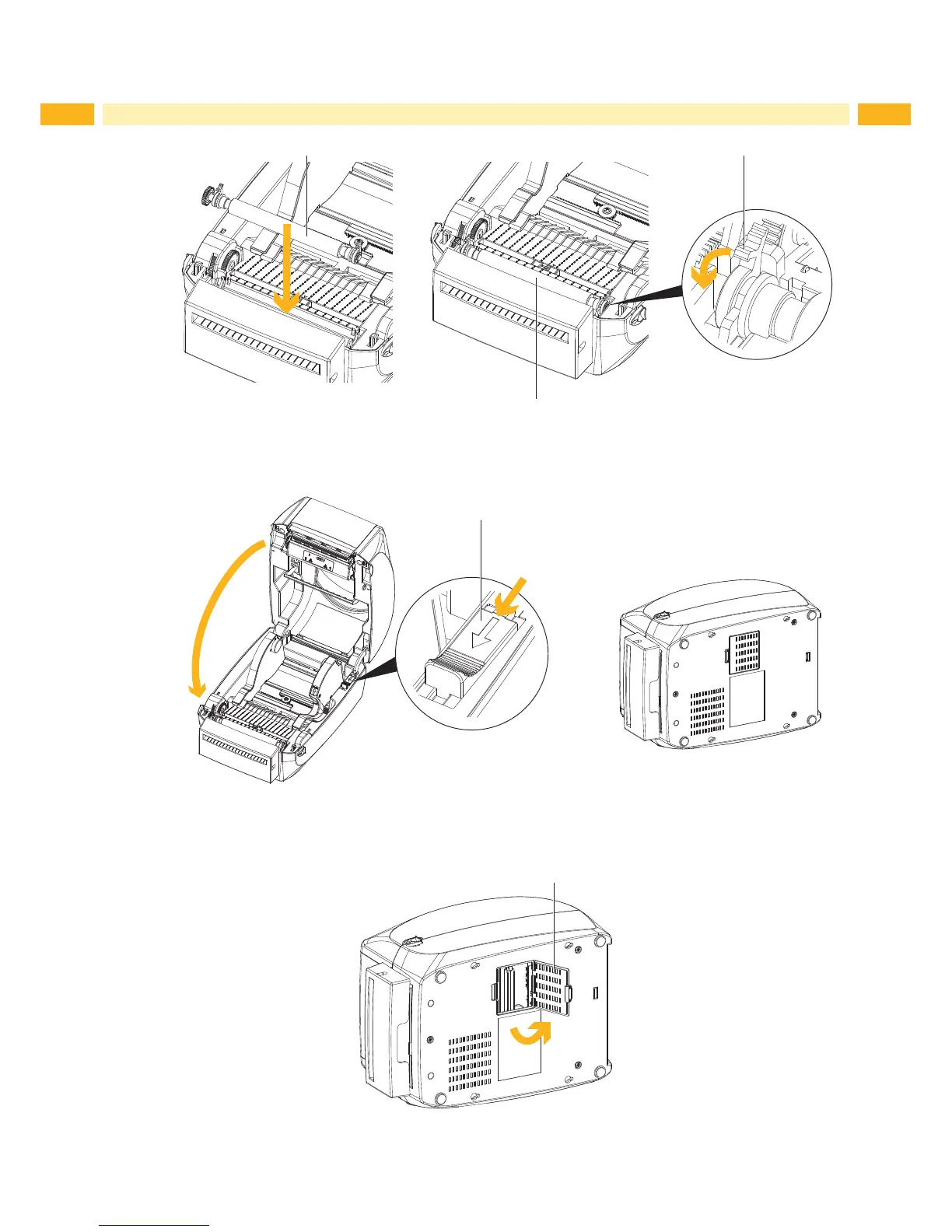

Fig. 37 Place the platen
4. Place the platen (5) back to the printer.
5. Lock the platen (5) with the clips (6) on both sides.
7
Fig. 38 Closing the and turning printer
6. Release catch for closing the printer cover (7) and close the printer.
7. Turn the printer upside down.
8
Fig. 39 Open the cover of module connection jacks
8. Open the cover of module connection jacks (8) on the bottom of printer.
